Small Scale Water Desalination Solution for Salt Borehole Water

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HYRO-1000L

Capacity

10m3 to 50m3/Hr

Incoming Water

Salt Borehole Seawater

Untreated Water

for Drinking or Irrigation

Flow Rate

Can Customized

Specification

L7 XW1.2XH2.2

HS Code

842121

Product Description

Product Name: Small Scale Water Desalination Solution for Salt Borehole Water

Description: This small scale water desalination system is designed to efficiently desalinate salt borehole water at home. It provides a reliable and cost-effective solution for residential use, ensuring clean and safe water for your household.

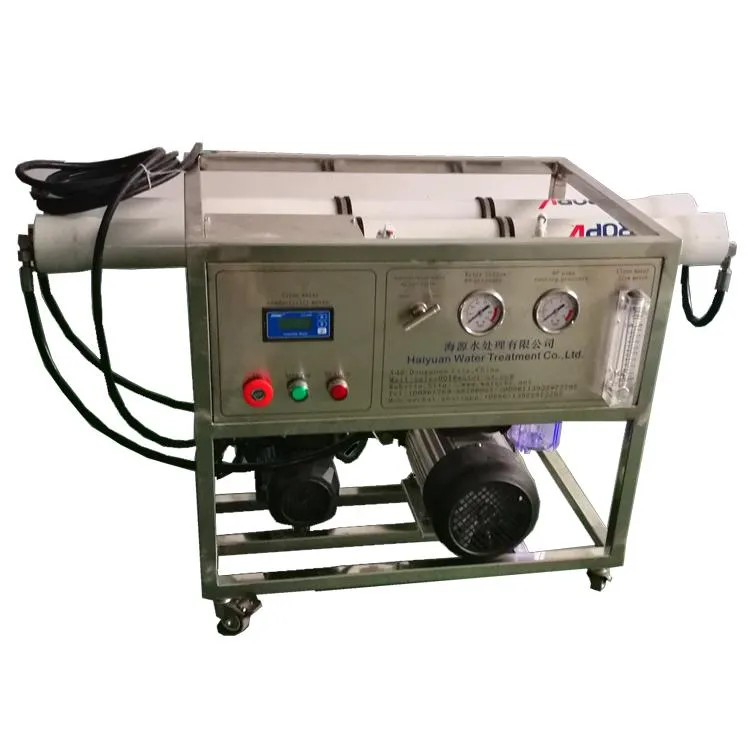

HY Series Portable Seawater Desalination Machine

The HY Series Portable Seawater Desalination Machine offers a modern design and high integration, making it an ideal choice for those in need of portable desalination.

🚀 Features:

Compact size: 64cm L * 50cm W * 50cm H, lightweight (60-80 KG).
Easy operation: Connect to water and power for immediate use.
Versatile power: AC power, gasoline/diesel generators, solar, or wind.

💎 Benefits:

High Portability for remote locations or emergencies.
Hassle-free experience with matching accessories.
Energy efficiency via renewable energy source compatibility.

HY-SWRO-25L/hr (500L/D) Technical Parameters
Flow rate	500LPD	Recovery rate	4%
Voltage	220V, 50Hz 1 phase	Power	1.9KW
Feed water TDS	< 40000ppm	Output water TDS	< 600ppm
Working pressure	< 1000psi	Working temperature	10-45ºC
Feed water turbidity	< 1	Feed water PH	3~10
RO membrane housing	2521 1 piece	RO membrane	1 piece
Specification	640500500(mm)	Net weight	About 60Kg

Advantages & Characteristics

Discover an efficient system perfect for home use, providing a reliable and sustainable way to desalinate seawater and salt borehole water. With solar-powered technology integration, you can enjoy clean and fresh water throughout your entire house.

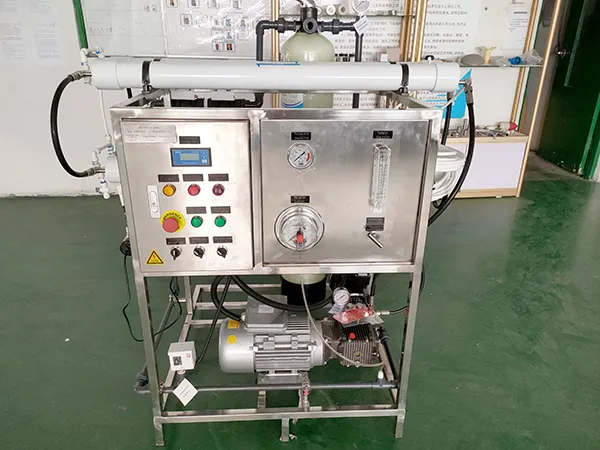

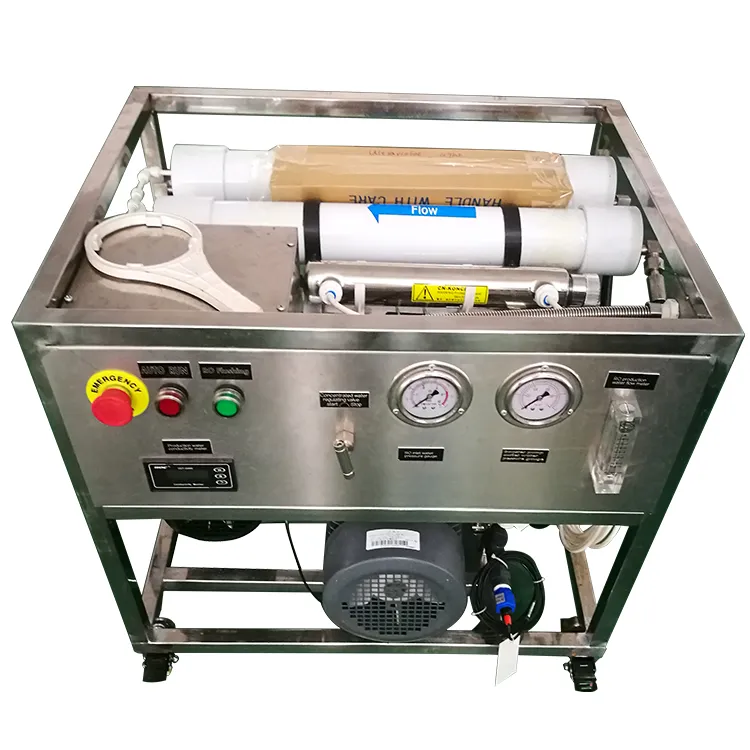

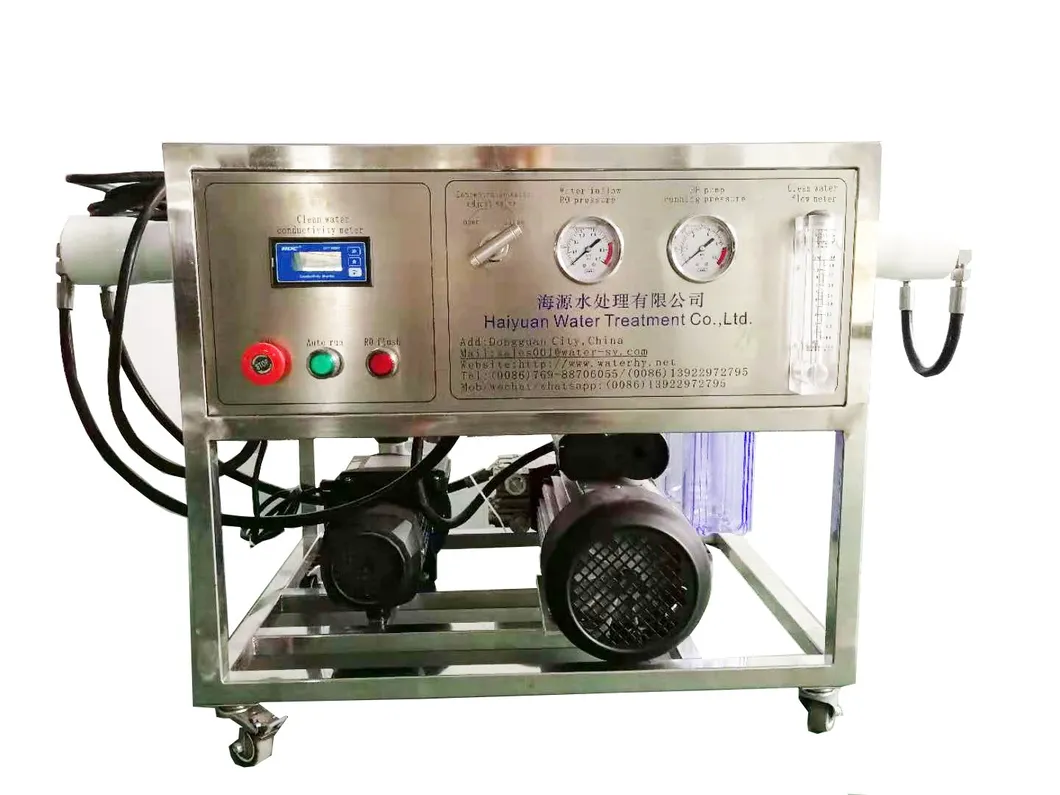

System Control & Components

Emergency Stop Button: Immediately cuts off all power for safety.
Auto Running Button: Simple one-touch automated operation.
On-line Conductivity Meter: Real-time monitoring of output water quality.
Auto Cleaning Button: Simplifies maintenance and keeps system efficient.
Stainless Steel Frame: Fully polished, durable, and corrosion-resistant.

Professional Filtration Technology

The system features a professional electric cabinet with water-power separation, ensuring stability and safety. Key components include:

UV Sterilizer: US brand HANOVIA (254NM) to avoid secondary pollution.
Coconut Activated Carbon: Removes odors and improves taste.
DOW RO Membrane: US imported membrane with >98% salt rejection and 0.0001-micron precision.
Multi-stage Pre-filters: 5-micron PP filter followed by a 1-micron pleated filter to protect the RO membrane.
High-Pressure Pump: German brand SS316L material for maximum corrosion resistance.

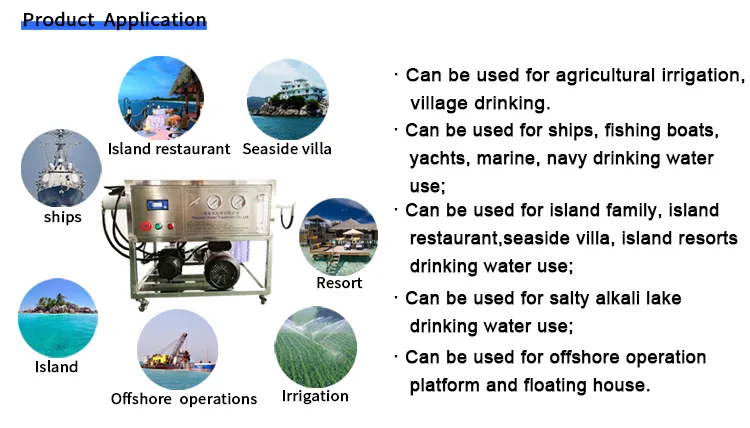

Applications & Logistics

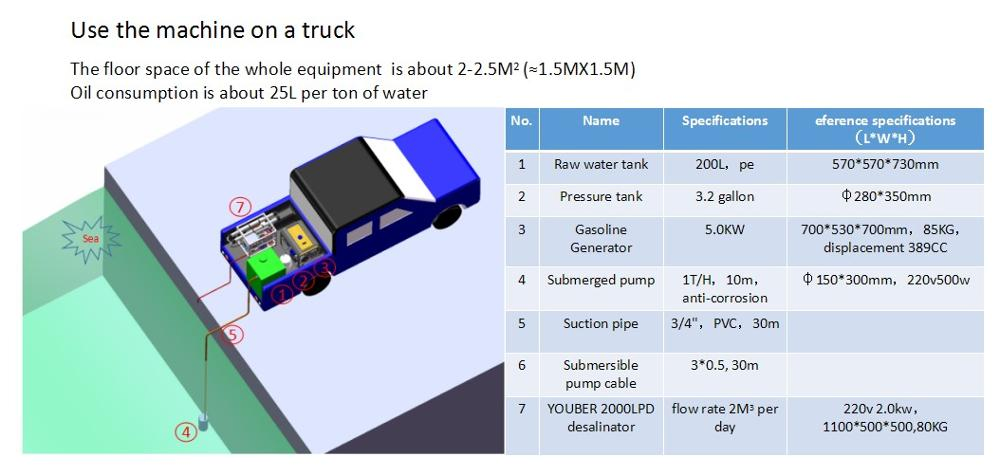

Perfect for indoor use in homes, seaside hotels, and even portable enough for mobile trucks. This system effectively desalinates salt borehole water for domestic needs.

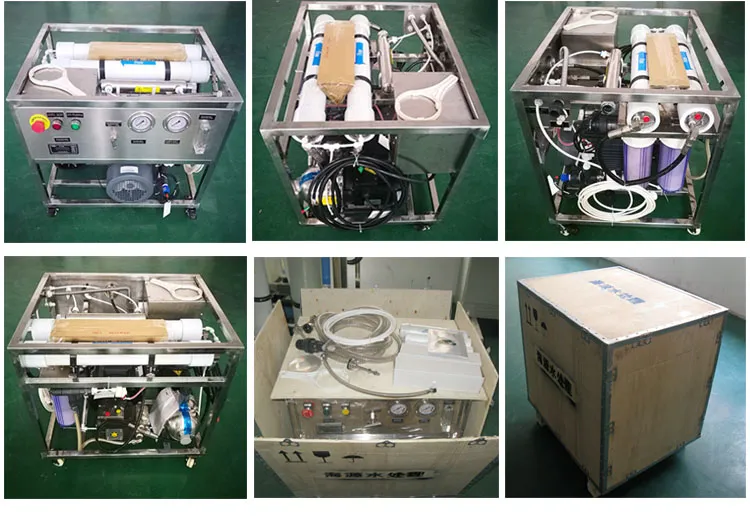

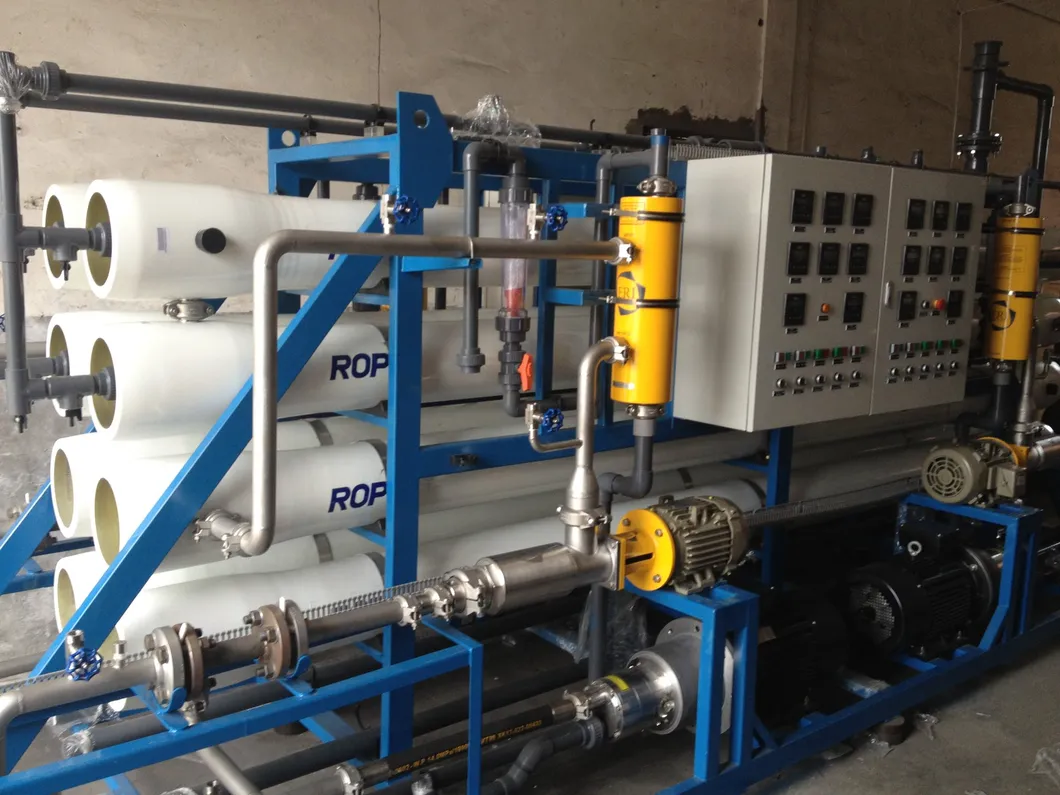

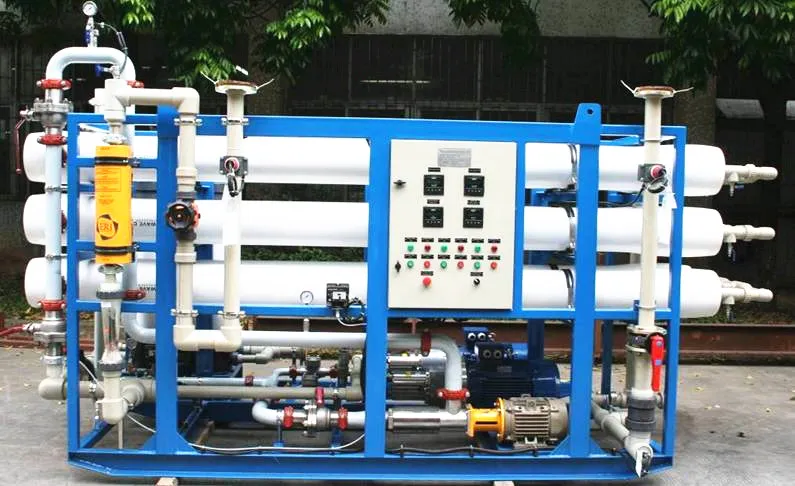

Packaging & Shipping

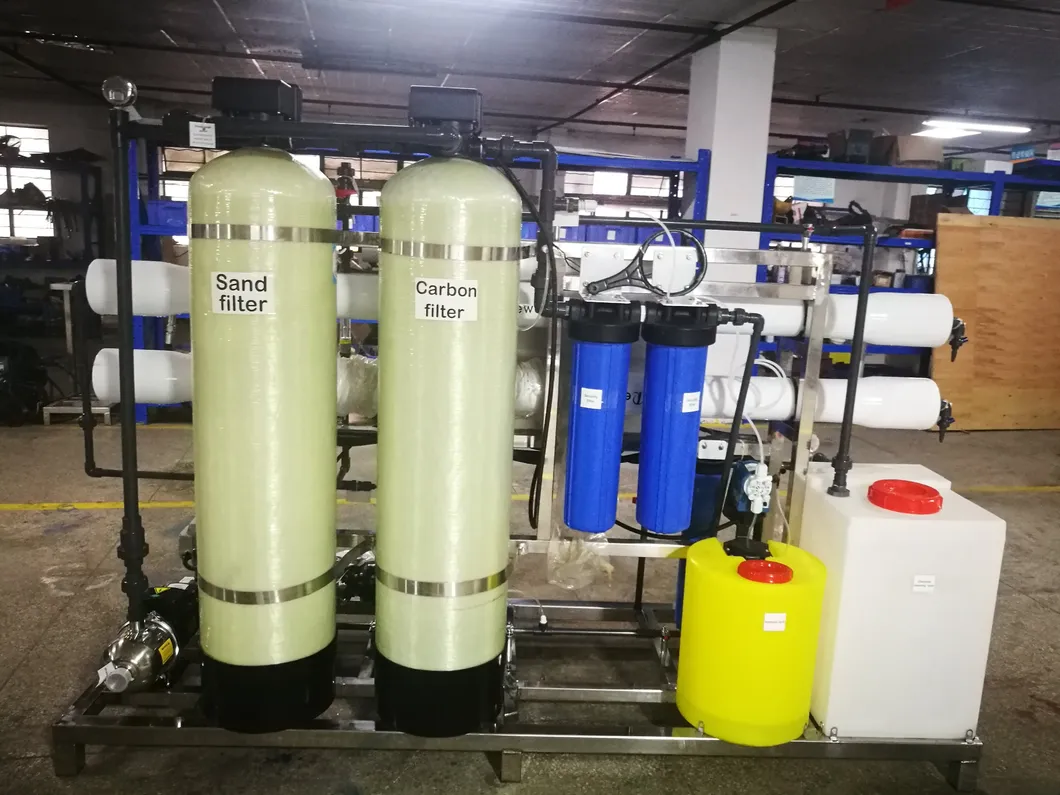

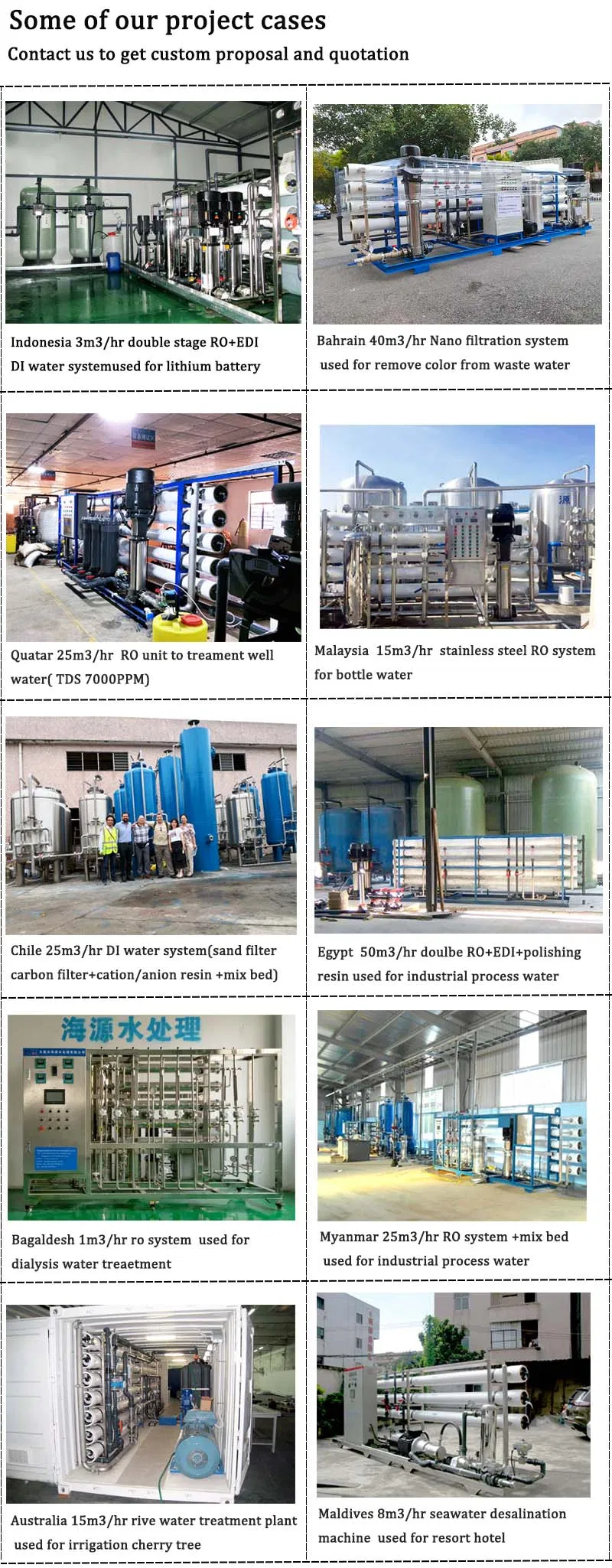

Exhibition & Global Cases

Why Choose Our Solutions

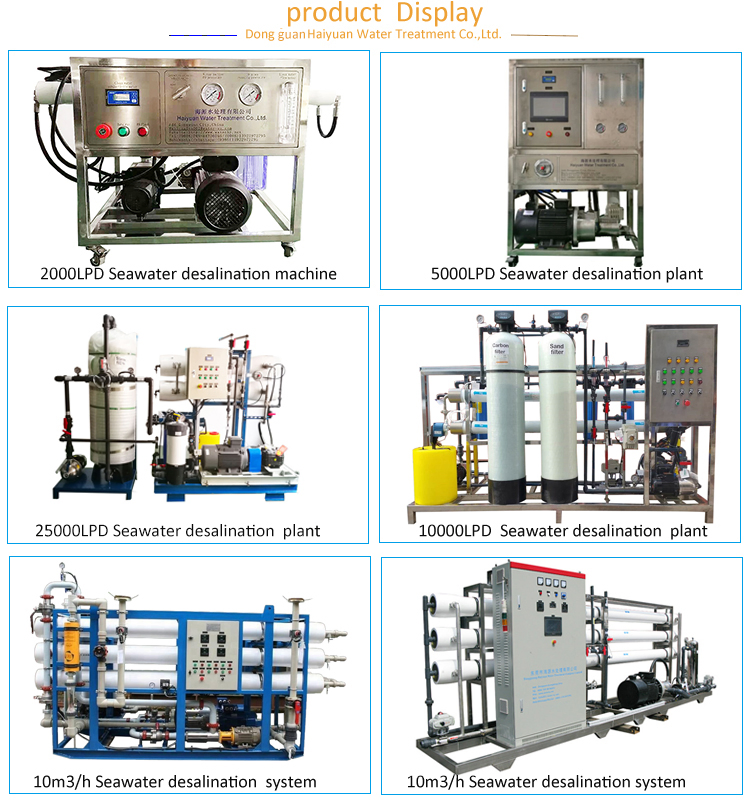

Flexible Flow Rates: Available from 500L/day to 10,000L/hour.
Power Flexibility: Compatible with solar power, gasoline, or diesel generators.
Customization: Tailored designs for truck trailers or specific residential requirements.
Reliable Technology: Uses advanced reverse osmosis for fresh drinking water.

Frequently Asked Questions

1. Can this system handle high salinity borehole water? Yes, the system is specifically designed for salt borehole water and seawater with a feed water TDS capacity of up to 40,000ppm.

2. Is the output water safe for direct drinking? Absolutely. With a 0.0001-micron filtration precision and UV sterilization, the output water meets international drinking water standards.

3. Can I use solar power to run the desalination machine? Yes, the HY Series is designed to be versatile and can be connected to solar and wind energy sources, making it ideal for off-grid locations.

4. How difficult is it to operate the machine? The system is designed for ease of use with "One-Button" automatic operation and cleaning features. No specialized technical knowledge is required for daily use.

5. What is the portability of the system? The compact unit weighs between 60-80 KG and features universal wheels, allowing it to be moved easily or installed in mobile units like trucks and boats.

6. How often do the filters need to be cleaned? The system includes an auto-cleaning button to maintain efficiency. Pre-filters should be checked periodically depending on the quality of your raw water source.
