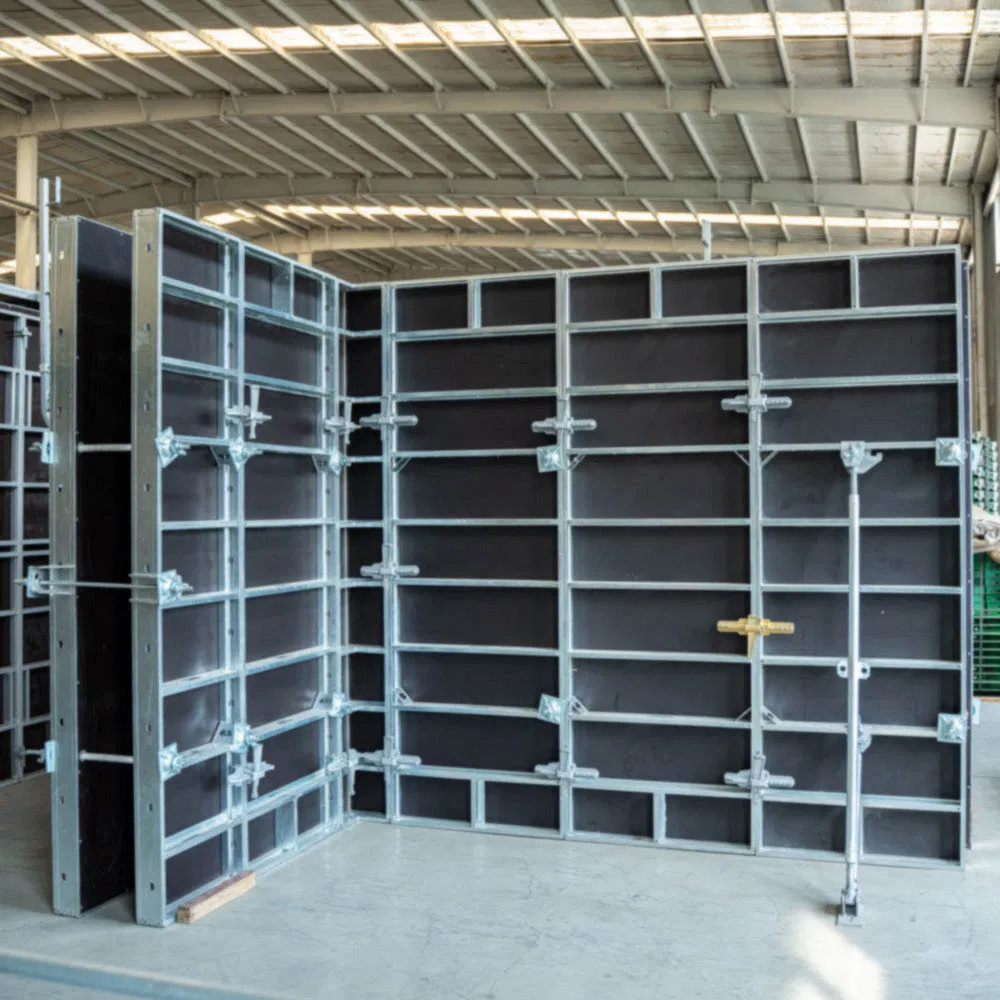

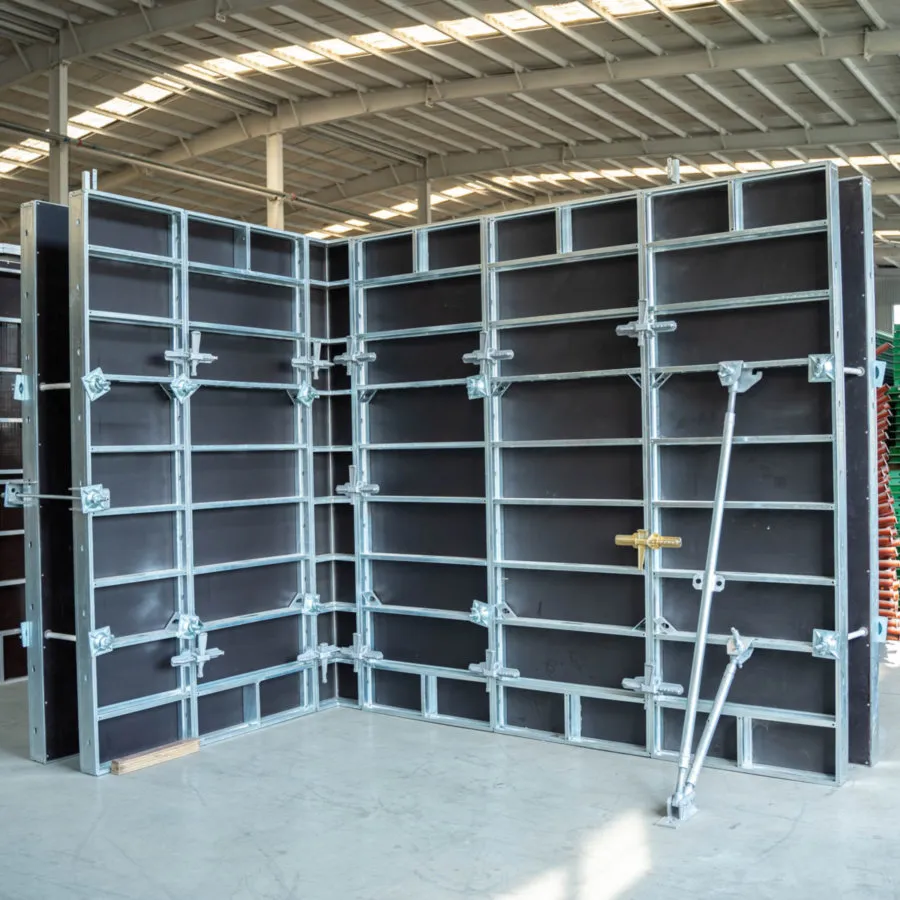

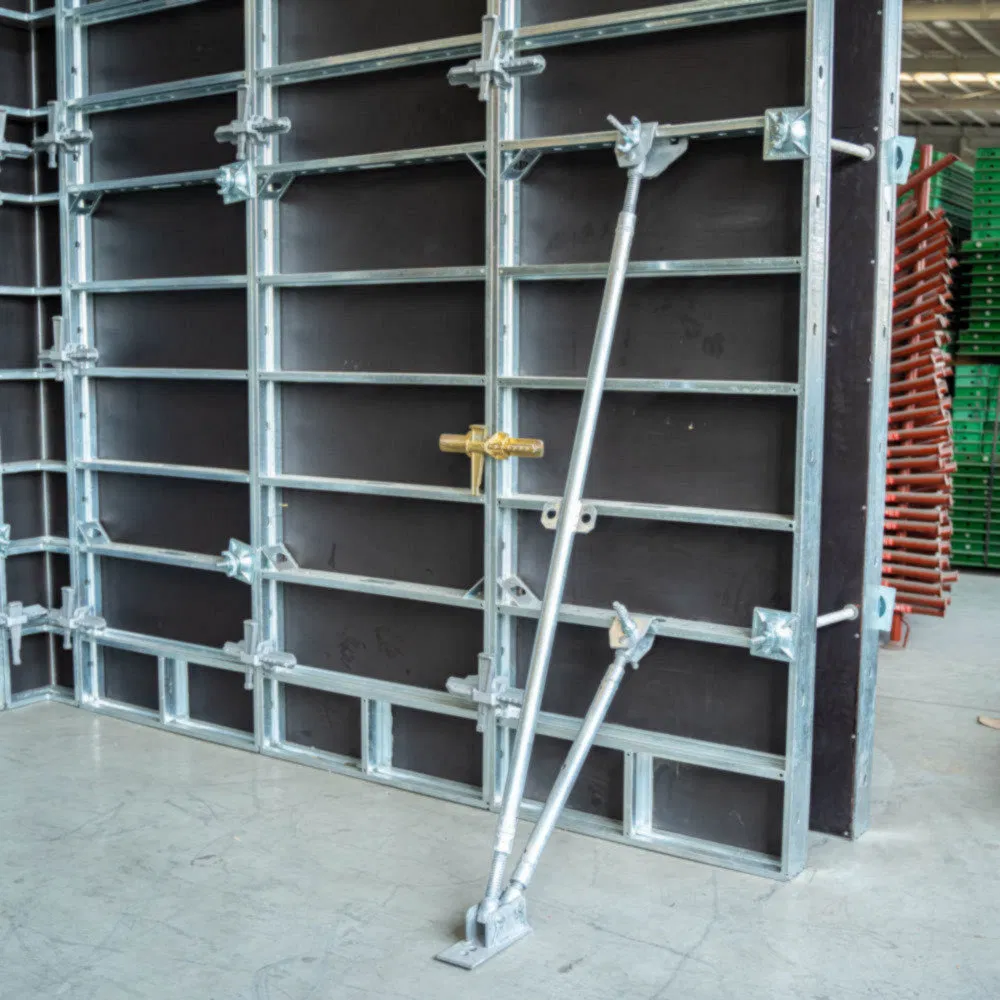

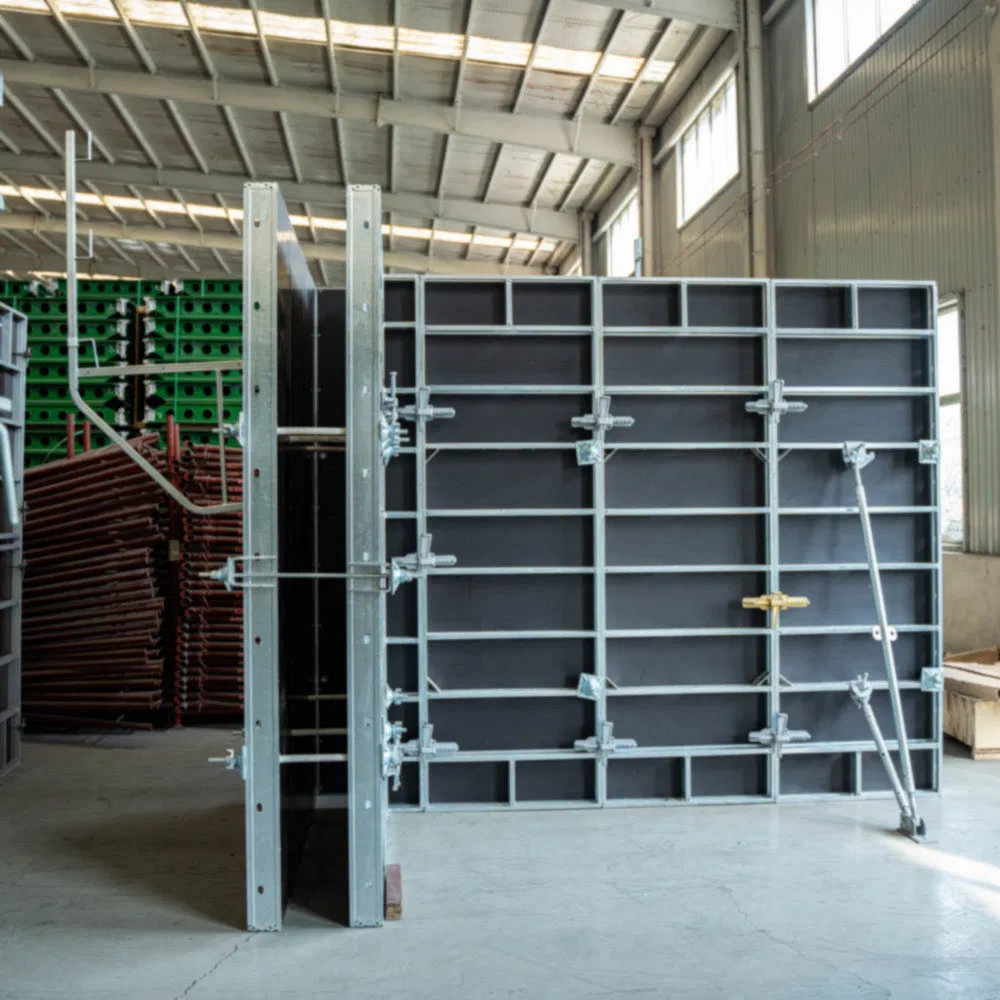

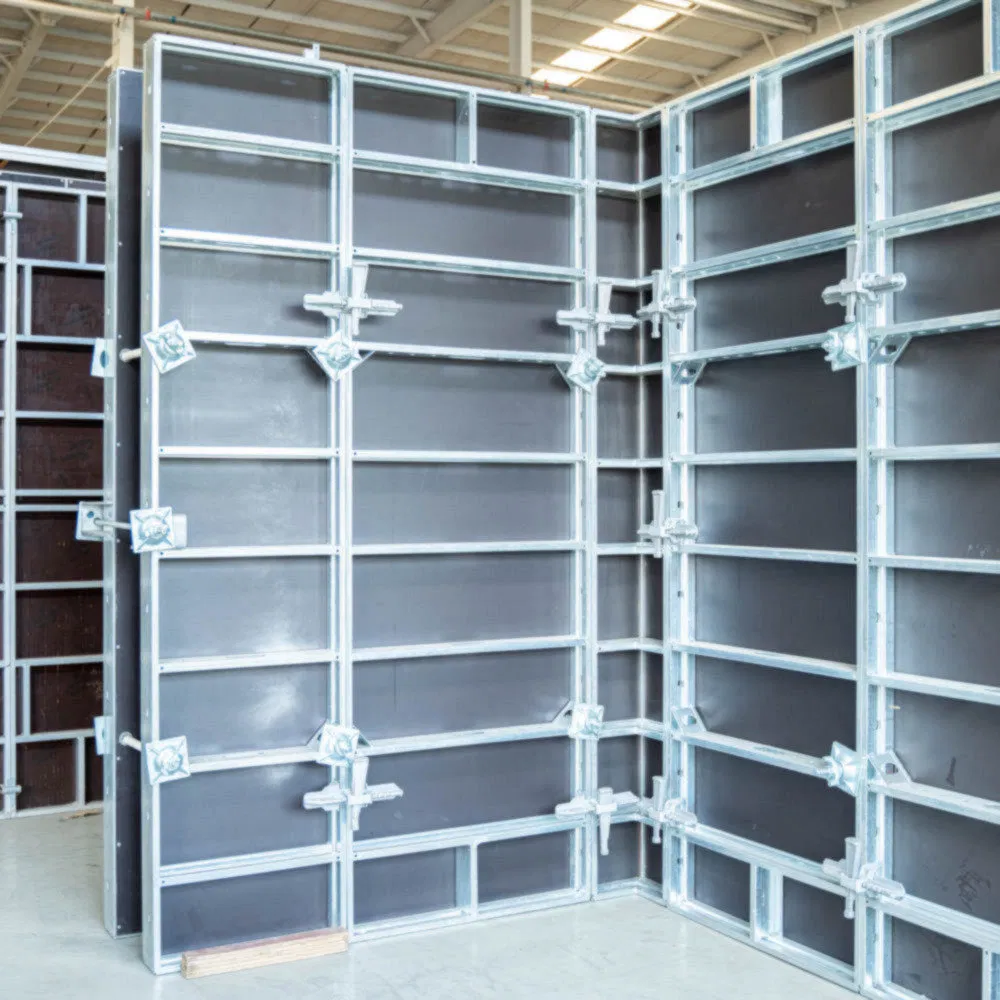

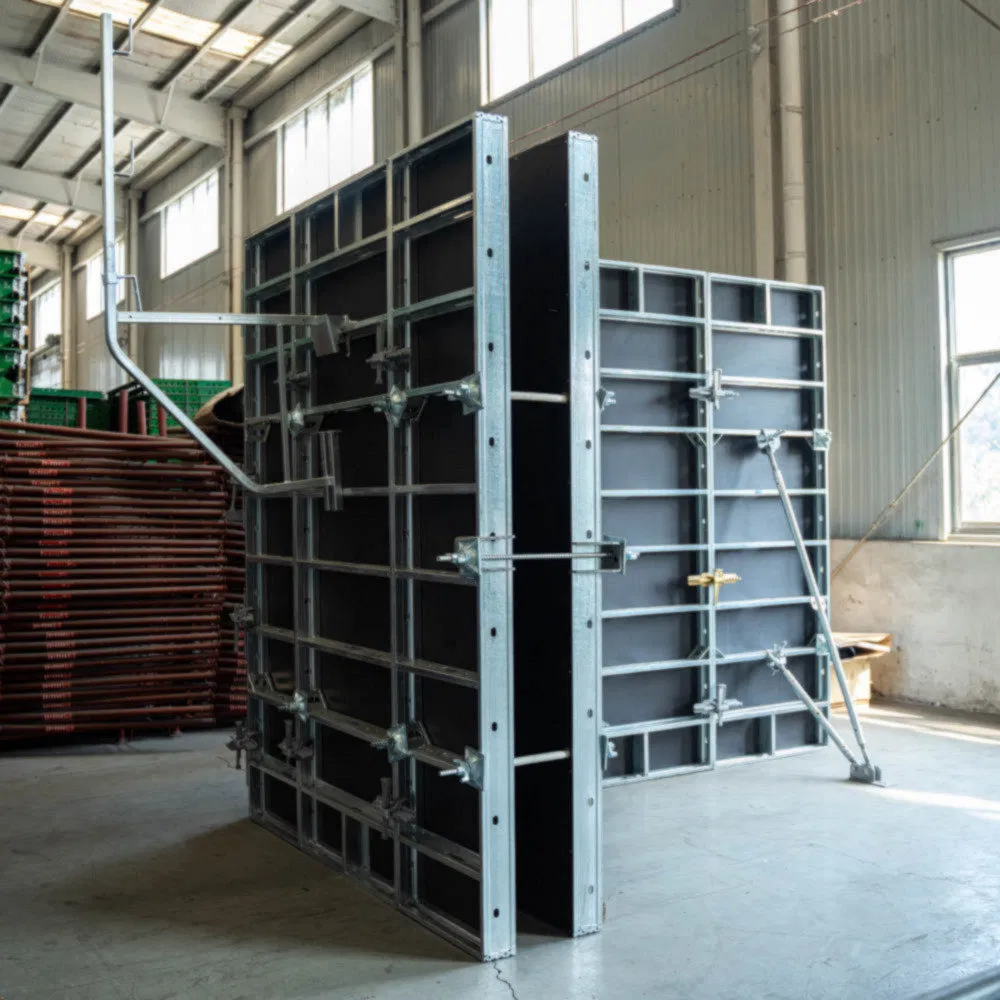

Modular wall formwork system with easy panel combination is a versatile and high-performance wall forming solution engineered for efficient vertical concrete construction.
This advanced wall panel formwork system features modular design with quick-connect panel combinations, available in both steel and aluminium configurations to suit diverse project requirements. The reusable system delivers exceptional flexibility through its standardized panel modules that can be rapidly assembled into any wall configuration, from simple straight walls to complex architectural geometries.

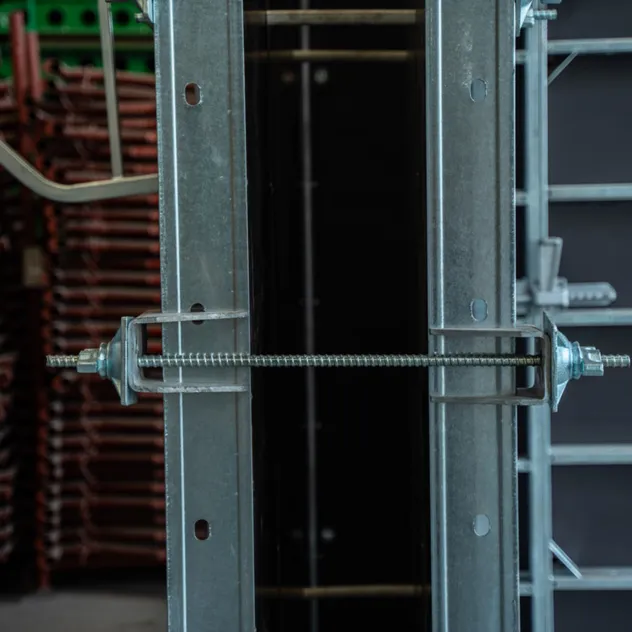

Built as a heavy-duty wall formwork system, it handles high concrete pressures while maintaining dimensional accuracy and superior surface finish quality. Compatible with various tie rod systems and supporting accessories, this modular panel formwork adapts seamlessly to different wall heights and thicknesses.
| TECHNICAL PARAMETERS (Bracket Frame Side Wall) | ||||
|---|---|---|---|---|
| Specifications Group 01 | SB-A | SB-B | SB-1 | SB-2 |
| Specifications Group 02 | SB-A0 | SB-A, C | SB-B, C | SB-A, B, C |

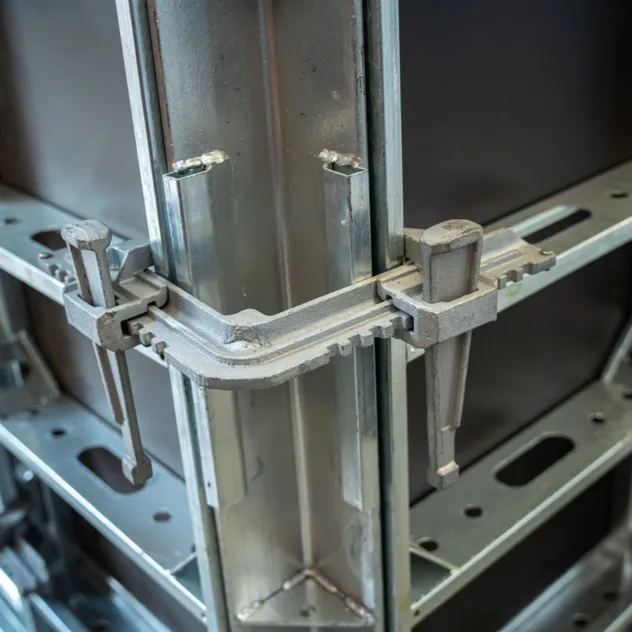

Standardized panel modules enable quick and flexible assembly into any wall configuration. Interlocking connection system allows rapid panel combination without specialized tools.
Engineered to withstand high concrete pressures and lateral loads. Robust steel or aluminium frame construction provides exceptional structural strength and stability.
Premium materials ensure extended service life with hundreds of reuse cycles. Corrosion-resistant surface treatments protect components from job site conditions.

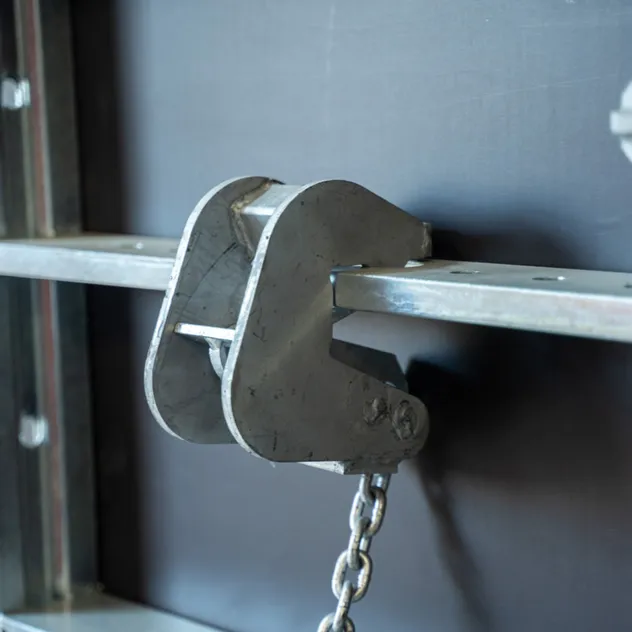

Quick-connect coupling system enables rapid panel installation with minimal crew requirements. Easy stripping process reduces dismantling time.
