Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
1 / 5
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings
Lansu 10W UV Vision Laser Marking System for Plastic Housings

Lansu 10W UV Vision Laser Marking System for Plastic Housings

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.
UV
Laser Visibility
Visible
Applicable Material
Plastic
Cooling System
Water Cooling
Laser Wavelength
355mm
Laser Power
5/10/20/25W
Marking Speed
≤7000mm/S
Repeatability
±0.01mm
Package Size
115.00cm * 105.00cm * 155.00cm
Gross Weight
178.000kg

Product Highlights

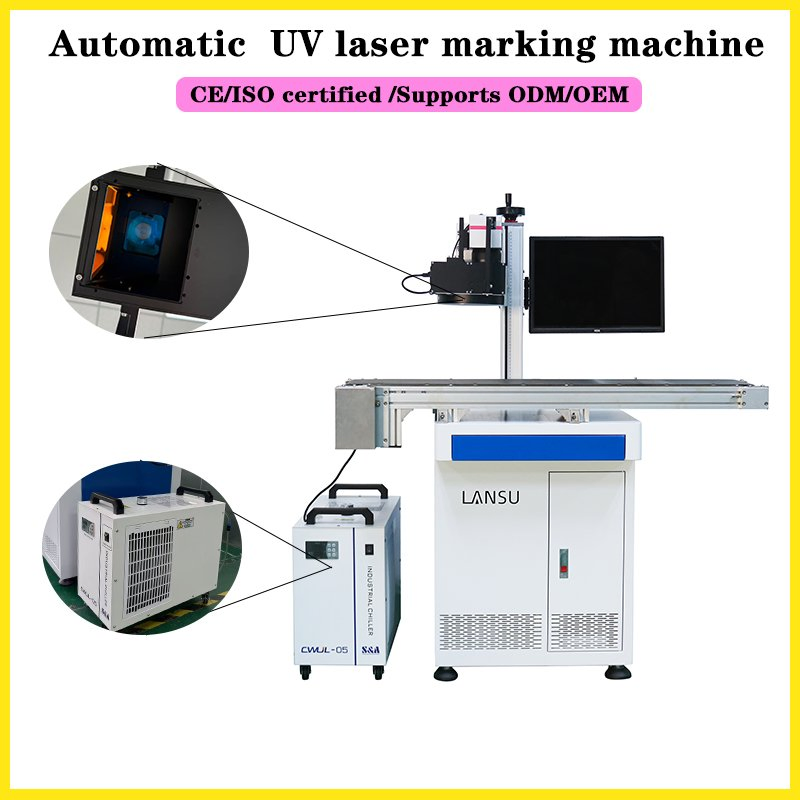

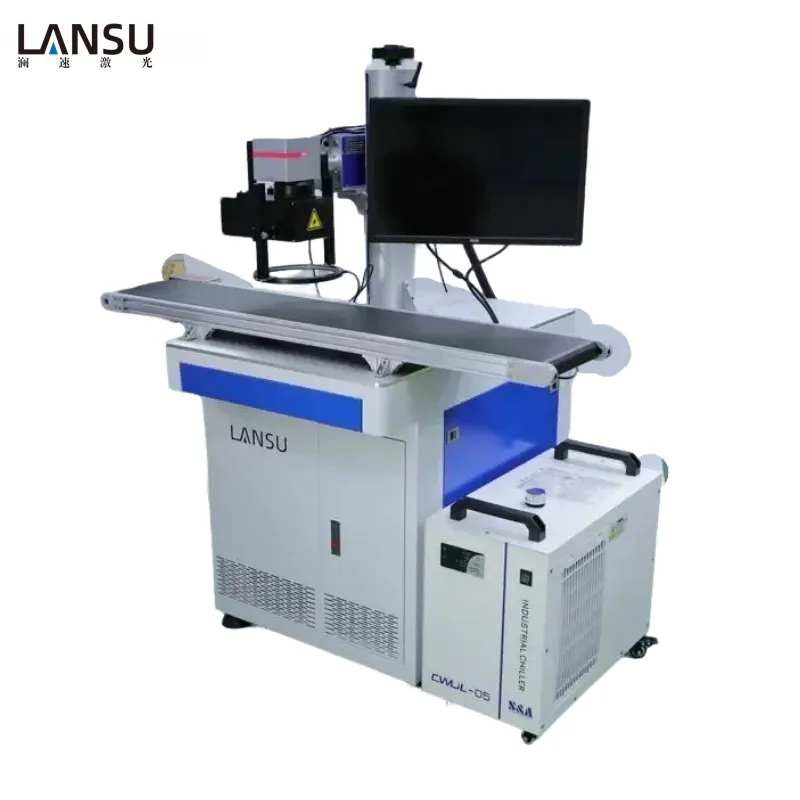

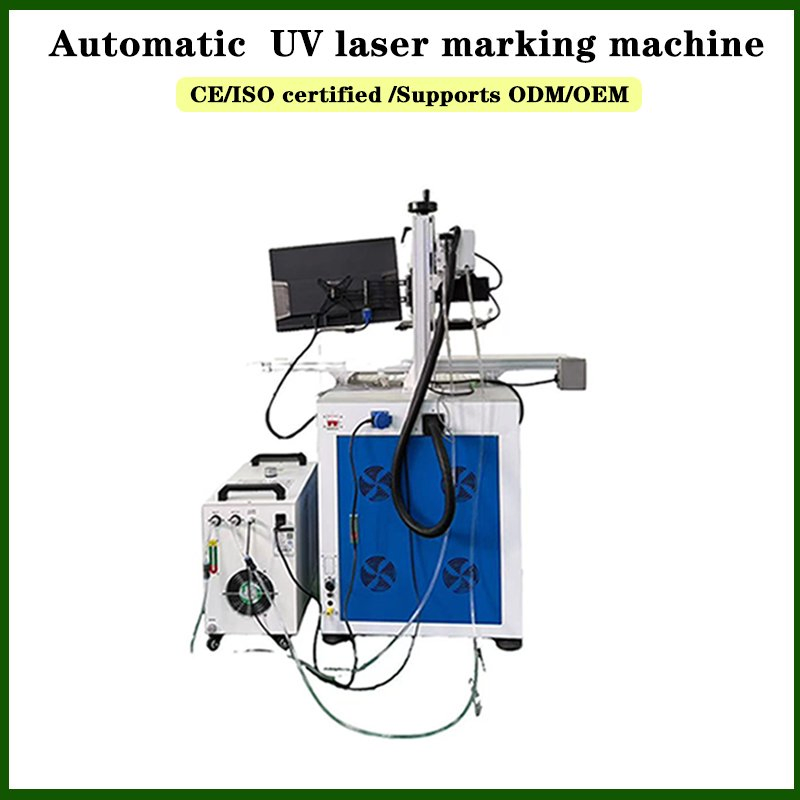

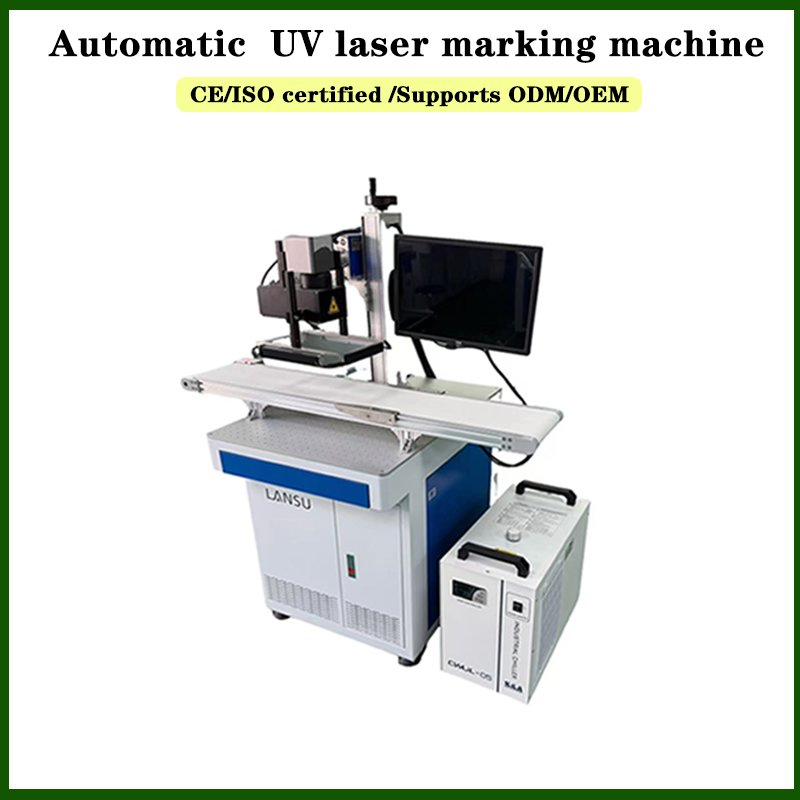

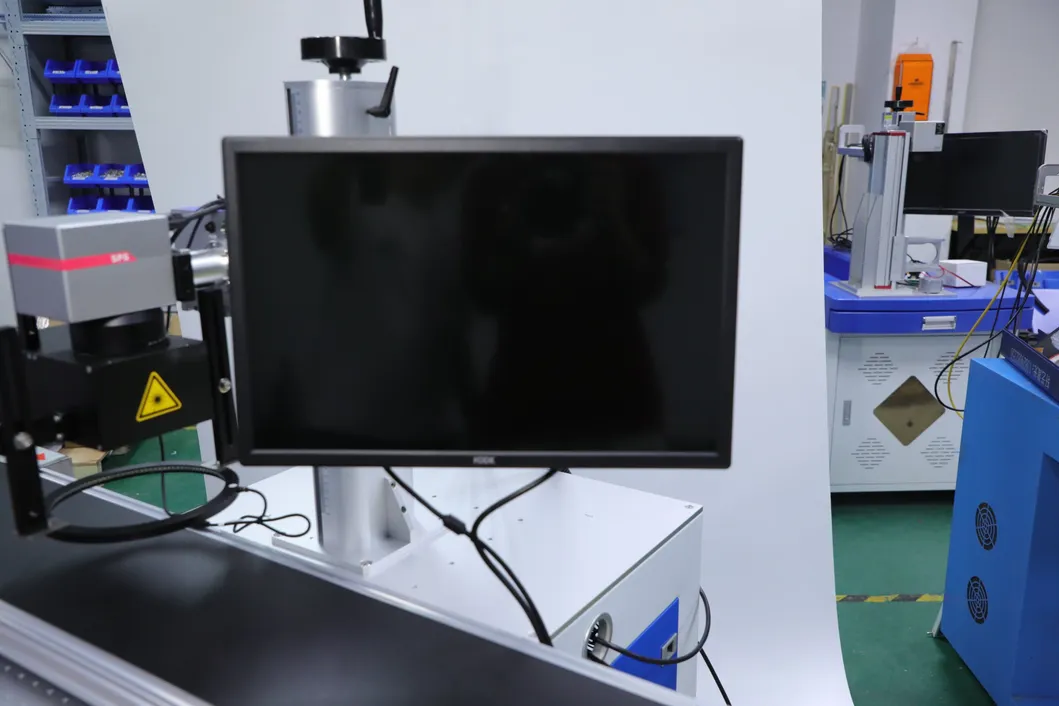

UV Vision Laser Marking System

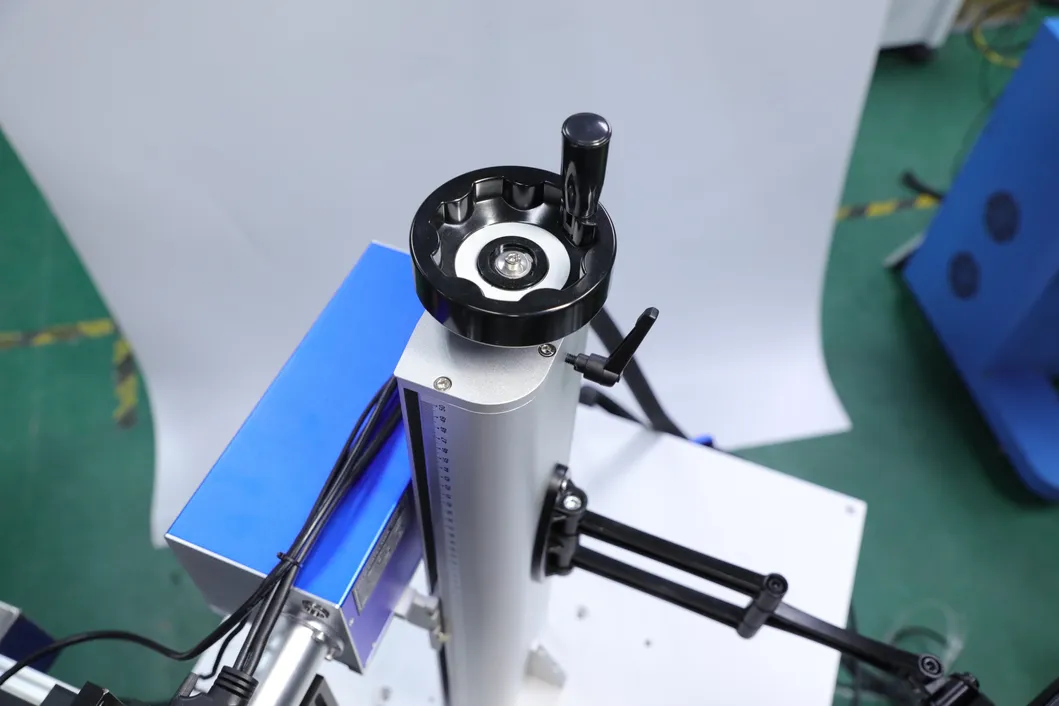

Laser System Details
●
High Production Efficiency: Rapid positioning allows marking of multiple products simultaneously. Compatible with automatic assembly lines for visual positioning.
●

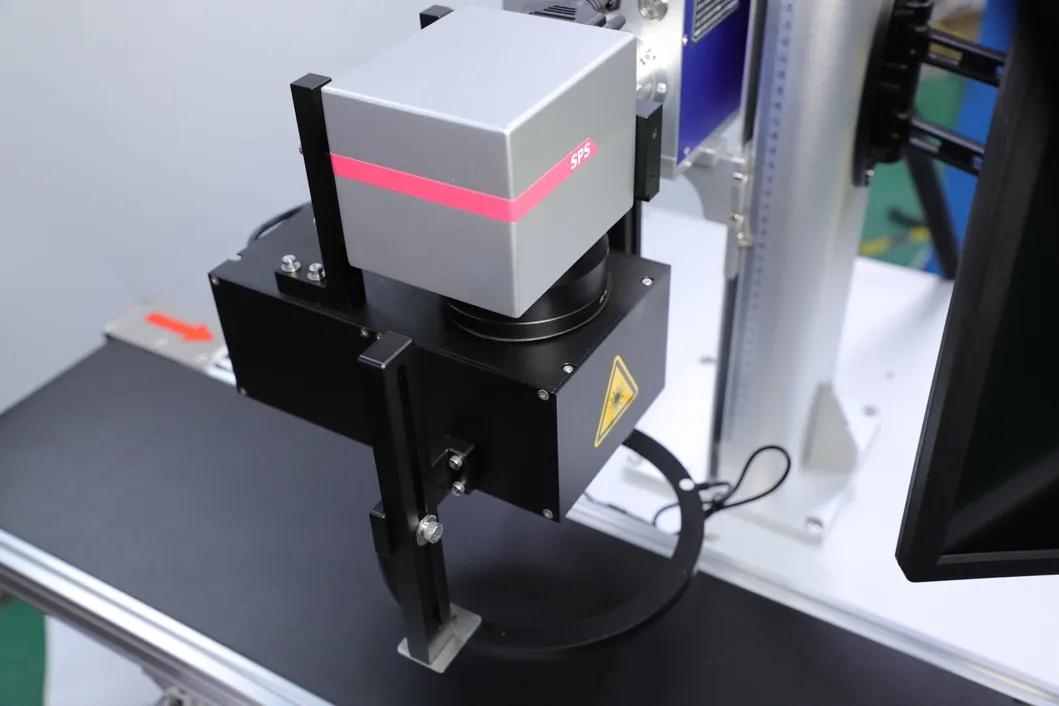

Superior Precision: Combined CCD vision technology ensures high-precision marking at any angle, position, or quantity.
●
Automation Ready: Seamlessly integrates with vibration plates, XY platforms, and conveyor systems for unmanned production.

Through advanced computer programming, marking content—including QR codes, patterns, and text—can be adjusted instantly. This flexibility eliminates the need for expensive molds and complex physical adjustments, making it ideal for diverse product batches.

Technical Parameters

ModelLS-SJUV-5/10/20/25W
Laser Power5/10/20/25W
Marking Area150mm×150mm (optional)
Marking Speed≤7000mm/s
Minimum Linewidth0.01mm
Minimum Character0.05mm
Repeatability±0.01mm
Power SupplyAC220V/50Hz
Output Range4000 - 10000 pcs/h
Capture Time≤0.2s
Cooling ModeWater Cooling

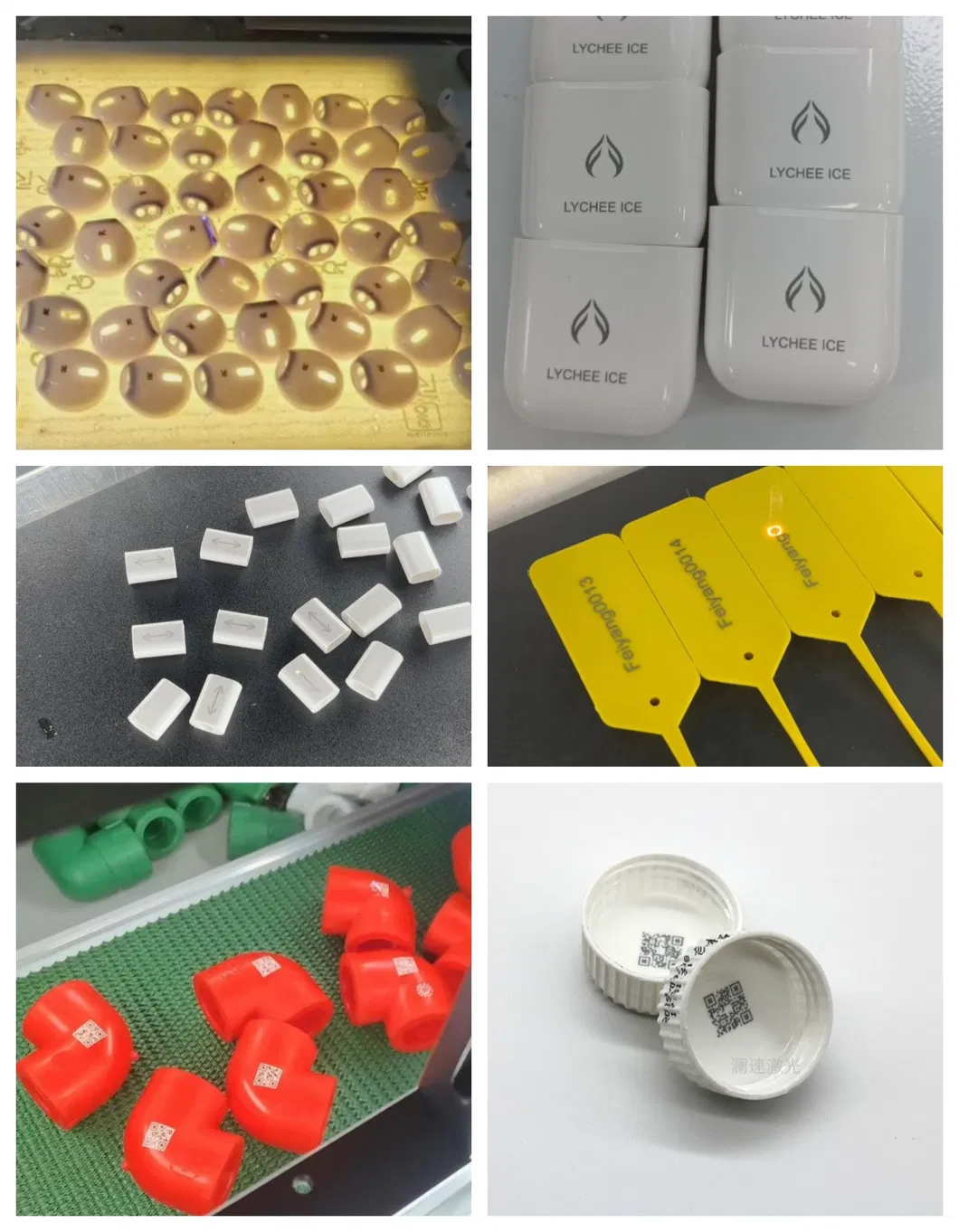

Applicable Materials

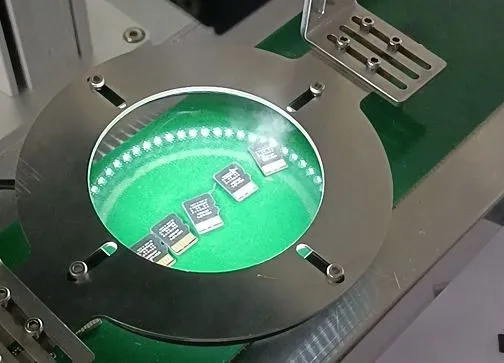

This system is specifically designed for small or delicate items where positioning is challenging:

  • Electronics: ICs, resistors, small screws.

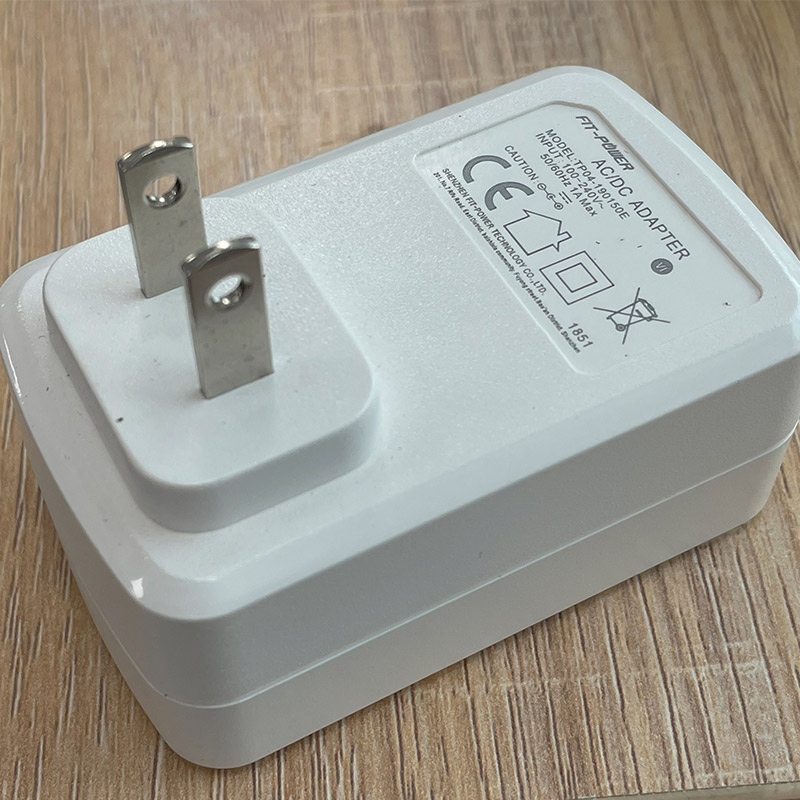

  • Plastics: ABS, PP, PC, PA, TPU, and more.
  • High-Complexity Workpieces: Items with flat surfaces requiring high-contrast engraving.

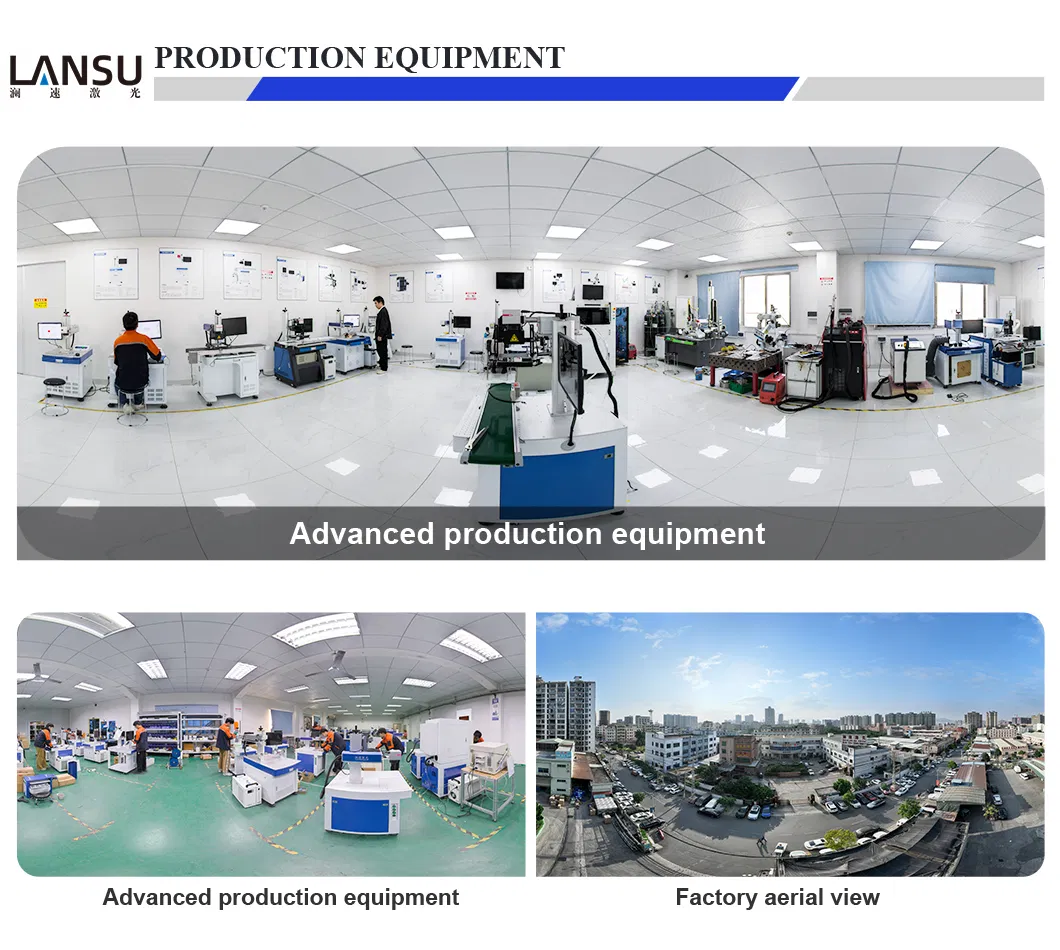

Manufacturing & Quality Control

Frequently Asked Questions

Q1: Which materials are most suitable for UV laser marking?
UV lasers are ideal for "cold marking," making them perfect for plastics (ABS, PP, PC), electronic components (ICs, resistors), and delicate materials that might be damaged by heat-intensive lasers.
Q2: How does the CCD vision system improve marking quality?
The CCD camera captures the position of the workpiece in less than 0.2 seconds. This allows the machine to automatically adjust the marking coordinates, ensuring 100% accuracy even if the product is placed at an angle.
Q3: Can the marking content be customized easily?
Yes, via computer software, you can easily change text, logos, serial numbers, and QR codes without any mechanical changes to the machine.
Q4: What is the expected lifespan of this marking system?
The system is built with high-quality components designed for 24-hour continuous operation, with a laser source lifespan reaching up to 100,000 hours.
Q5: What cooling system is required for the UV laser?
This system utilizes a specialized water-cooling unit to maintain stable operating temperatures, ensuring consistent beam quality and equipment longevity.
Q6: What services are provided regarding quality assurance?
We ensure quality through rigorous pre-production sampling and a final comprehensive inspection of every unit before shipment.
