Cutter Suction Dredger Solution for Efficient Dredging Operations
Our state-of-the-art Cutter Suction Dredger, featuring robust steel construction and a modular, non self-propelled design, is versatile enough to operate in various water bodies, whether in coastal zones or inland rivers. It meets stringent navigation standards for inland river steel engineering ship manufacturing.
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Product Model | HP-CSD200 | 8 inch |
| 2 | Total Length | 16.0m | - |
| 3 | Hull Dimensions | 11.05m x 4.4m x 1.3m | Length/Width/Depth |
| 4 | Draft | 0.8m | - |

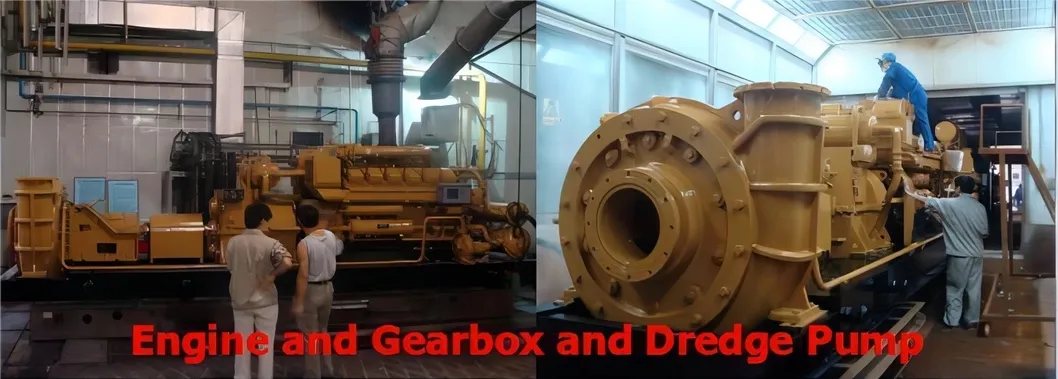

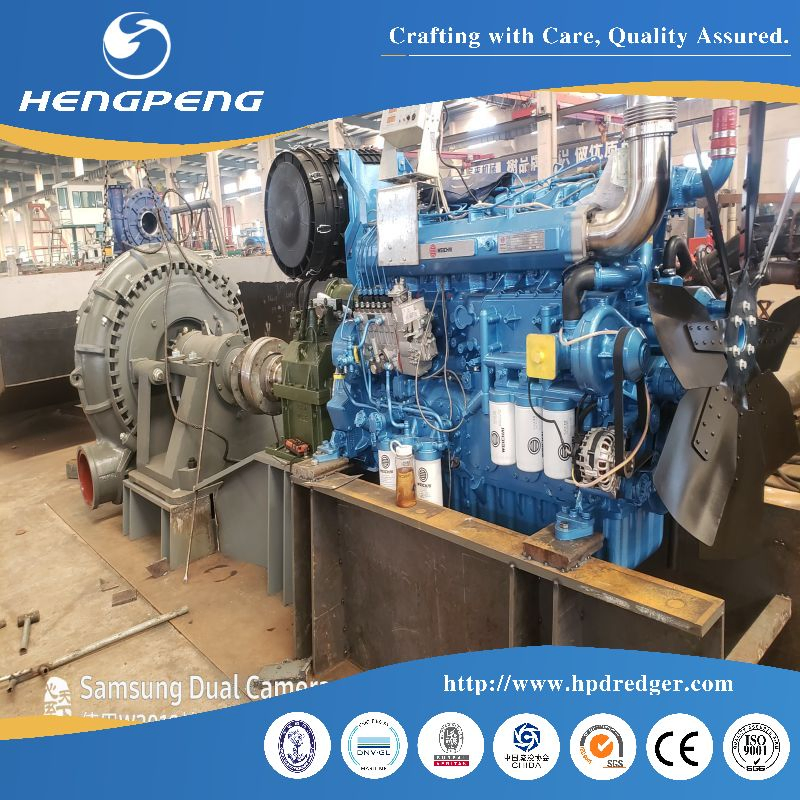

| 5 | Main Engine | 450KW | Marine Power |
| 6 | Dredging Depth | 8-10m | - |
| 7 | Water Flow Capacity | 800-900m³/h | WN200 Pump |
| 8 | Discharge Distance | 1000m | - |
| 9 | Pump Diameter | Suction 250mm / Discharge 200mm | Australia Technology |
| 10 | Total Working Weight | 60 Ton | - |

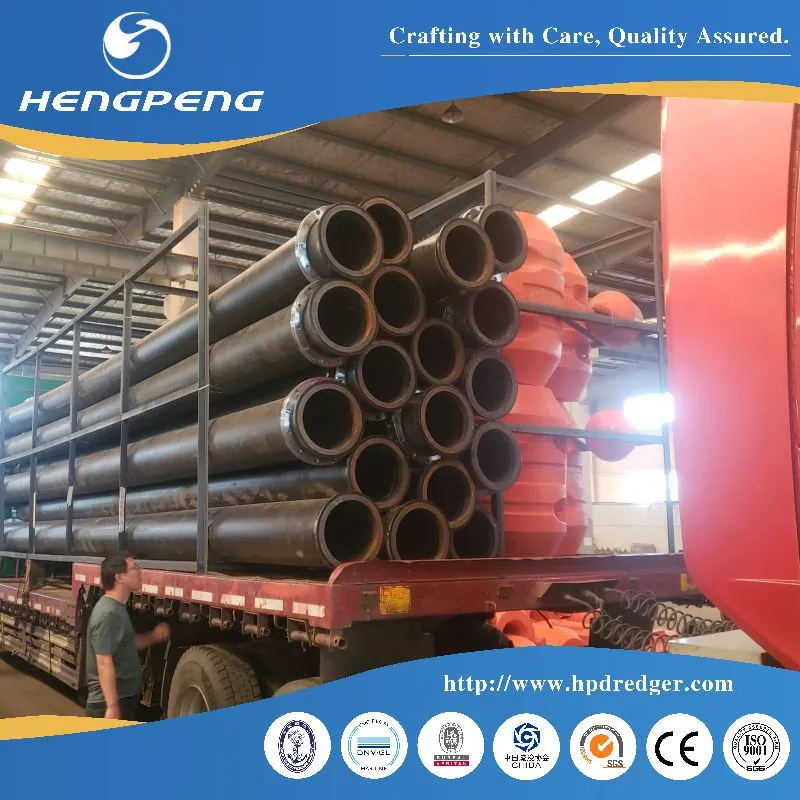

Shipping & Assembly:
Compact models are disassembled and shipped via containers for efficiency. Larger units are transported via bulk cargo vessels. Our engineers manage on-site assembly, testing, and training upon arrival.
