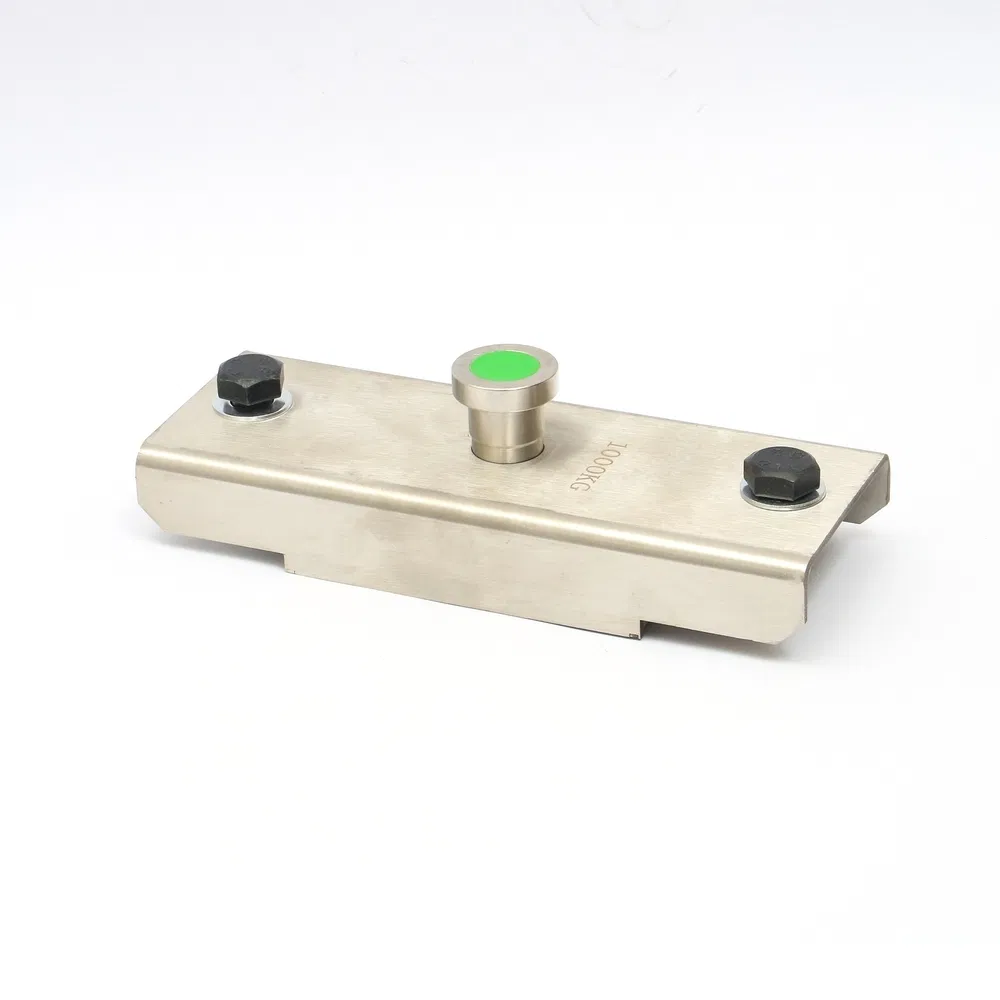

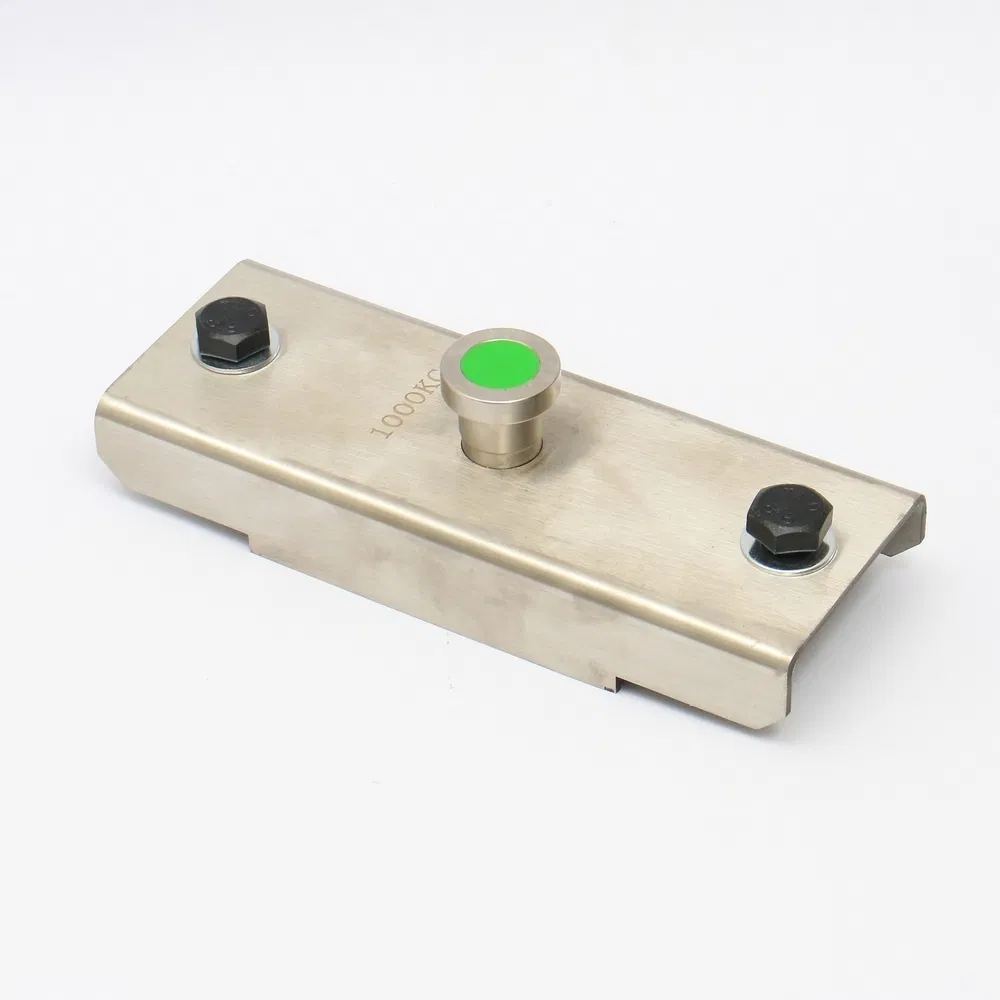

REVOLUTIONIZE YOUR PRECAST CONCRETE WORKFLOW WITH OUR SHUTTERING MAGNET BOX
Experience a dramatic boost in efficiency with our Shuttering Magnet Box, the ultimate solution for securing formwork in precast concrete production. Engineered with powerful permanent neodymium magnets, this formwork magnet delivers immense holding force (from 1000KGS and up) to lock side forms and fixtures firmly in place. Forget traditional welding or bolting; our magnetic shuttering system features a simple push-button mechanism for instant activation and release, requiring no external power.
Built to withstand harsh construction environments, its durable housing—available in stainless steel—protects against corrosion and concrete grout. Switch to our precast concrete magnet today and significantly reduce setup time, lower labor costs, and improve the accuracy of your precast elements.
| Model Name | 450B | 600B | 800B | 900B | 1000B |
|---|---|---|---|---|---|
| Vertical Suction (kgf) | 450 | 600 | 800 | 900 | 1000 |
| Net Weight (kg) | 1.7 | 1.8 | 2.5 | 2.9 | 2.9 |
| Size (cm) | 17*6*4 | 17*6*4 | 19*9.5*4 | 28*6*4 | 20*9.5*4 |
| Template Height (mm) | 30-60 | 40-70 | 50-80 | 60-100 | 70-120 |
| Model Name | SX-1350 | SX-1800 | SX-2100 | SX-2300 | SX-2600 |
|---|---|---|---|---|---|
| Vertical Suction (kgf) | 1350 | 1800 | 2100 | 2300 | 2600 |
| Net Weight (kg) | 6.3 | 7.2 | 7.6 | 7.8 | 7.8 |
| Size (cm) | 32*9*6 | 29*12*6 | 31*12*6 | 32*12*6 | 32*12*6 |
| Template Height (mm) | 80-200 | 100-250 | 150-300 | 180-320 | 200-350 |

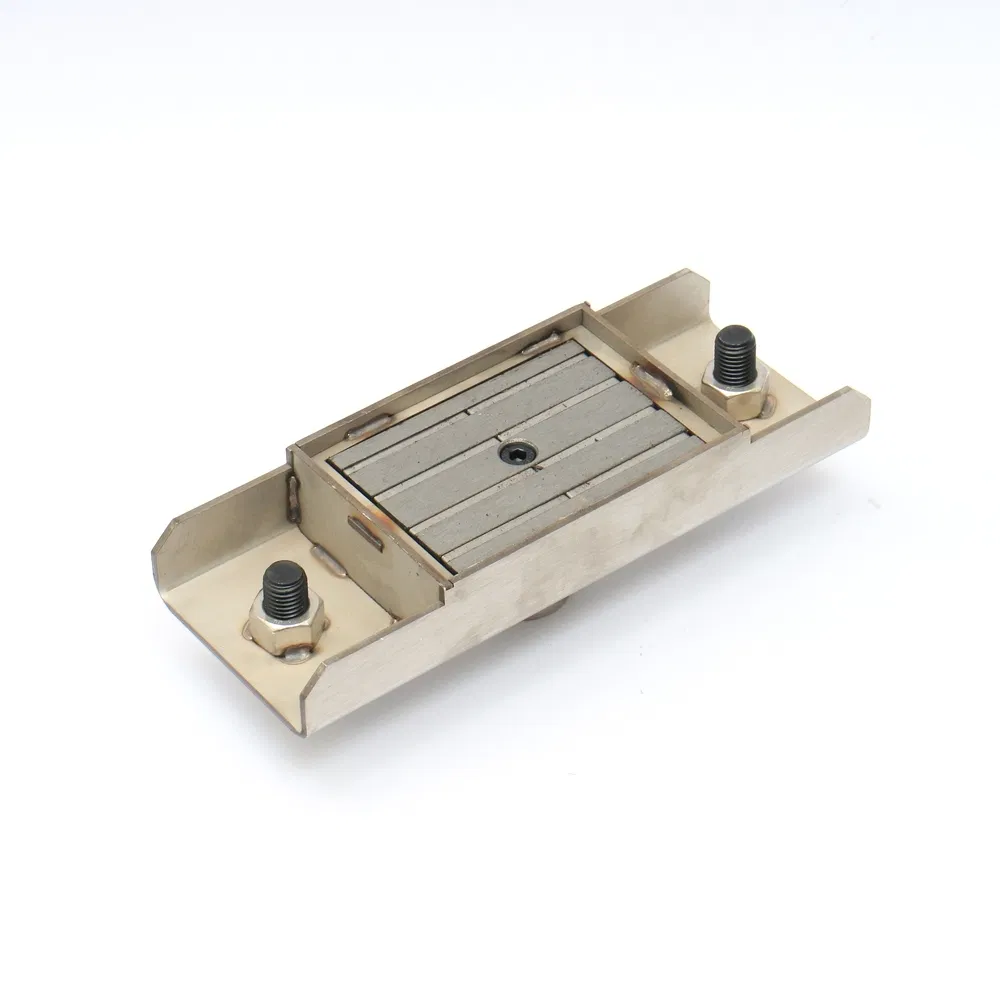

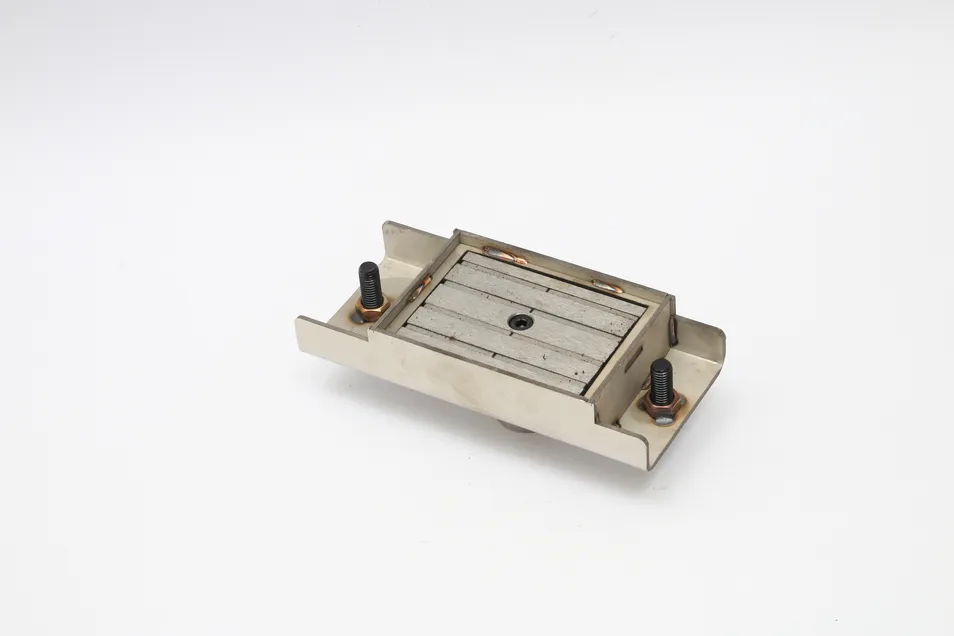

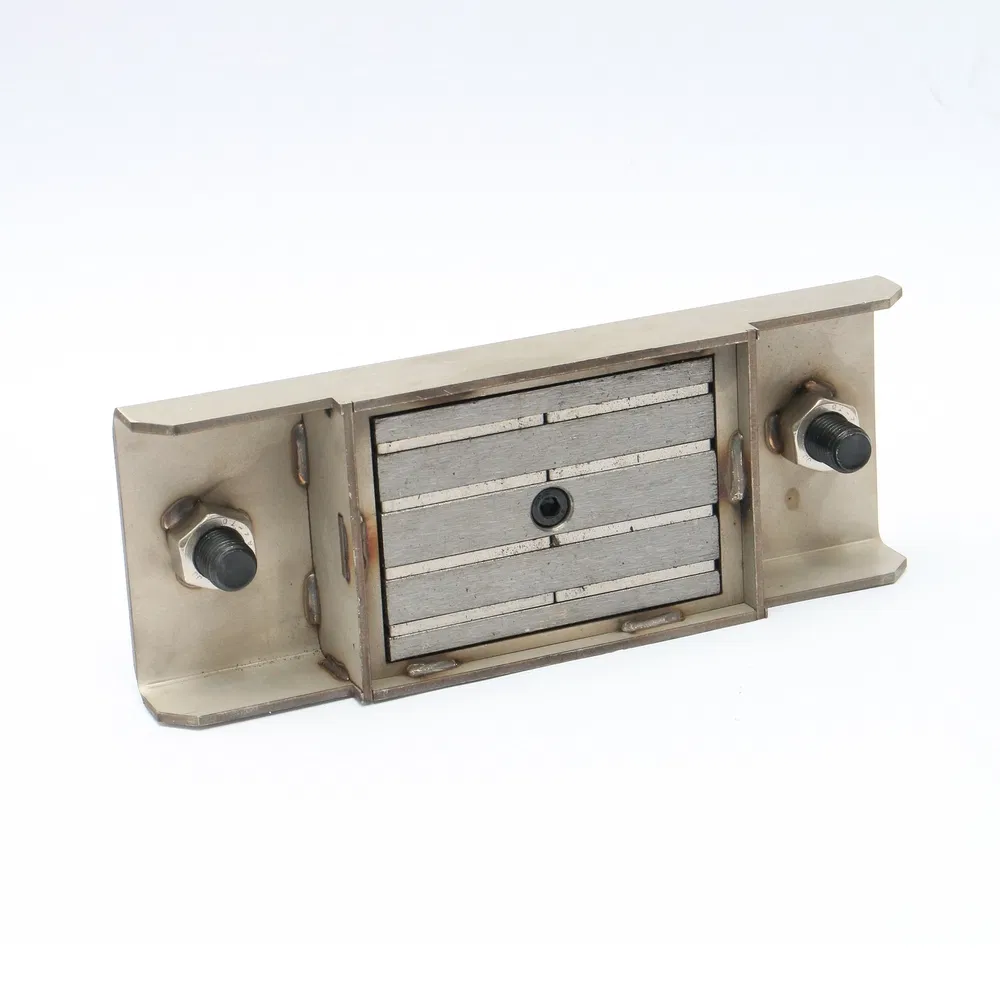

Utilizing a high-performance Neodymium magnet core, our compact magnet box delivers an exceptionally strong holding force (up to 32 KN) to securely anchor any steel formwork.

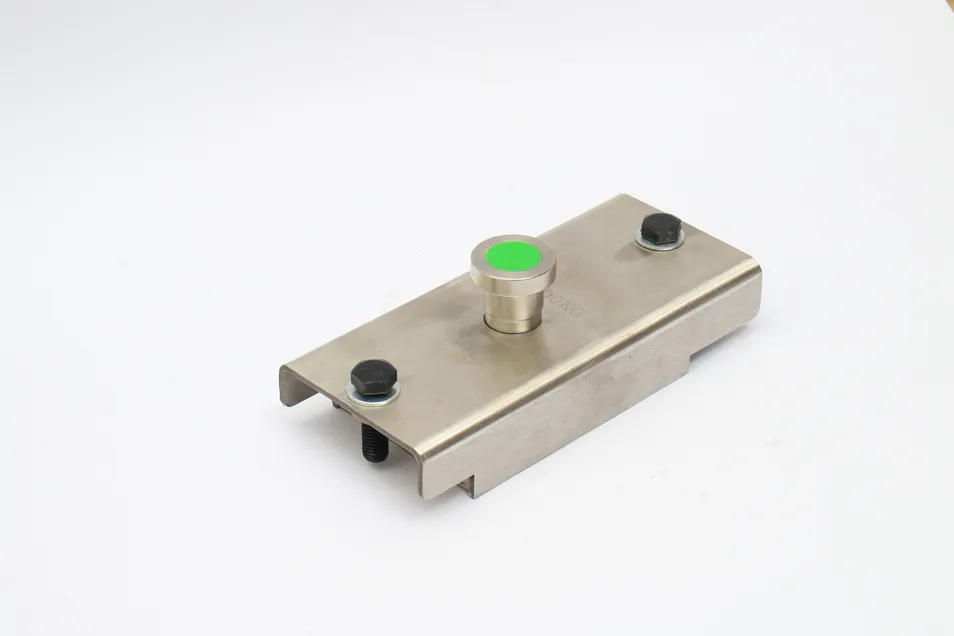

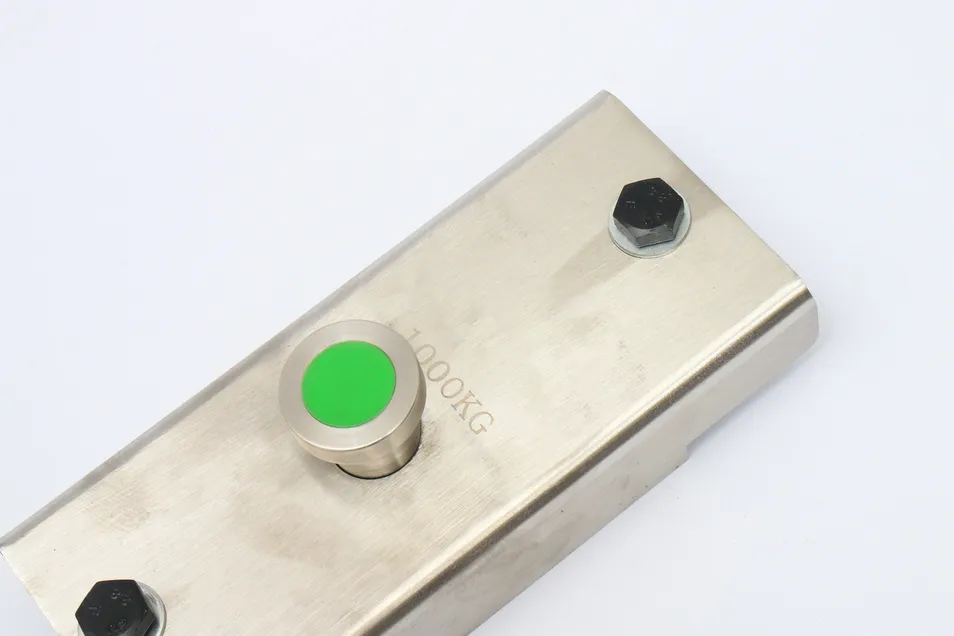

An integrated ON/OFF button allows for instant activation. Simply press the button down to lock the magnet. To release, use a steel lever to pull the button up.

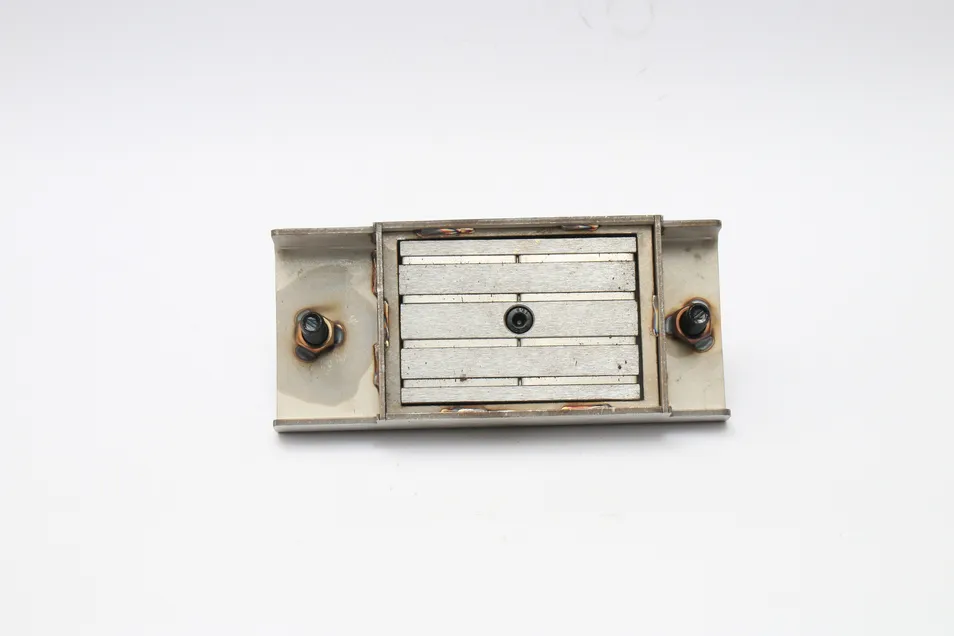

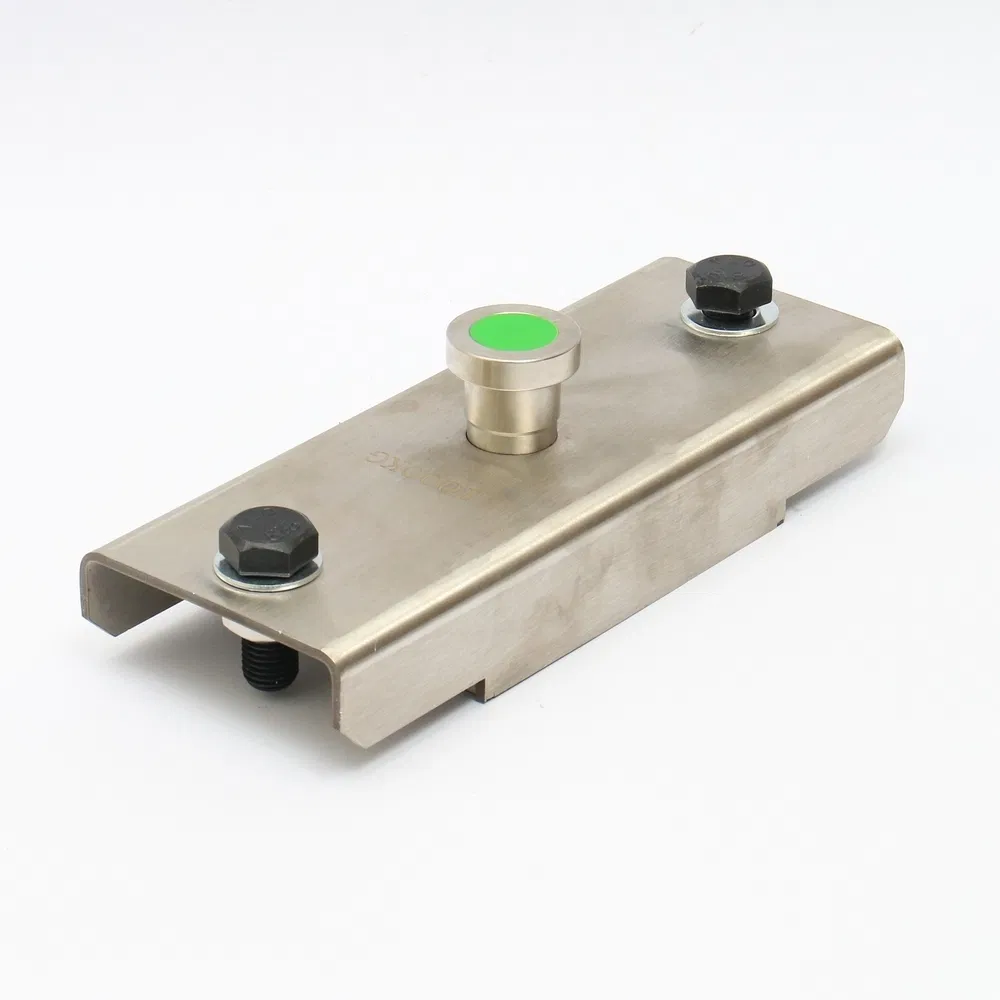

The sealed steel or stainless steel casing is expertly designed to prevent concrete grout and moisture from penetrating, protecting the internal assembly.

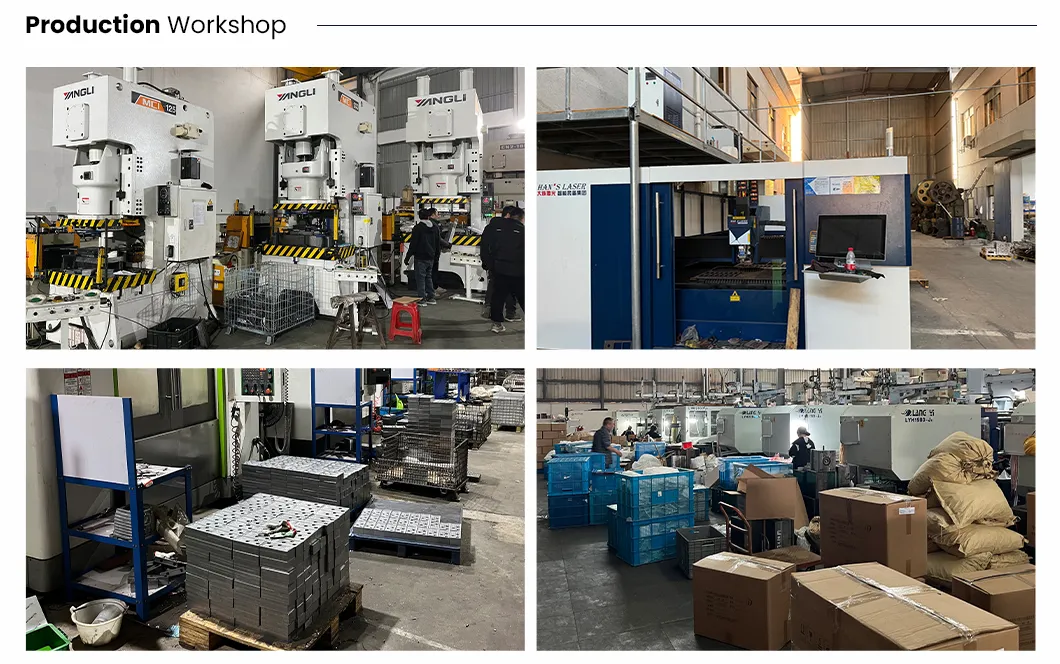

Our production facility specializes in the manufacturing and processing of mechanical equipment, hardware, and shuttering magnetic systems. We maintain strict quality control to serve customers distributed all over the world.
