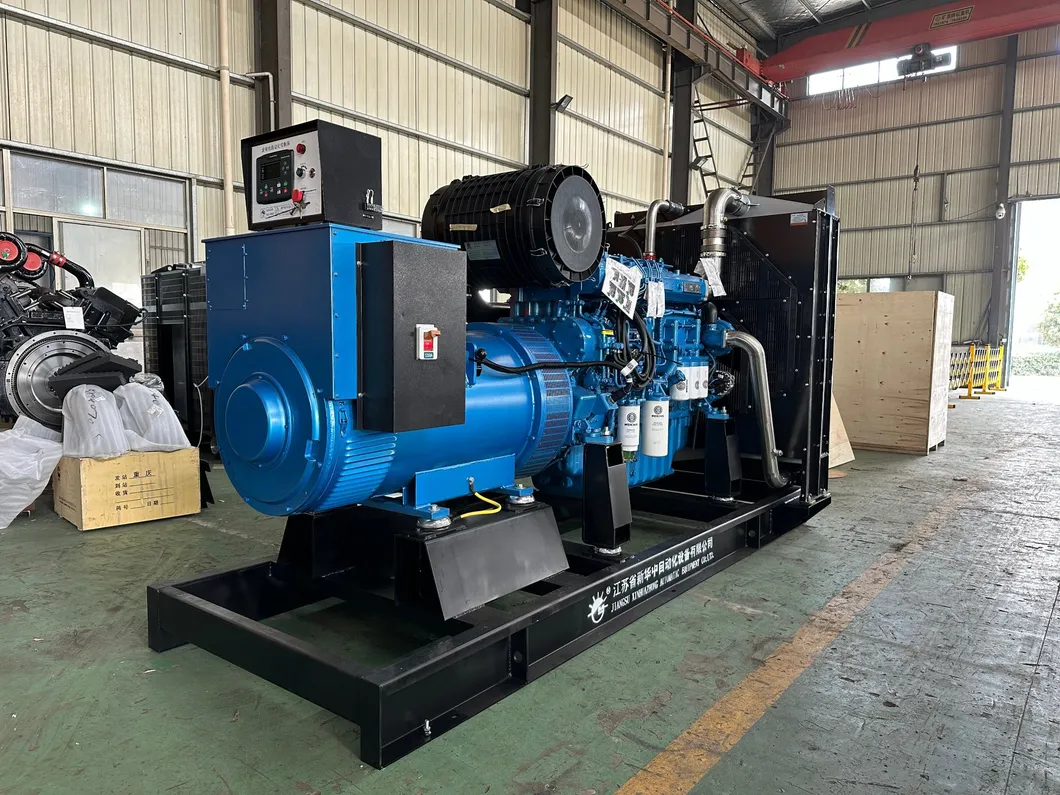

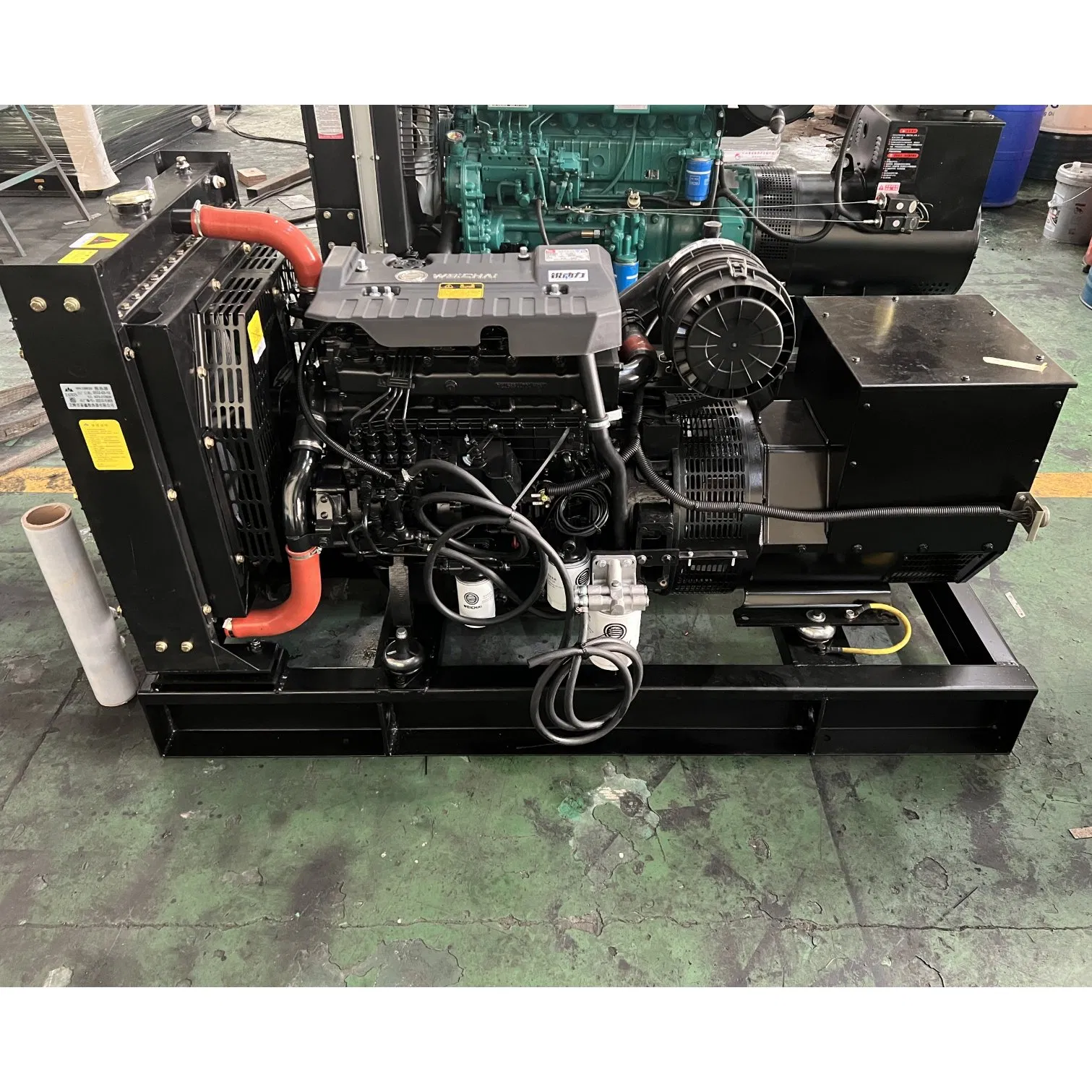

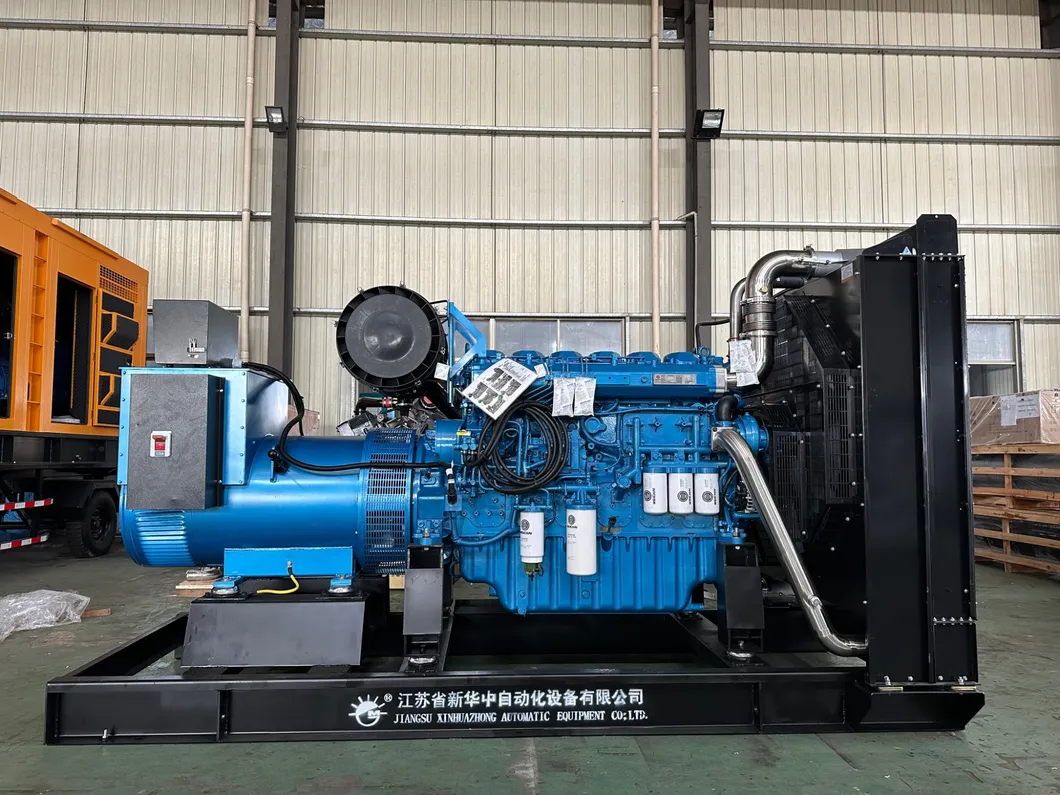

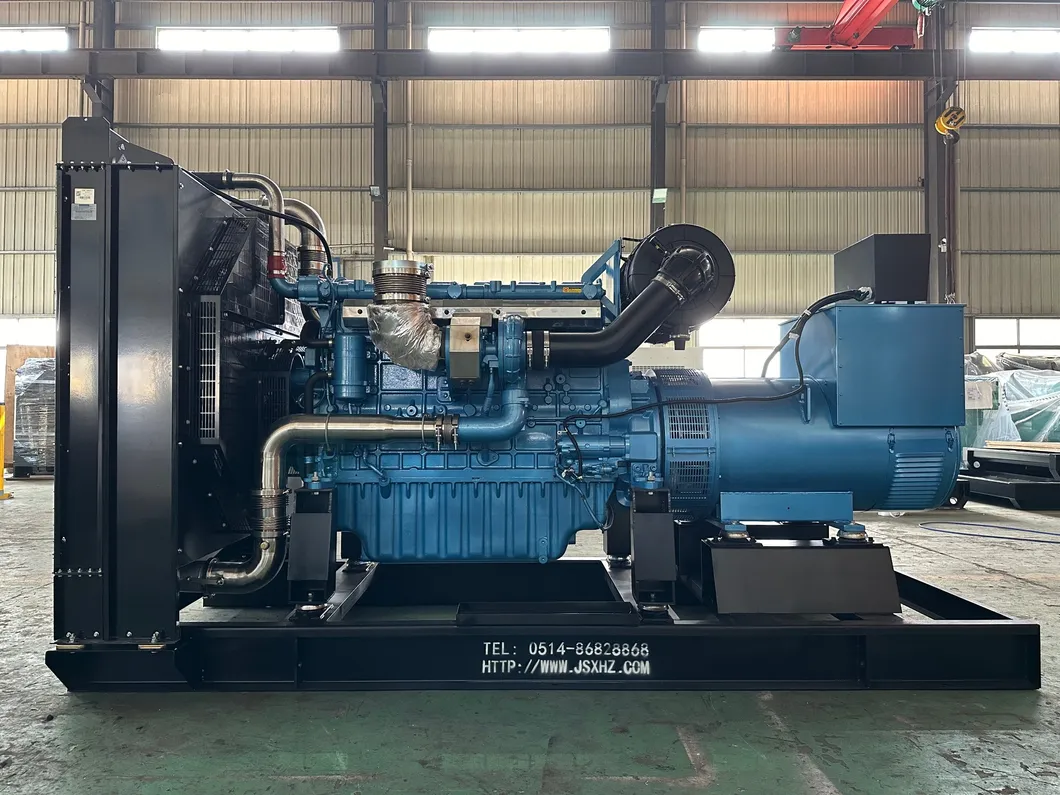

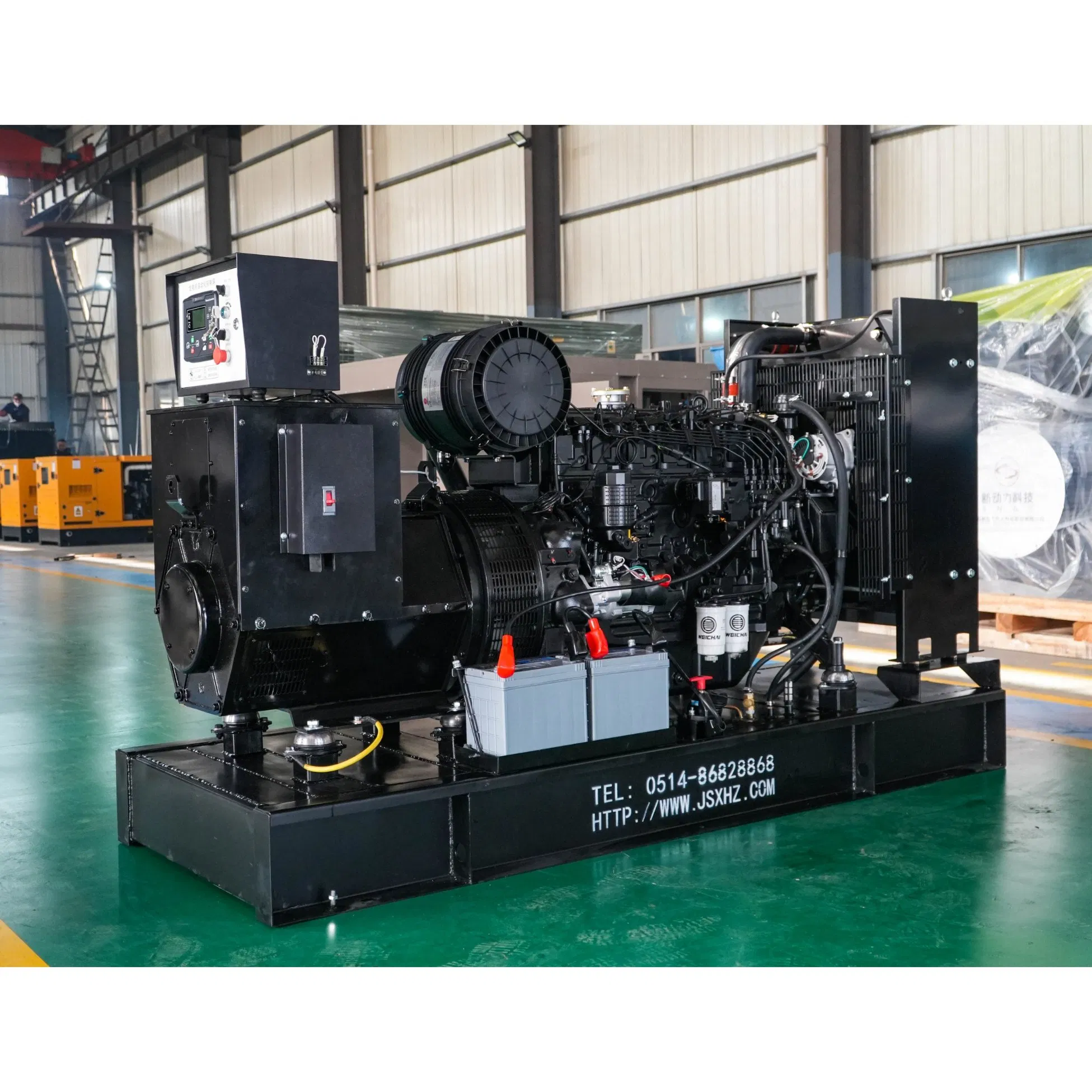

Weichai Diesel Generator: Flexible Power Solutions 20kVA to 4000kVA

1 / 5

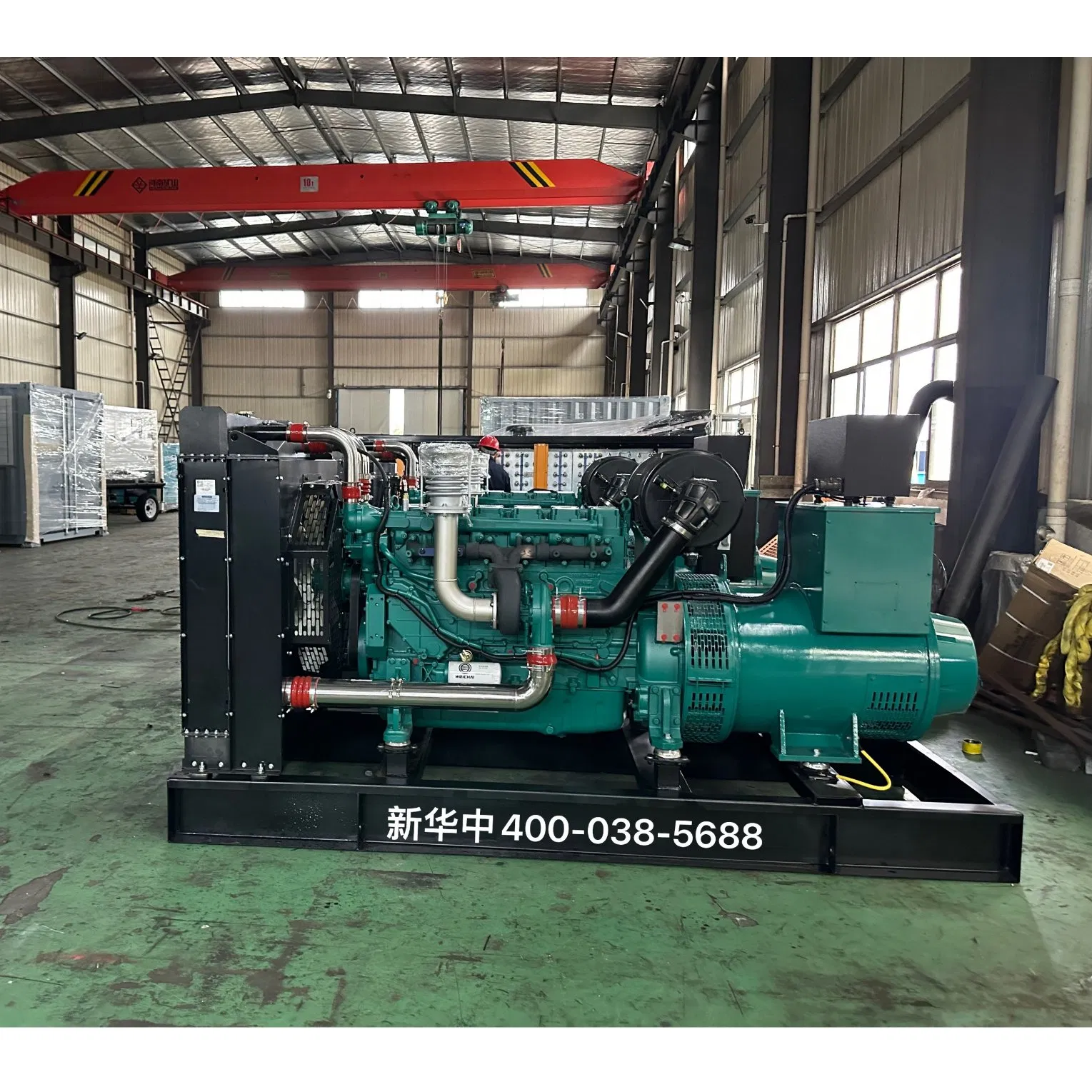

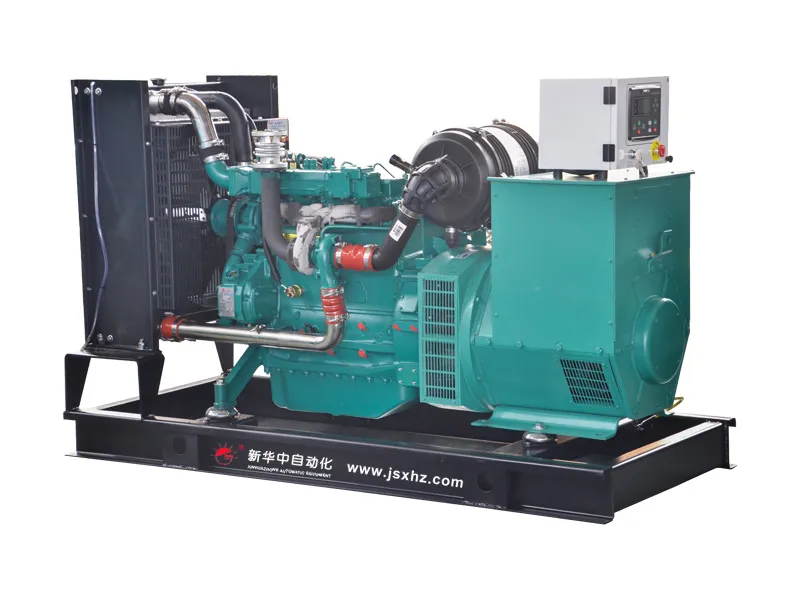

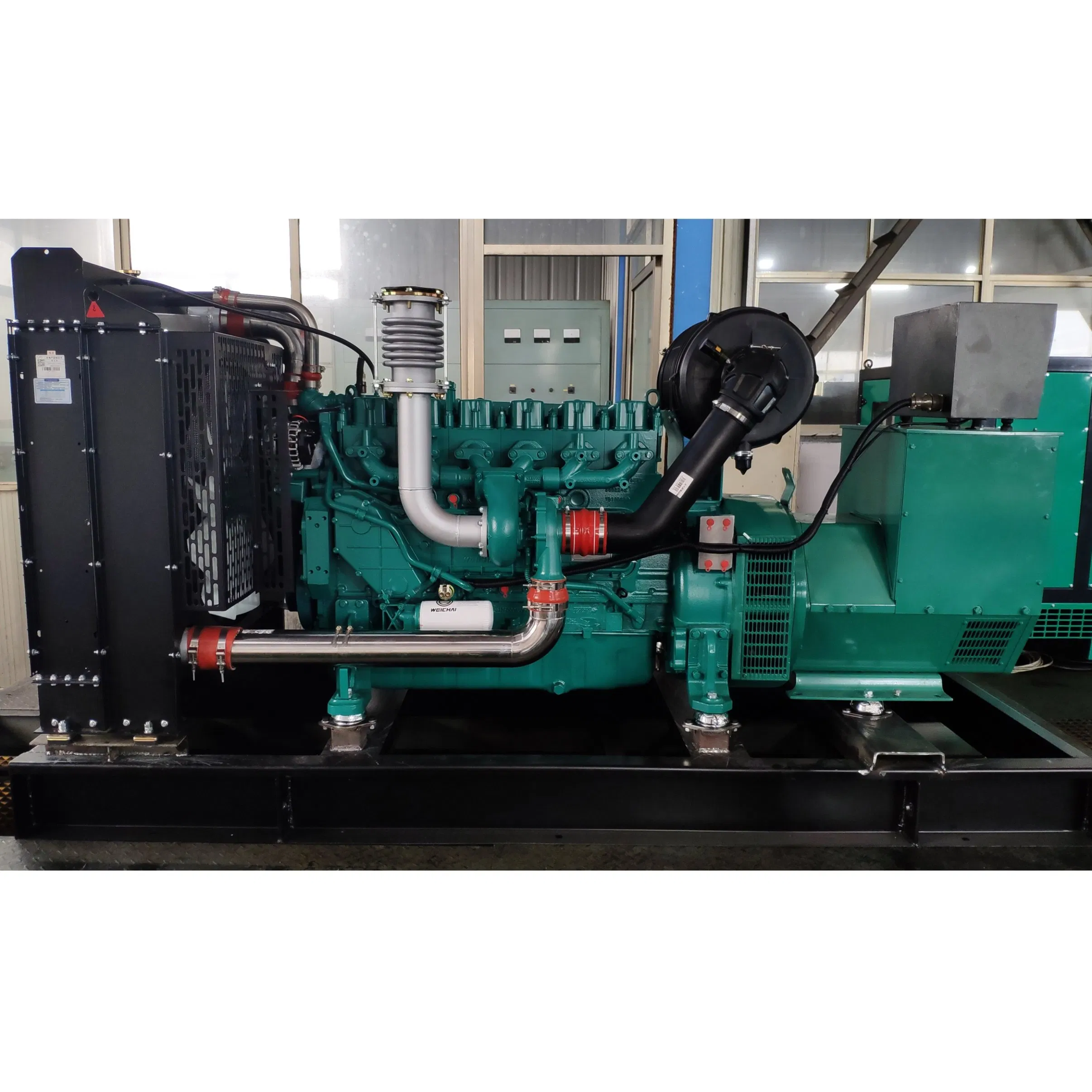

Weichai Diesel Generator: Flexible Power Solutions 20kVA to 4000kVA

Customization:	Available
After-sales Service:	The Seller Guarantees Product Compliance with Chin
Warranty:	12-Month or 1000-Hour

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

XHZW Series

Type

Self-Starting Diesel Generator

Installation

Fixed

Stroke

Four Stroke

Cooling Method

Water Cooling

Output Type

AC Three Phase

Conditions

Land Use

Usage

Common, Standby, Emergency

Power Range

20kVA-4000kVA

Engine

Weichai

📦 Packaging & Delivery

Package Size

150.00cm * 70.00cm * 110.00cm

Gross Weight

720.000kg

⚙️ Product Description

Power Range 20kVA - 4000kVA

The engine is equipped with groundbreaking technology developed independently by Weichai, catering to diverse power needs across various scenarios. It features exceptional speed adjustment precision, seamless operation, and remarkable load-bearing capabilities.

High-Efficiency Energy Conversion for lower operational expenses.
Complies with Euro III and China III emission regulations.
Premium components ensure prolonged stability and reliability.
Optimized for harsh environments: high heat, humidity, and dust.

Standard Features & Options

Comprehensive solution for all power generation system needs.
Prototype-tested and stringently inspected for quality.
Warranty: 1000 hours of operation or 1 year.
Alternators conform to IEC 60034, ISO 8528-3, and NEMA MG1-32.
Optional Brands: Leroy-Somer, Deepsea, Comap, HGM.

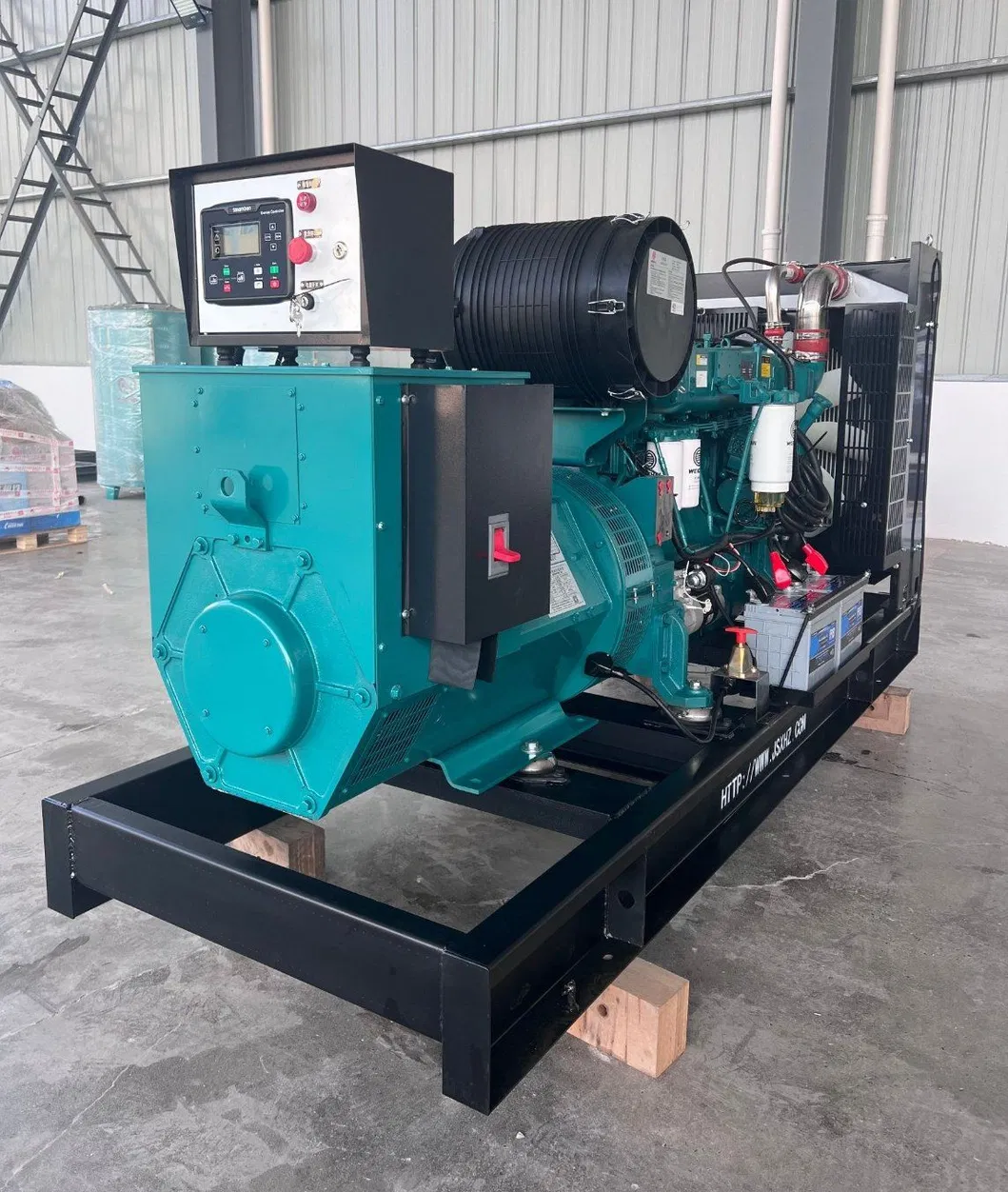

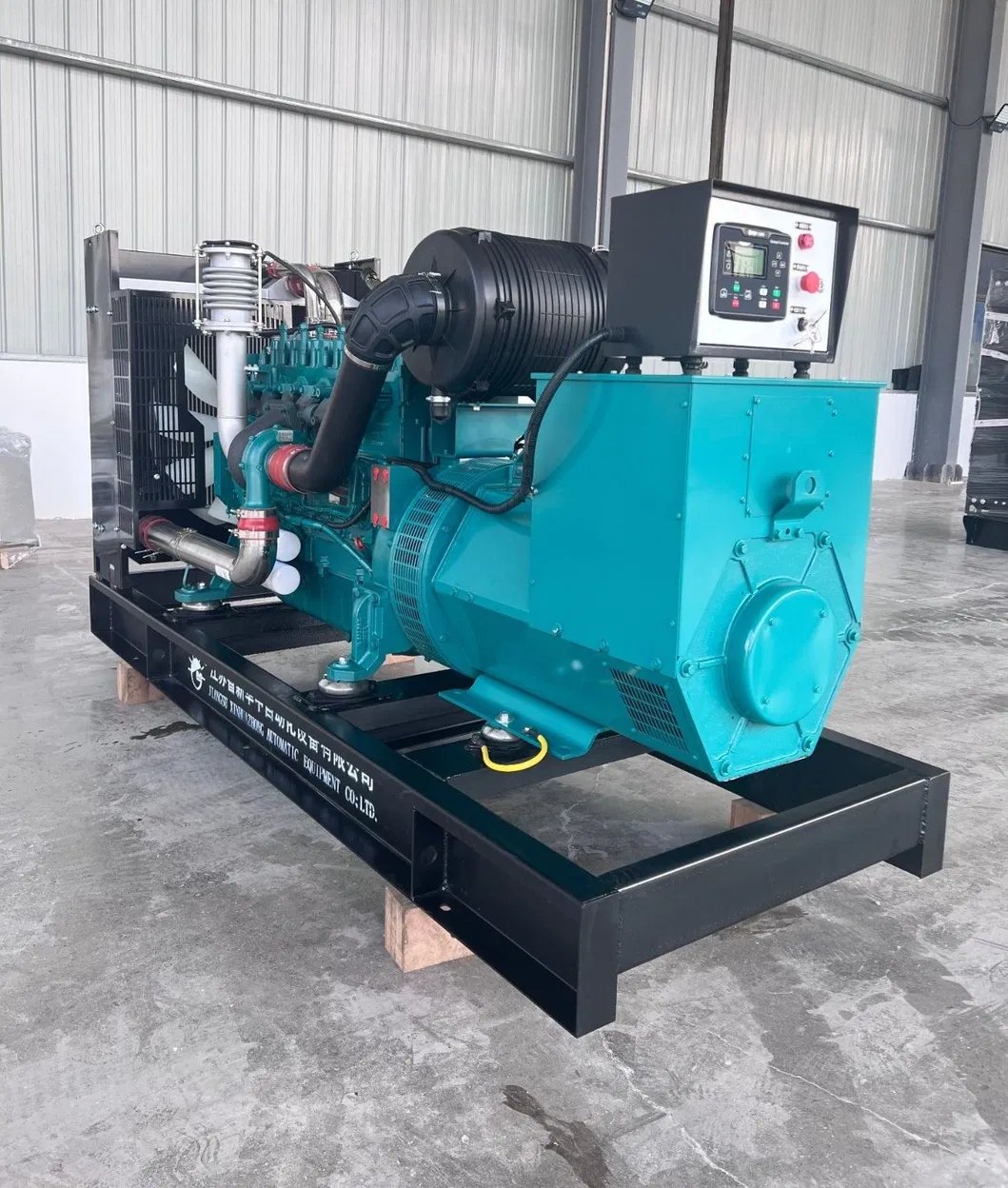

🖥️ Control System Features

SGC 420 CONTROLLER: Advanced battery charge management for AMF applications.

Automatic, manual, and remote start/stop functionalities.
Real-time monitoring of engine safety, site battery, and temperature.
Accurate event logging (up to 100 events) for data analysis.
Built-in electronic speed governor and power factor monitoring.
Optional ATS: Seamless transition between generator and mains.

📊 Specifications - 50Hz Weichai Series

GENSETS	Prime (kW/kVA)	Standby (kW/kVA)	Engine Type	Disp. (L)	Fuel (g/kw.h)	Dimension (LxWxH)	Weight (kg)
XHZW-25GF	16 / 20	18 / 23	WP2.3D25E200	2.3L	≤225	1500x700x1100	720
XHZW-35GF	24 / 30	26 / 33	WP2.3D33E200	2.3L	≤225	1500x700x1100	720
XHZW-50GF	36 / 45	40 / 50	WP2.3D48E200	2.3L	≤220	1600x800x1200	800
XHZW-90GF	64 / 80	70 / 88	WP4.1D80E200	4.1L	≤235	2200x900x1300	1000
XHZW-150GF	100 / 125	120 / 150	WP6D132E200	6L	≤205	2200x900x1300	1500
XHZW-200GF	140 / 175	150 / 188	WP6D167E200	6L	≤215	2400x900x1500	1500
XHZW-400GF	300 / 375	320 / 400	WP13D385E200	13L	≤210	3000x1100x1800	2700

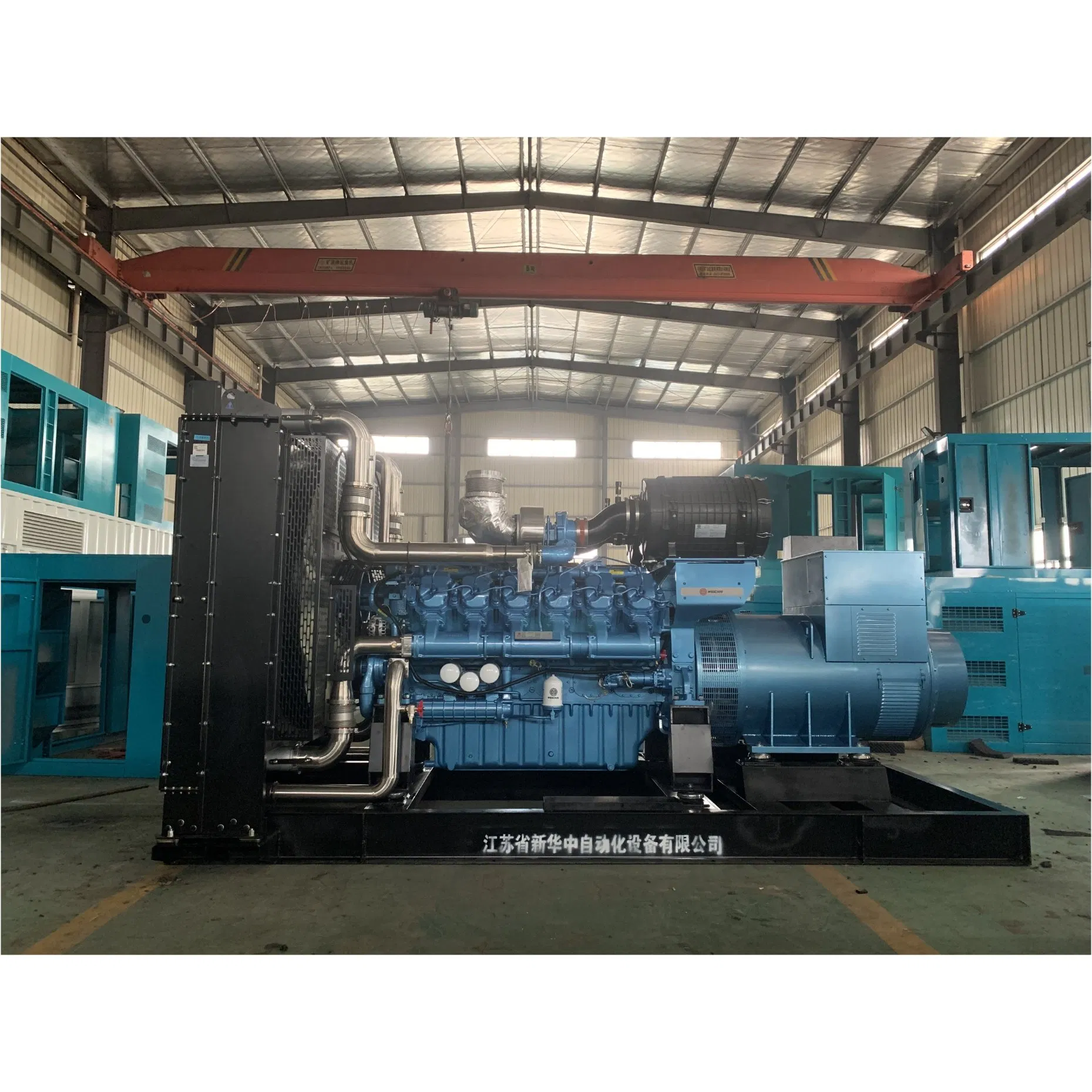

High Power Range
XHZW-1000GF	720 / 900	800 / 1000	12M26D902E200	31L	≤215	4600x1900x2300	7500
XHZW-1500GF	1100 / 1375	1200 / 1500	12M33D1320E200	39L	≤210	5400x2250x2600	9800

❓ Frequently Asked Questions

Do you have your own factory?

Yes, we have our own manufacturing facility. Customers are always welcome to arrange a visit to our factory to see our production processes firsthand.

What is the standard delivery time?

Delivery time depends on the order specifications. Generally, open gensets are ready within 10 days, and silent gensets within 20 days.

What is your warranty period and coverage?

Our standard warranty is 1 year or 1000 running hours, whichever comes first. For specific large-scale projects, we can discuss extended warranty periods.

Do your generators have a global warranty?

Yes. Most of our power systems, including those equipped with Cummins, Deutz, and Weichai engines, as well as Leroy Somer alternators, enjoy global warranty services for peace of mind.

What are the accepted payment terms?

We typically accept T/T with a 30% advance payment and the remaining 70% before shipment, or L/C at sight. Custom payment structures may be available for special projects.

Can the generators withstand harsh environments?

Yes, our units are specifically engineered to function optimally in challenging conditions, including high temperatures, high humidity, dust, and significant vibrations.
