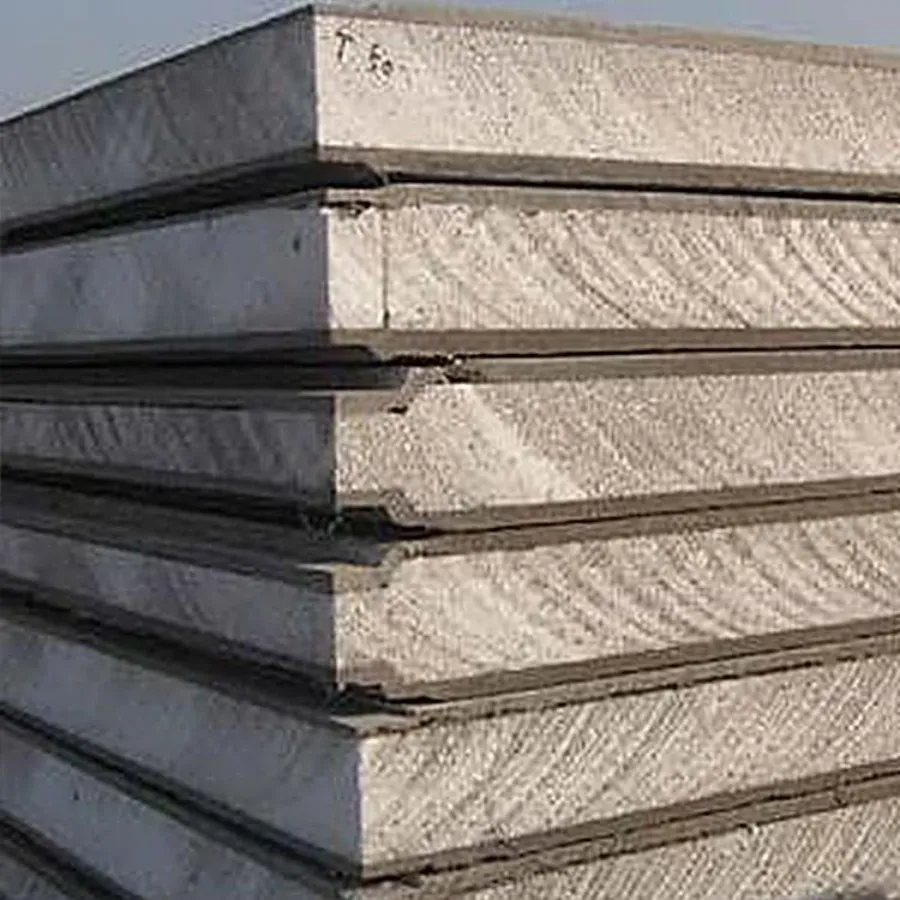

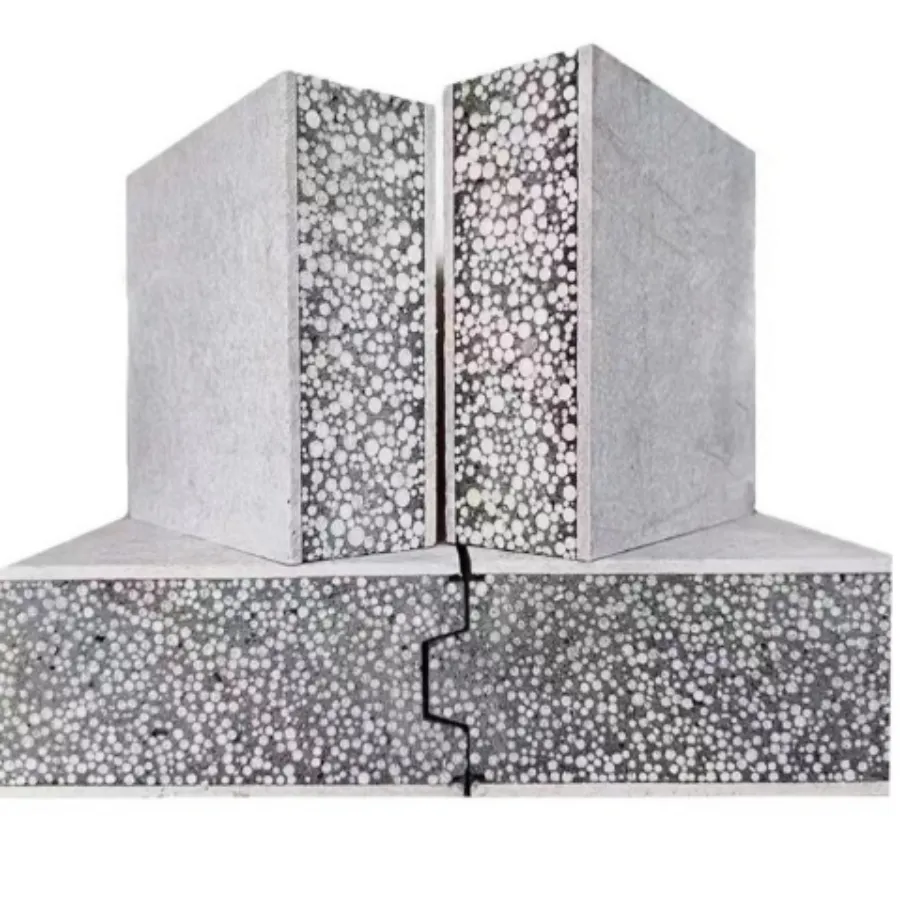

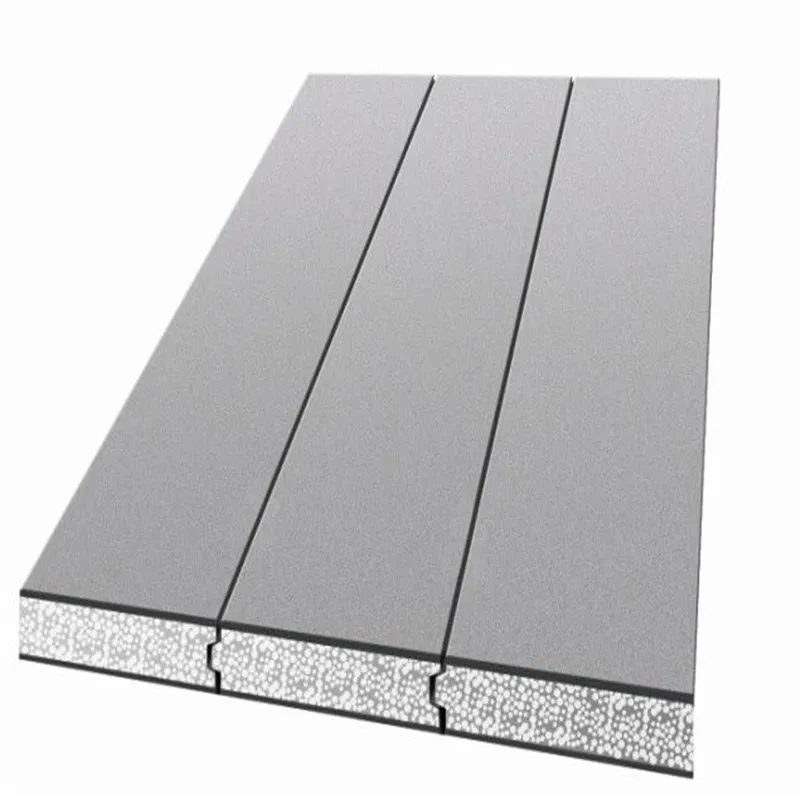

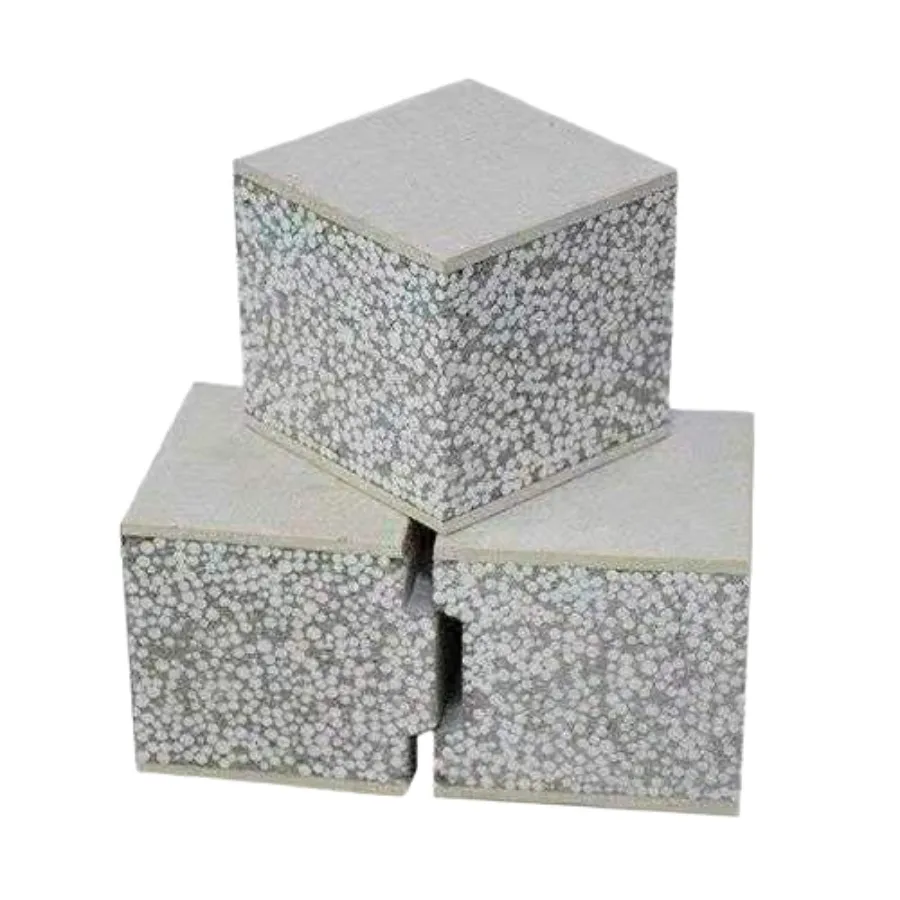

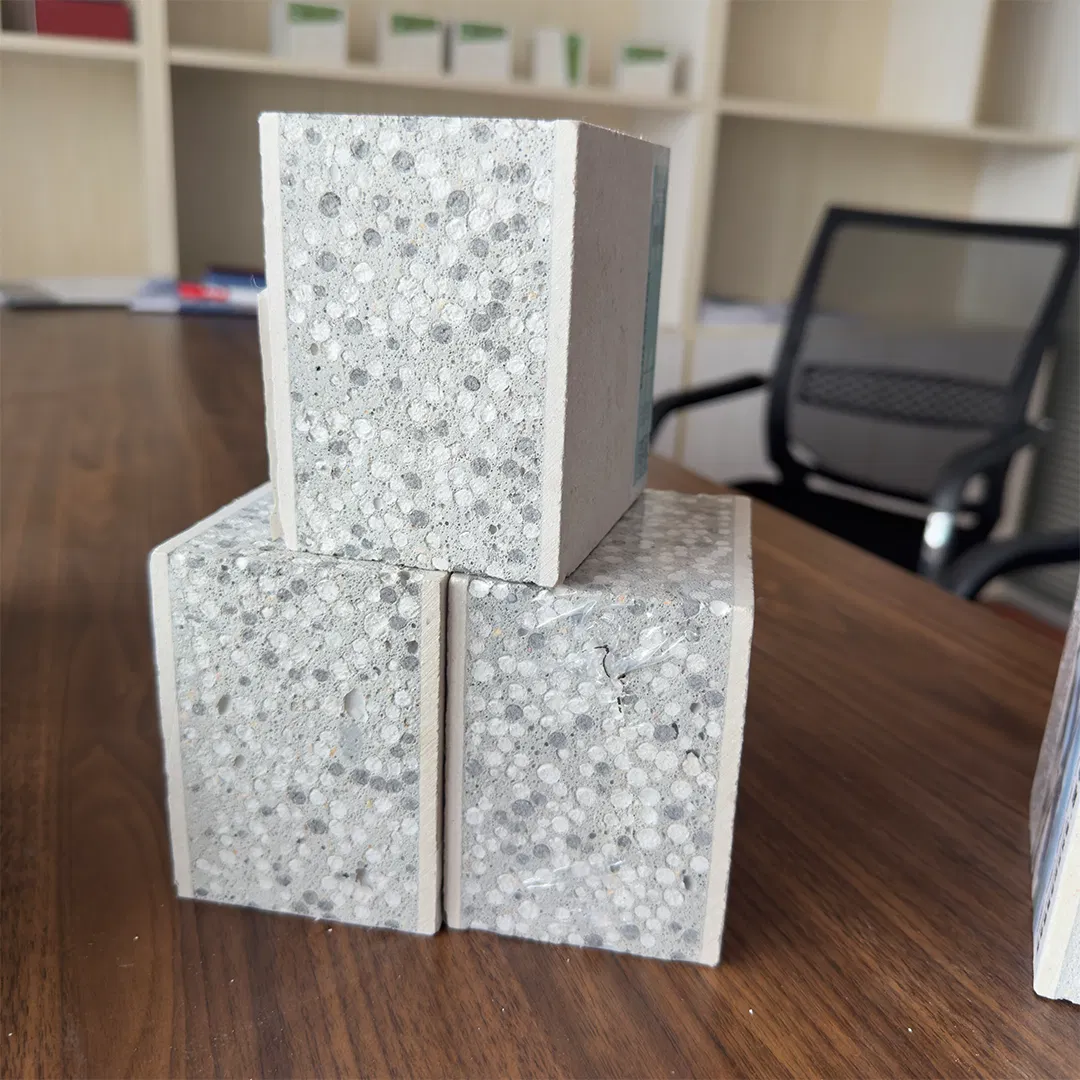

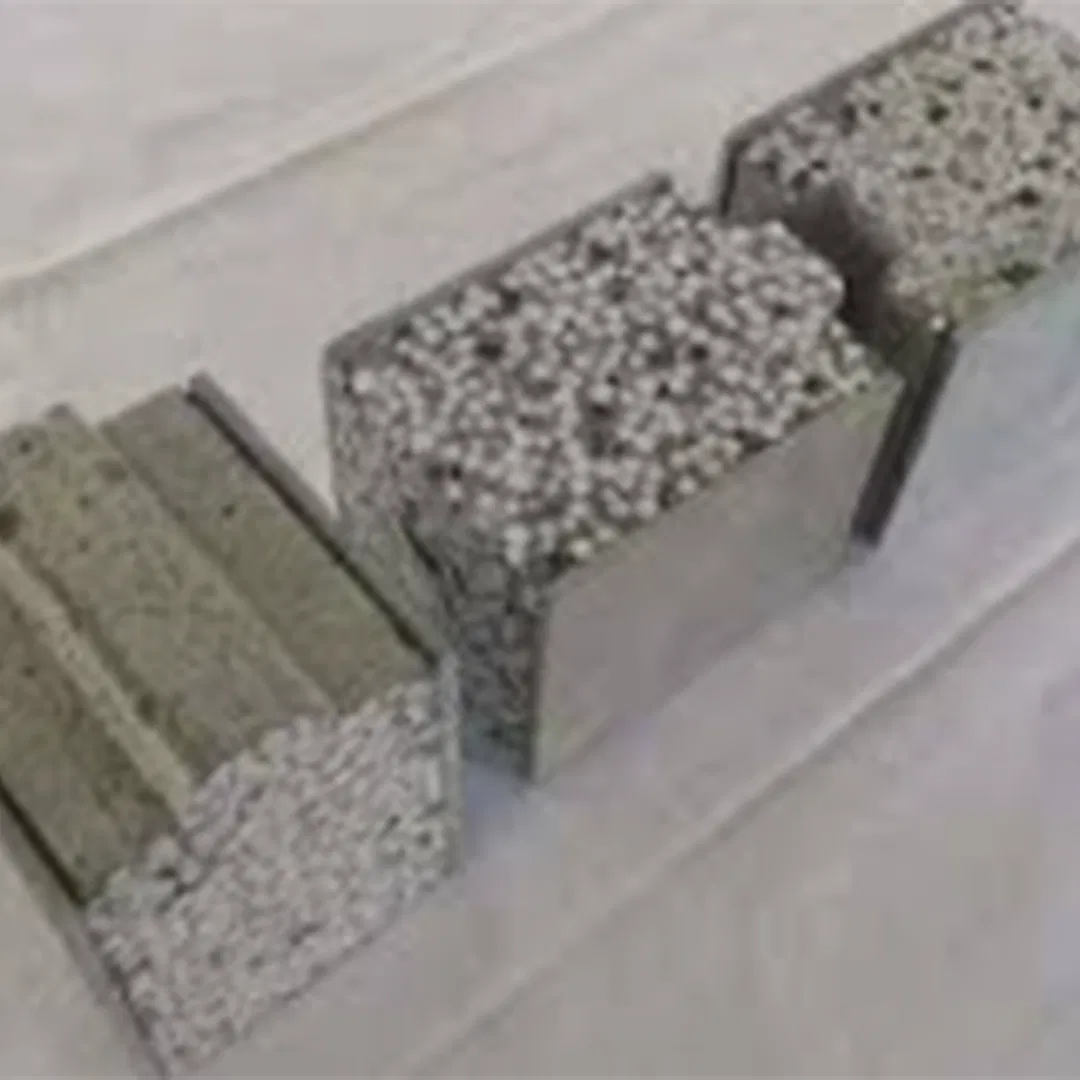

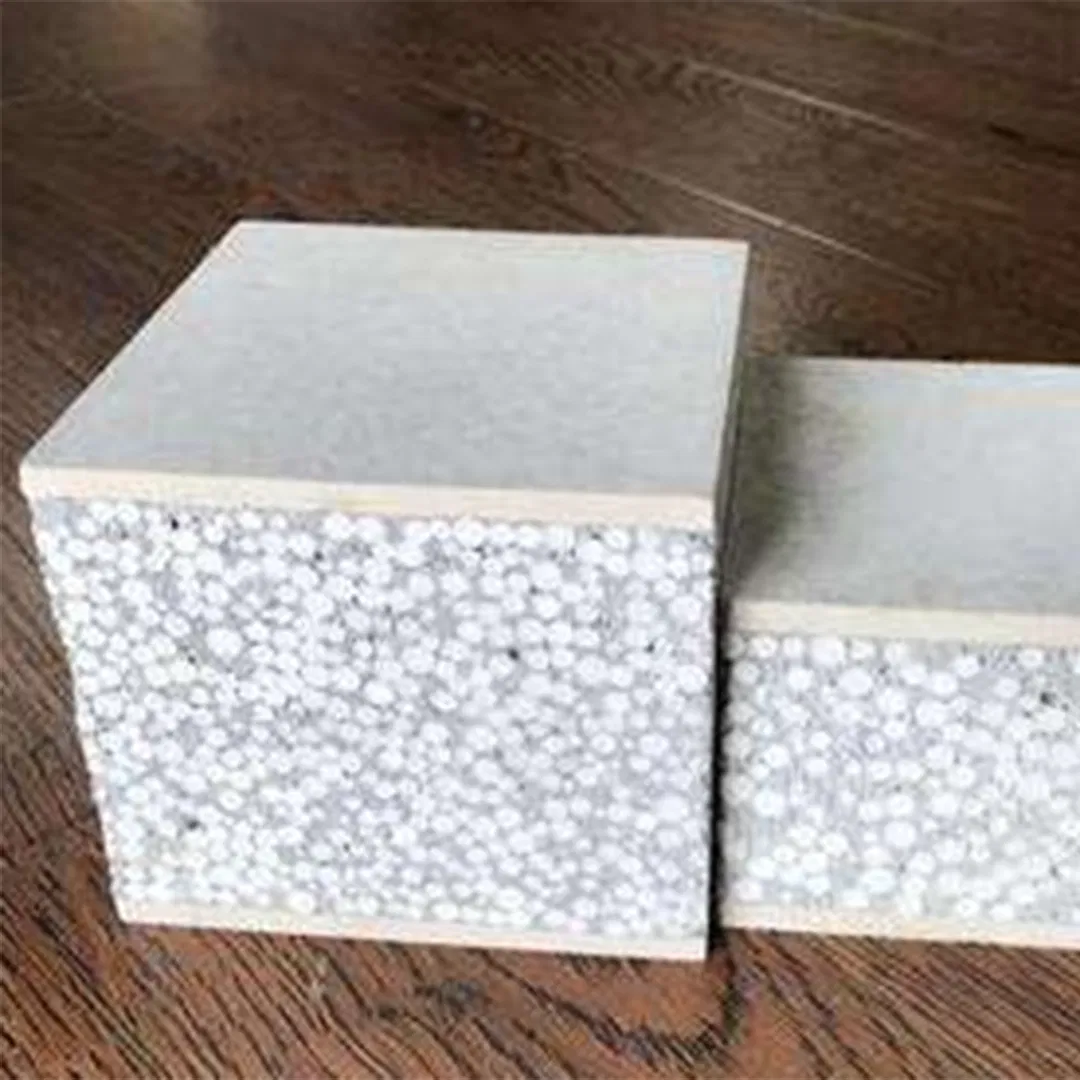

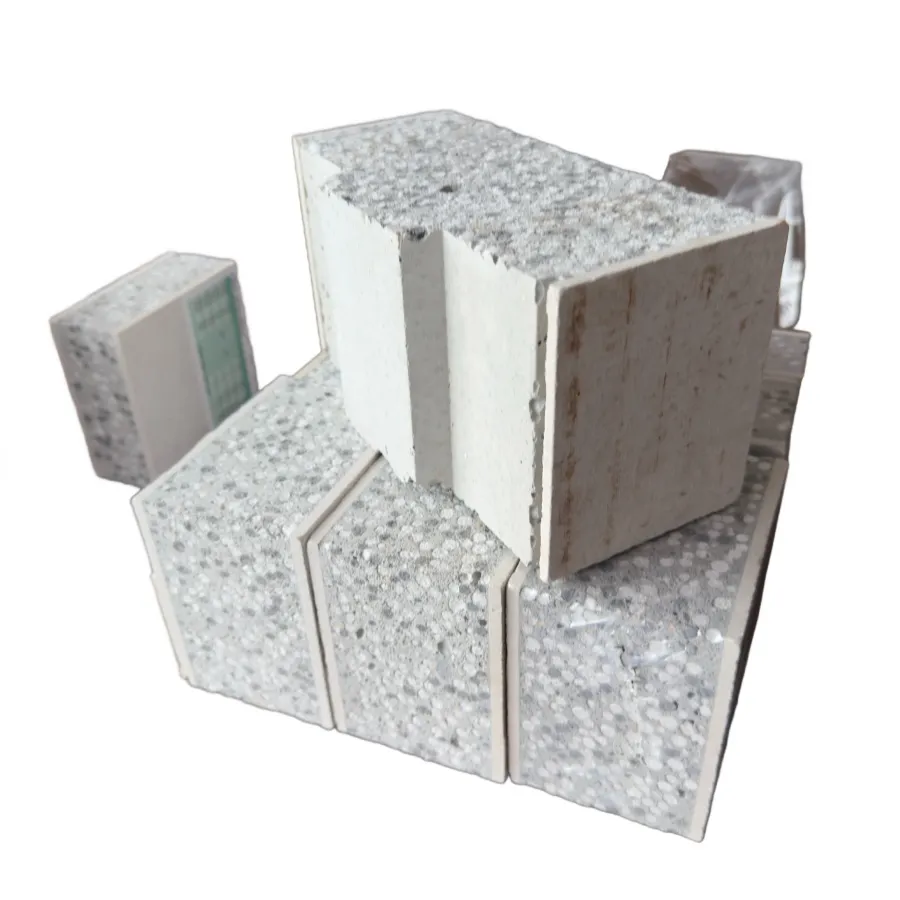

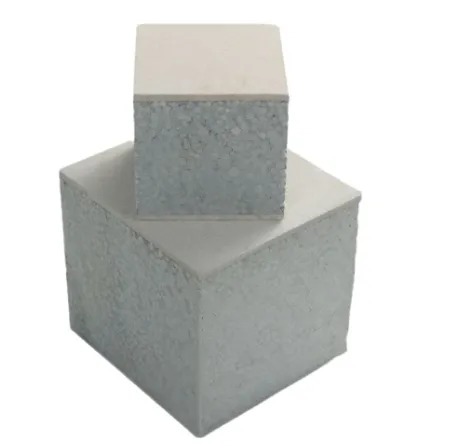

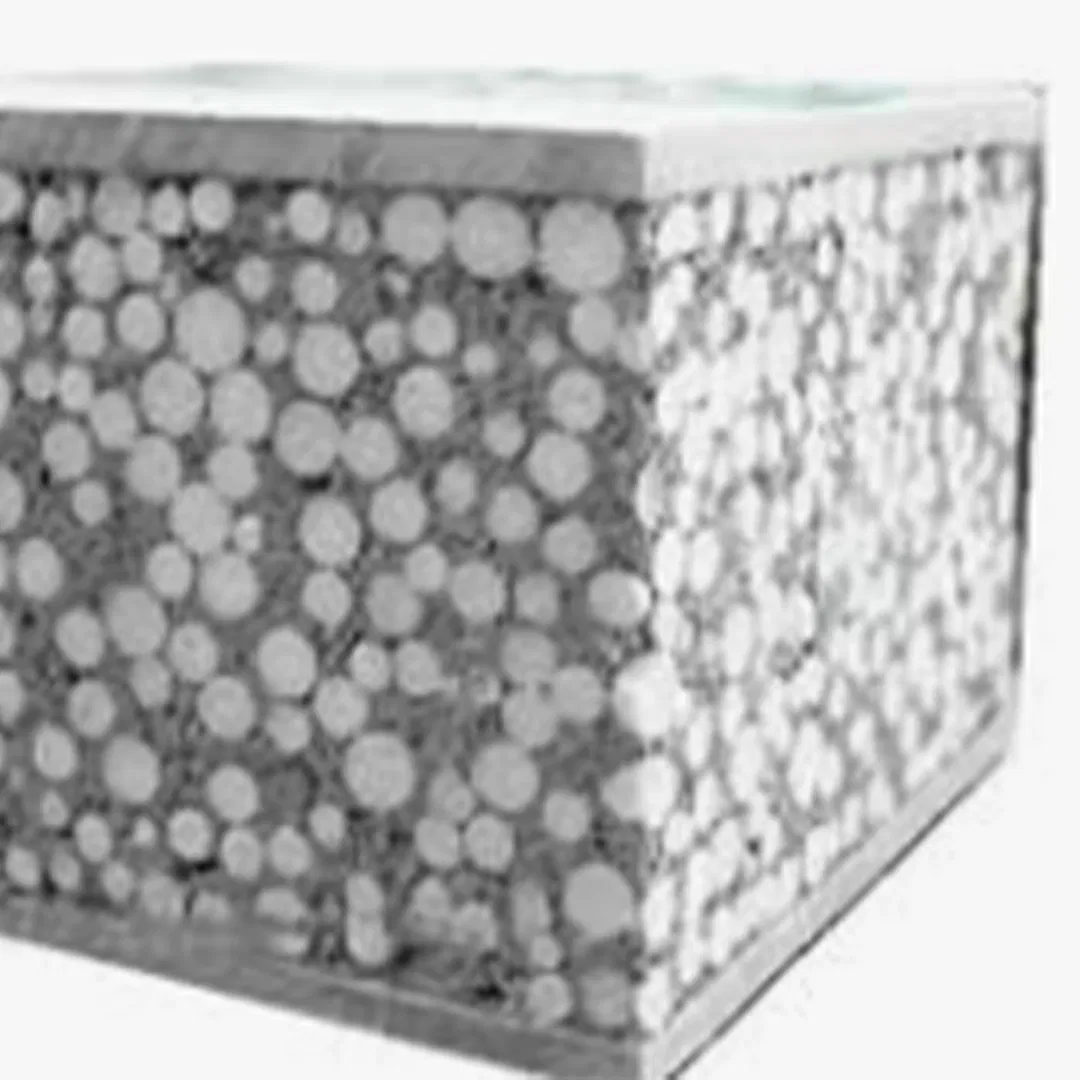

Introducing the EPS Cement Sandwich Panel, also known as the EPS Core Sandwich Panel or Lightweight Insulated Wall Panel. This is a superior prefabricated building material crafted for exceptional performance. It comprises:
This panel is a preferred choice across residential, commercial, and industrial sectors, celebrated for being lightweight, fire-resistant, and thermally insulating while enabling swift installation.
| Parameter | Value / Description | Testing Standard |
|---|---|---|
| Panel Thickness | 50mm to 200mm (customizable) | ASTM C1289 |
| Panel Size | 610mm × 2440mm (standard), up to 3000mm length | ISO 8335 |
| Density (EPS Core) | 18-30 kg/m³ | ASTM D1622 |
| Compressive Strength | ≥0.15 MPa (EPS core) | ISO 844 |
| Thermal Conductivity | 0.033-0.038 W/(m·K) | ASTM C518 |
| Fire Rating | Class A (Non-combustible) | ASTM E84 / EN 13501-1 |
| Sound Insulation | 40-45 dB (for 100mm panel) | ISO 10140 |
| Feature | EPS Sandwich Panel | Brick Wall | Concrete Panel |
|---|---|---|---|
| Weight (kg/m²) | 15-25 | 180-220 | 200-250 |
| Thermal Insulation | Excellent | Poor | Moderate |
| Installation Time | 1-2 days per house | 2-4 weeks | 3-6 weeks |
| Cost Efficiency | 30% cheaper | High labor cost | High material cost |

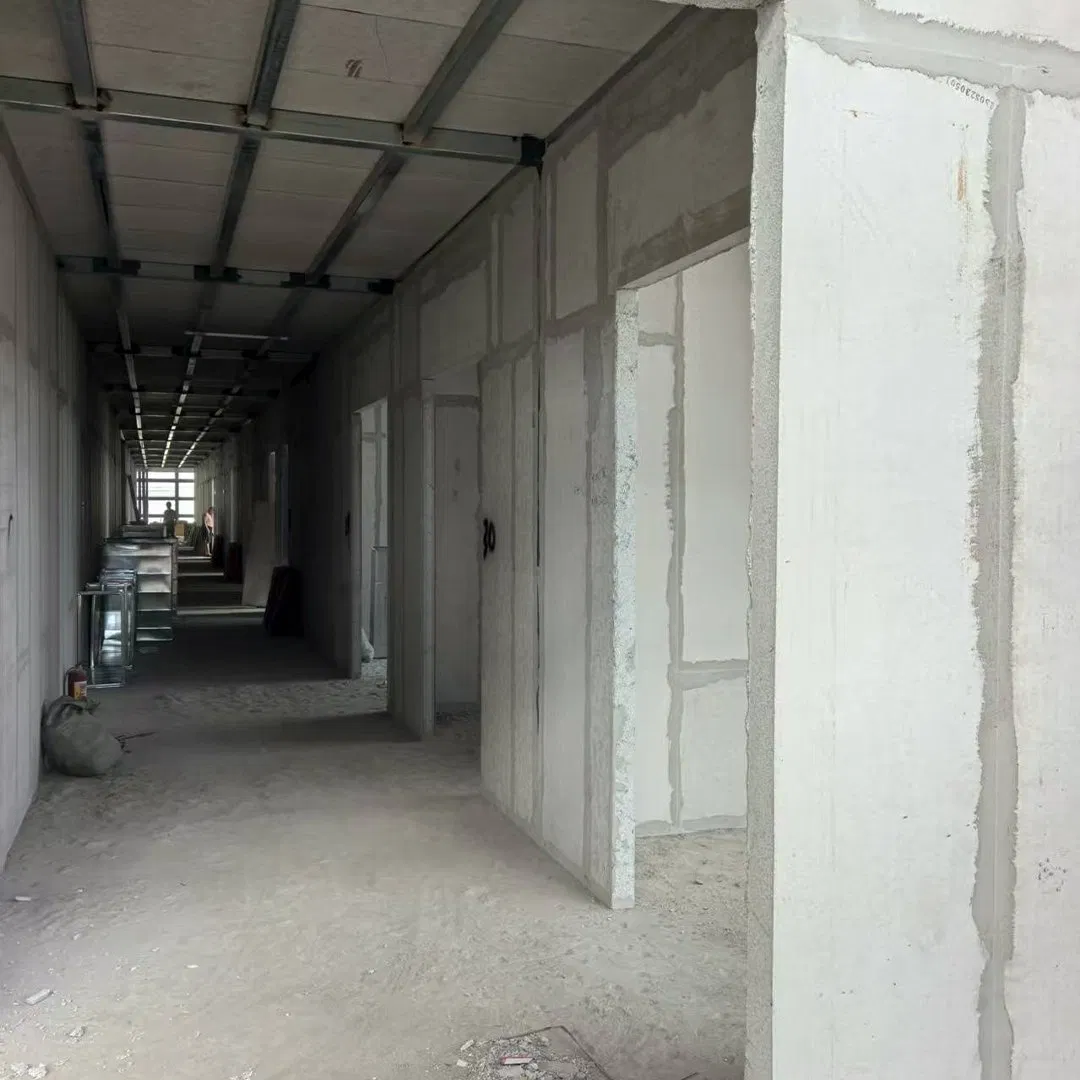

1. Residential Buildings: Exterior walls, partition walls, balconies, prefab houses, villas, and modular homes.
2. Commercial & Industrial: Warehouses, cold storage, factories, office partitions, and soundproof rooms.
3. Specialized Construction: Cleanrooms (hospitals, labs) and temporary housing for disaster relief.

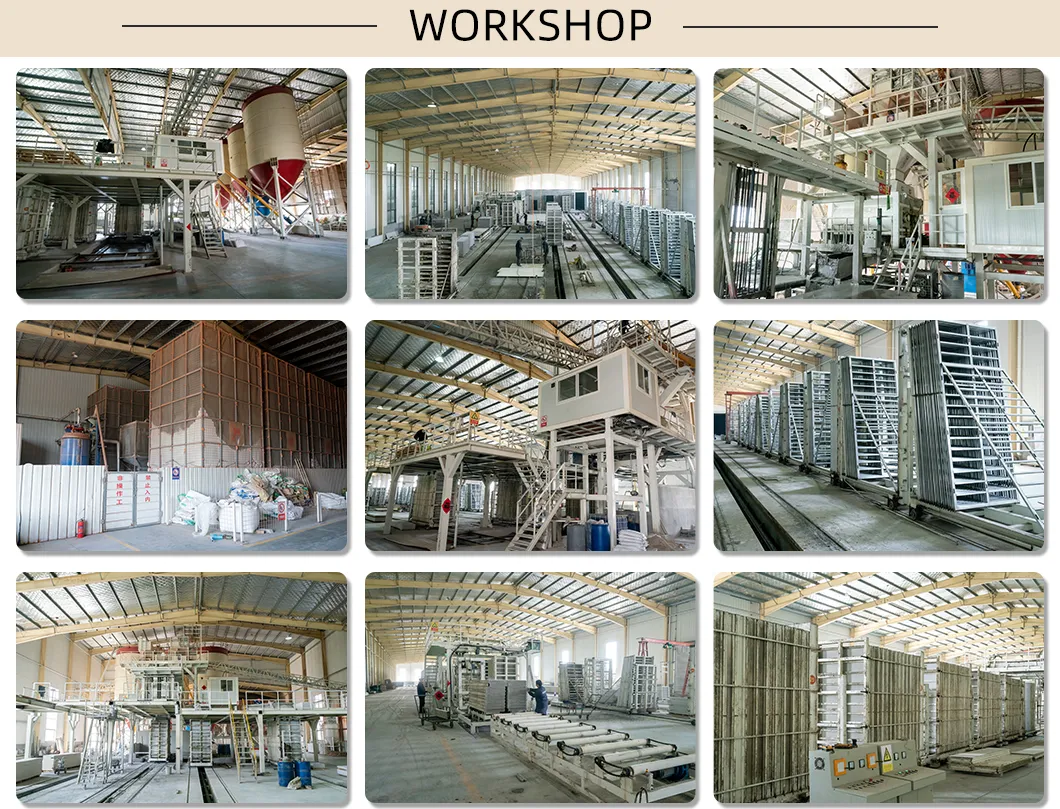

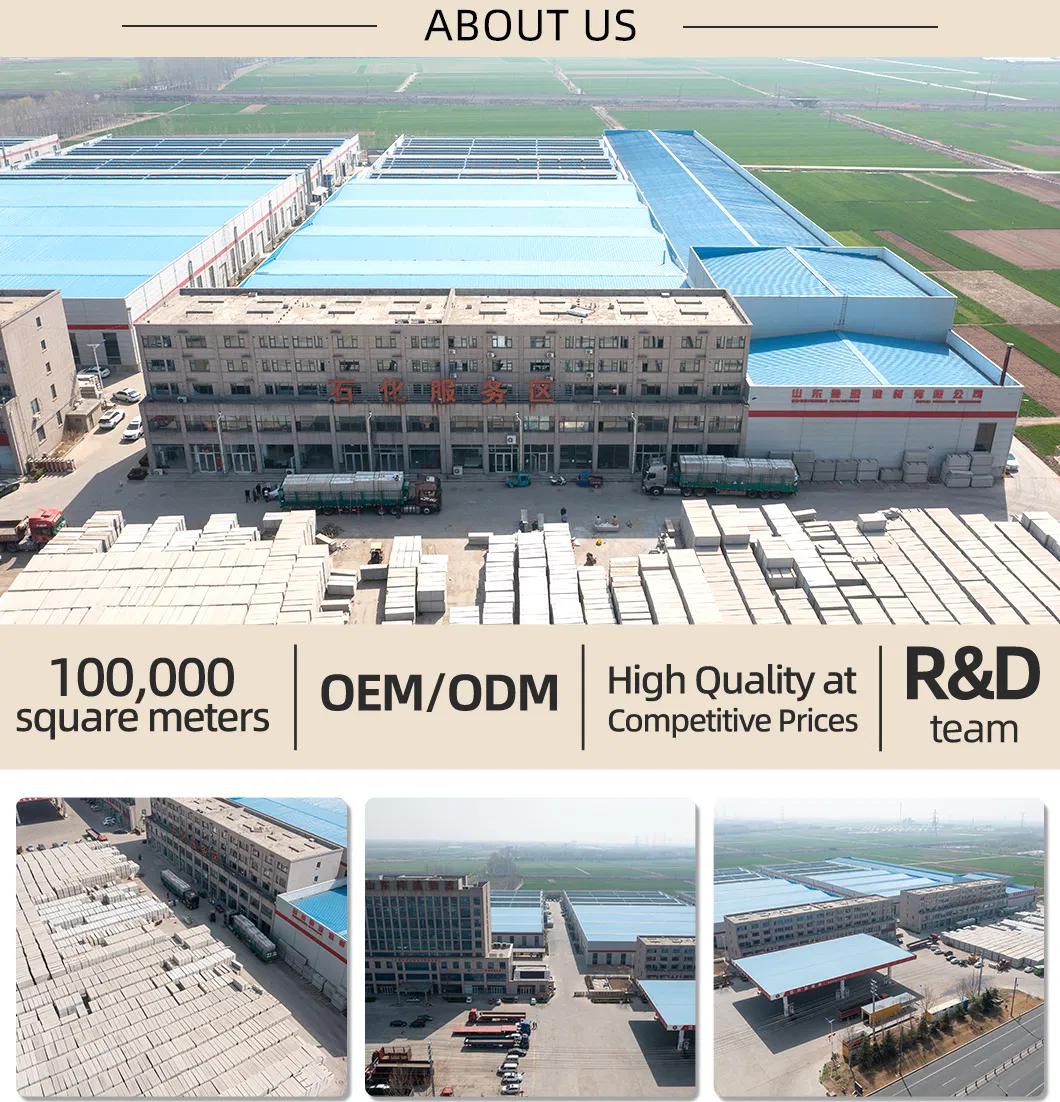

As a high-tech pioneer, the production facility covers an impressive area of 20,000 square meters. With an annual production capacity surpassing 1 million square meters of lightweight energy-saving composite wall panels, we are committed to empowering the future of construction.
Our flagship offering is renowned for exceptional thermal insulation, Class A fire resistance, superb soundproofing, and a streamlined rapid installation system.
Certified with top-tier industry standards such as ISO 9001, CE, SGS, ASTM, and EN, ensuring dedication to quality and safety. Sustainability is reflected in Green Building Certifications, including LEED and BREEAM.
