Basic Information
| Model NO. | NFHB9000 | Function | Cooling & Heating |
|---|---|---|---|
| Control Mode | Remote / Wall Button / Phone | Certification | ISO, CE |
| Rated Cooling | 9000BTU (2500W) | Rated Heat Pump | 9500BTU (2500W) |
| Power Supply | 220-240V / 115V Options | Refrigerant | R410A |
| Unit Sizes | 734*398*296 mm | Net Weight | 27.8kg |

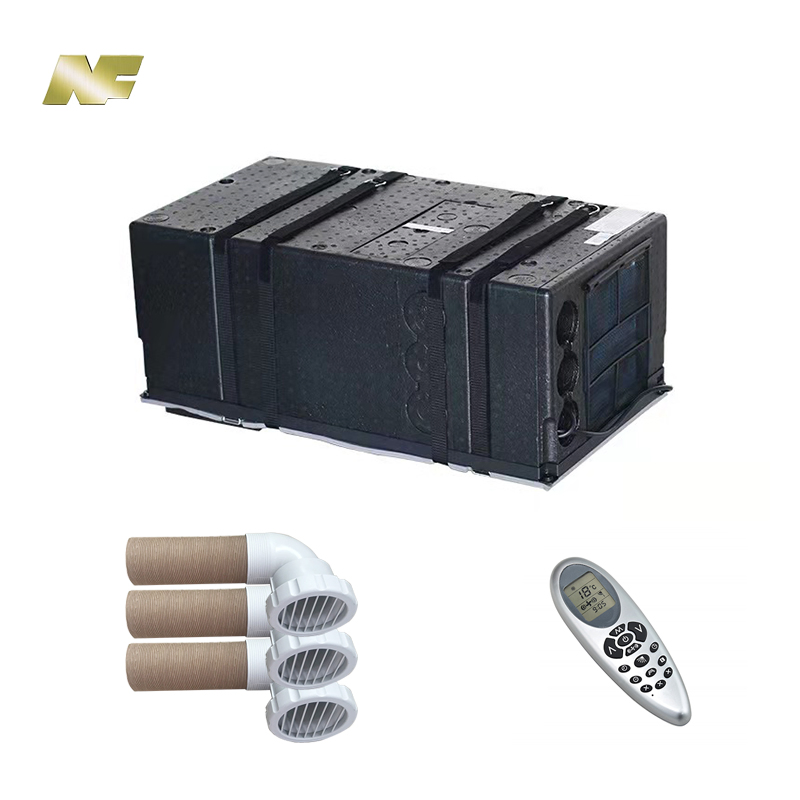

Product Description

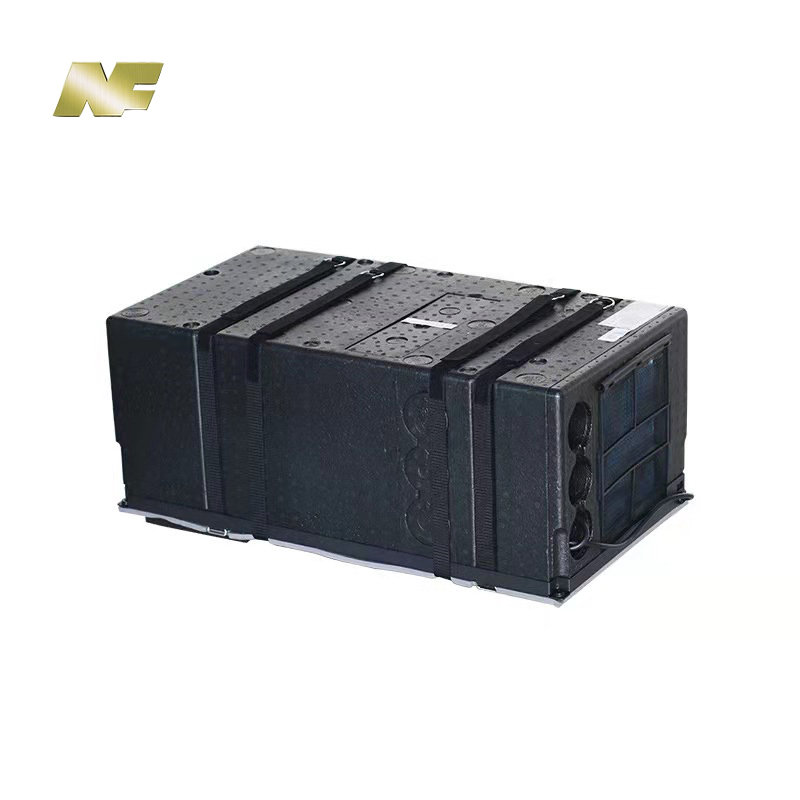

This bottom air conditioner has been designed and built to be installed on vehicles such as motor homes, caravans, and special vehicles in order to improve the internal temperature. When the weather is hot, it supplies cool and dehumidified air; when the weather is cold, it supplies hot air without replacing the vehicle's original heating system.

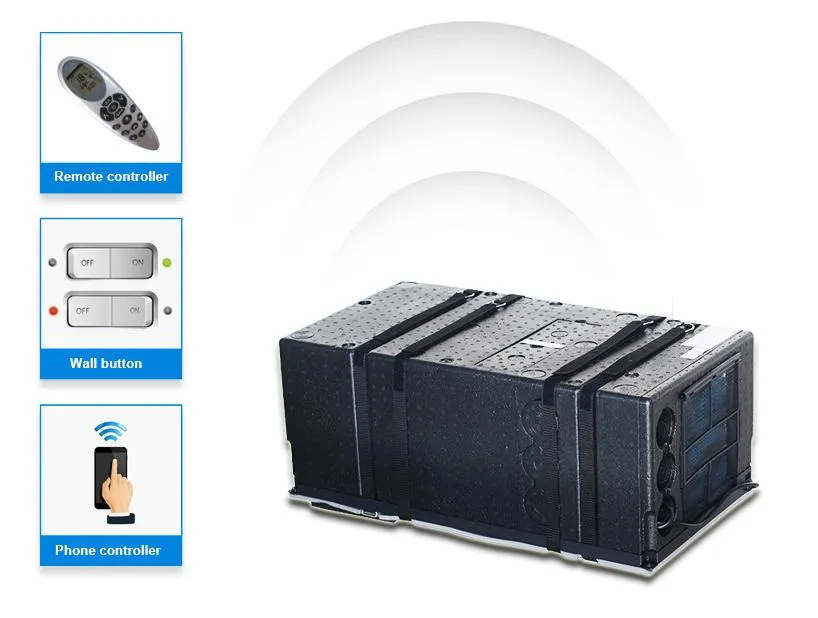

Three Controller Panel Options:
Technical Parameters
| Parameter Item | Specifications |
|---|---|
| Extra Electric Heater | 500W (except 115V version) |
| Power Consumption | Cooling 900W / Heating 700W+500W |
| Current | Cooling 4.1A / Heating 5.7A |
| Compressor | Vertical Rotary (Rechi or Samsung) |
| Fan System | One Motor + 2 Fans |
| Frame Material | One-piece EPP Metal base |

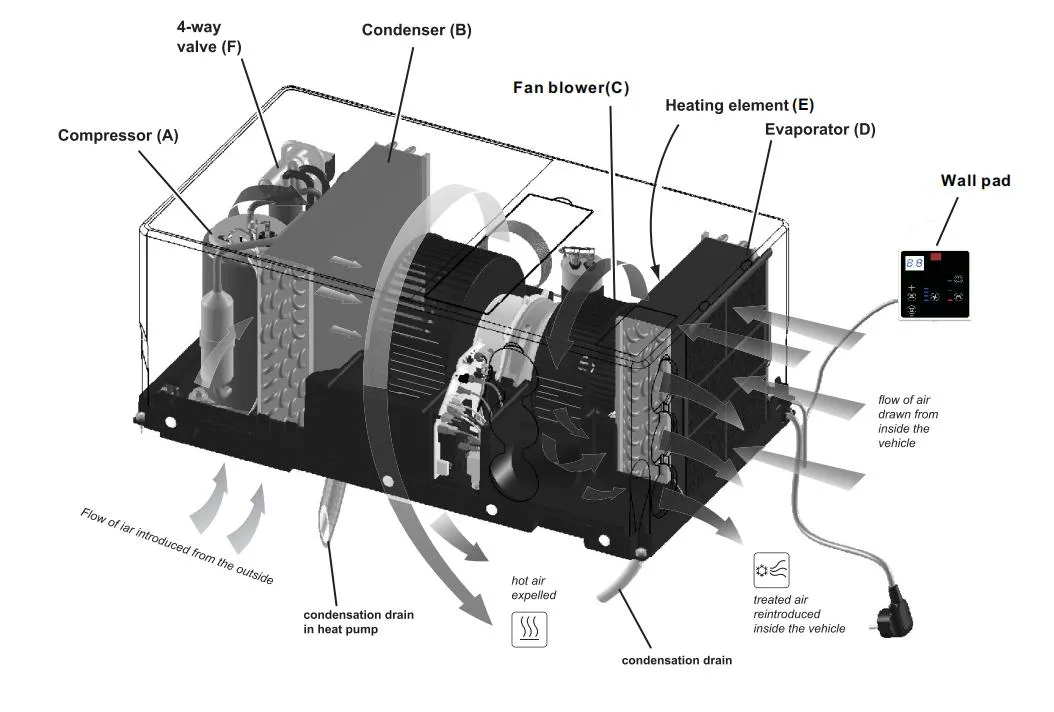

Internal Structure:

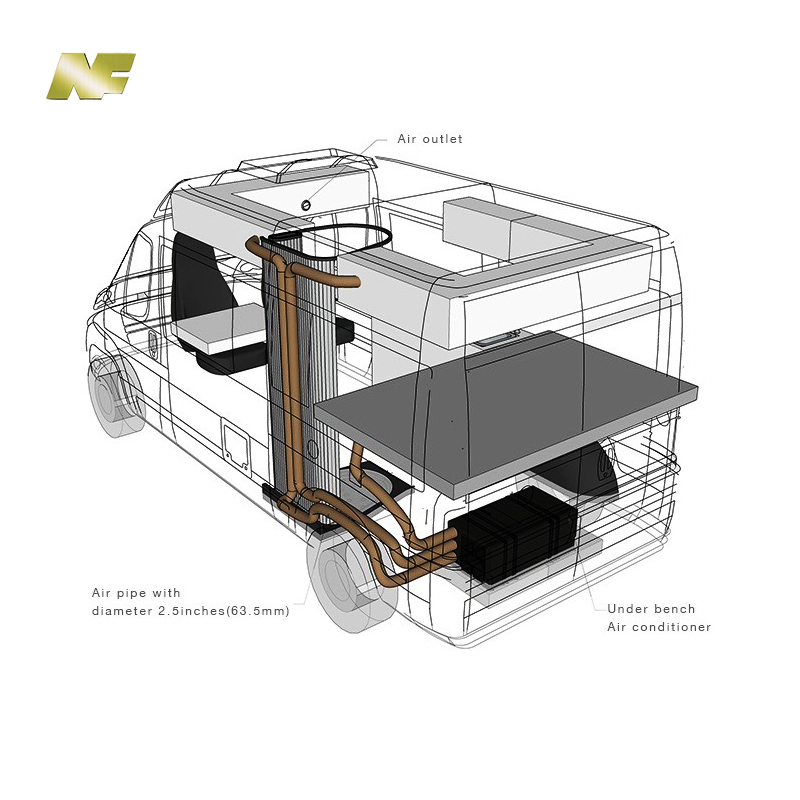

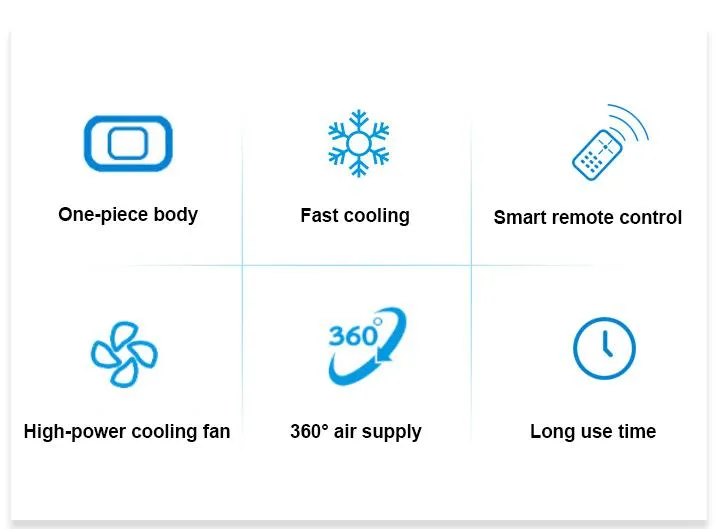

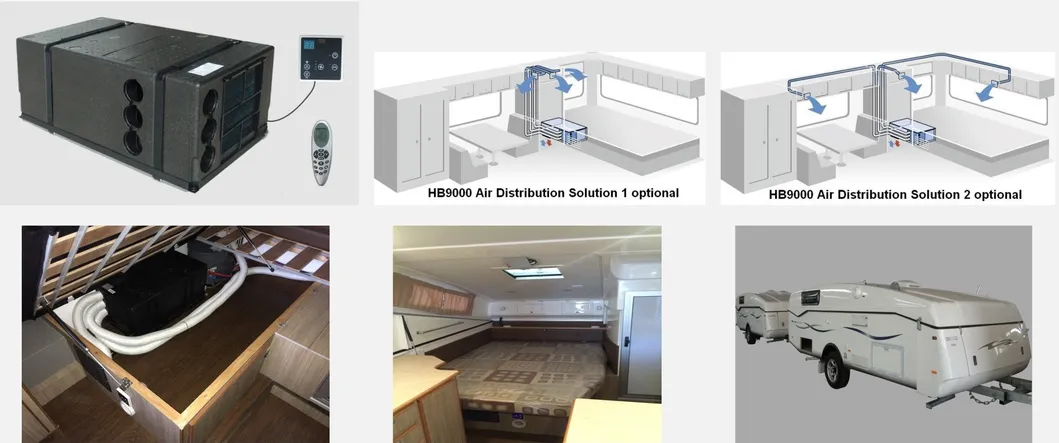

Installation & Advantages
Application & Maintenance

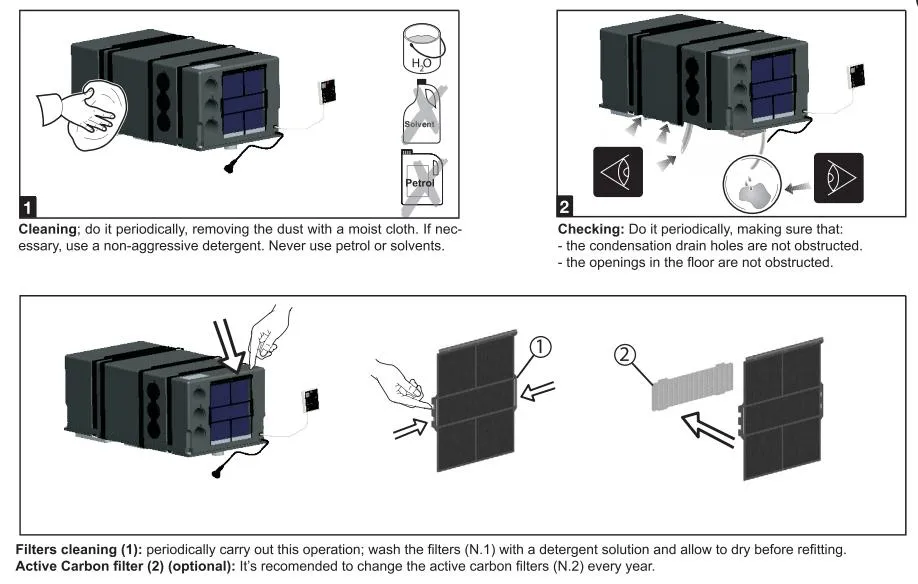

Routine Maintenance Schedule:

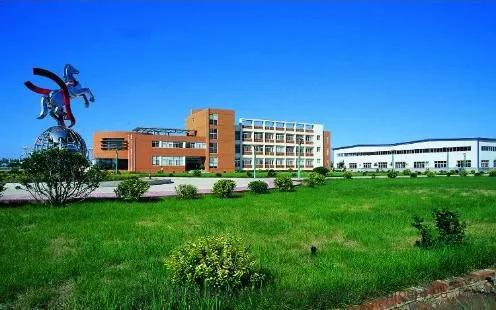

Manufacturing Excellence
With over 30 years of experience, our group operates 5 specialized factories dedicated to producing high-quality heaters and automotive parts. Our production units are equipped with high-tech machinery and strict quality control testing devices.
We hold international certifications including ISO/TS16949:2002, CE, and E-mark. Our focus is on continuous innovation and design to meet global standards and the specific demands of our international customers.
Frequently Asked Questions
