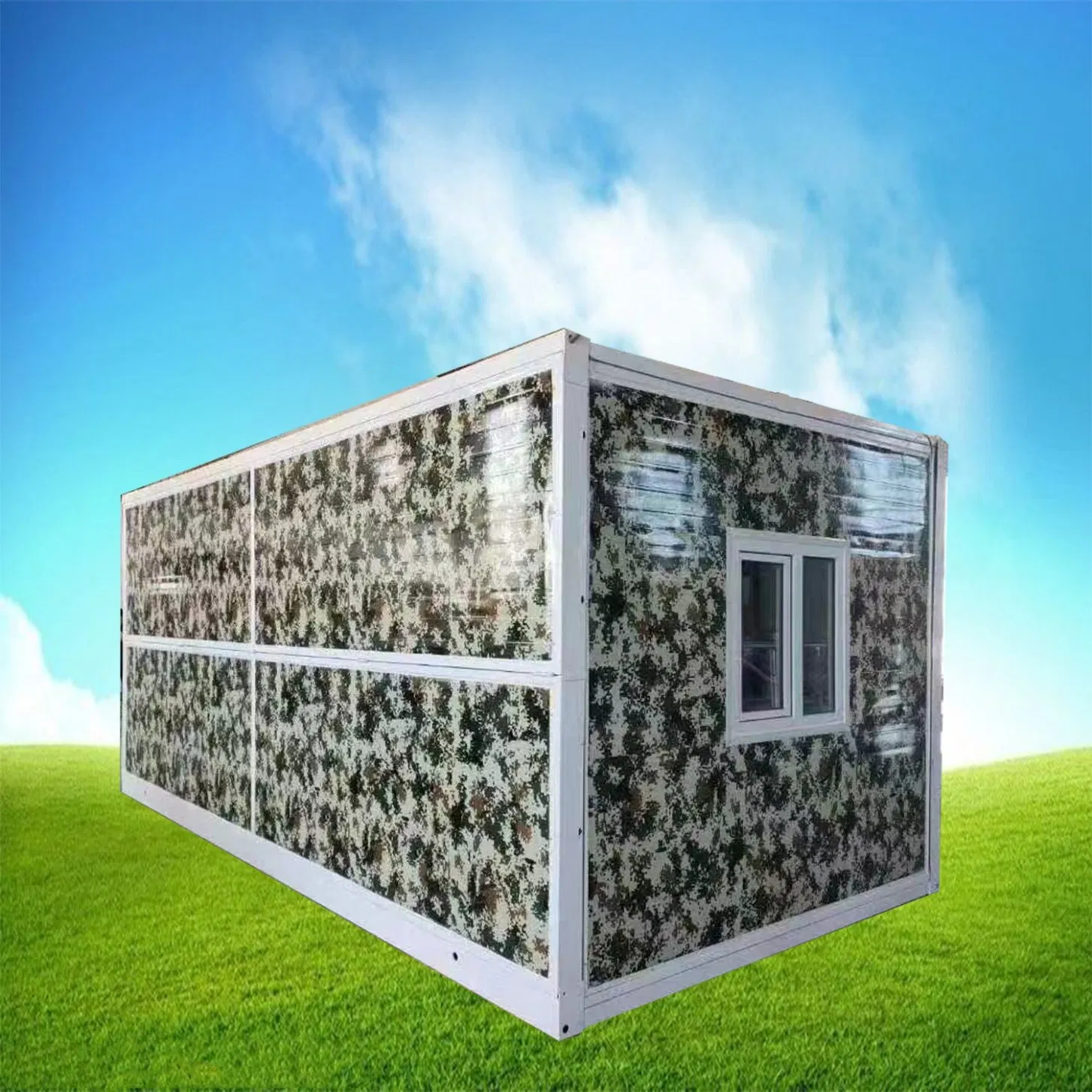

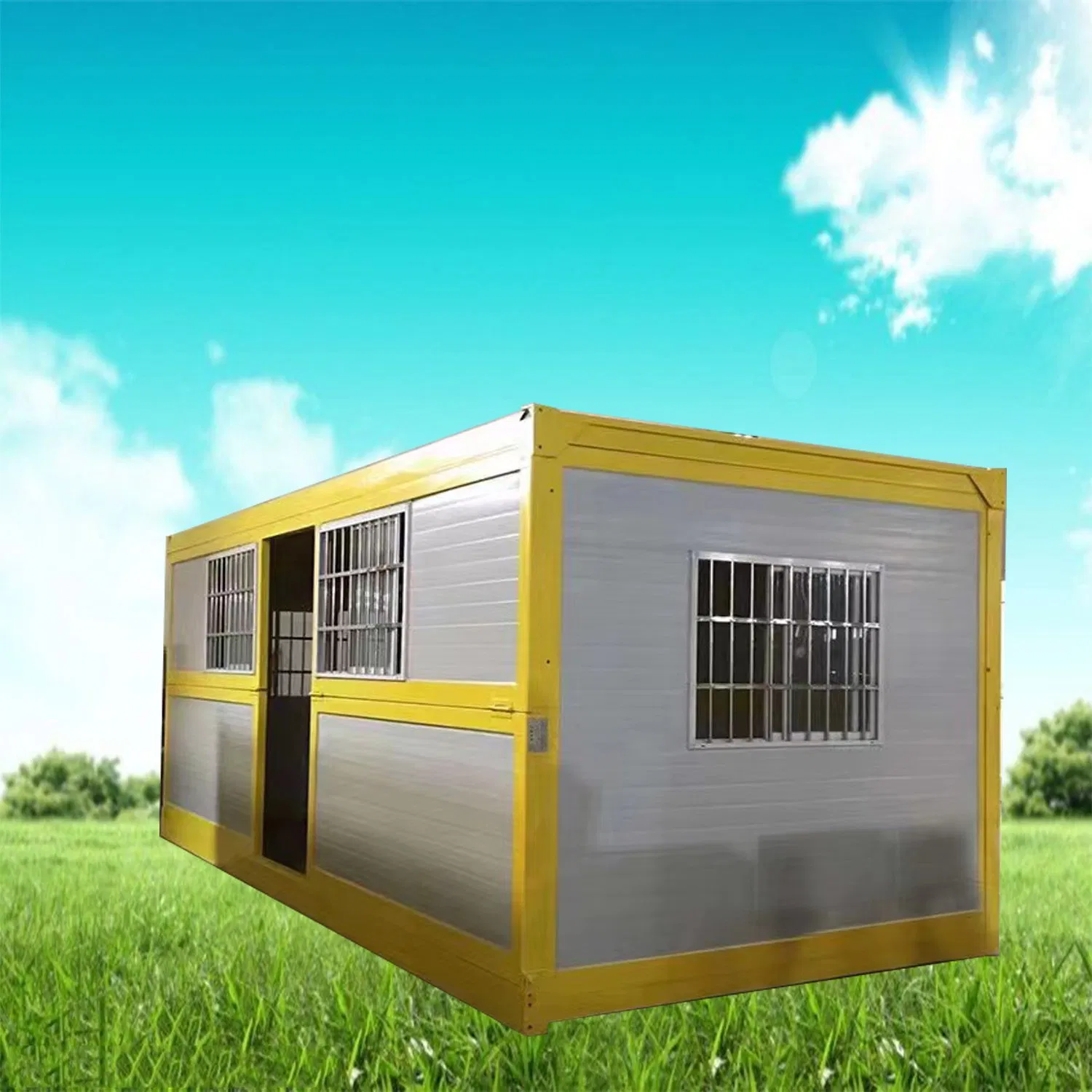

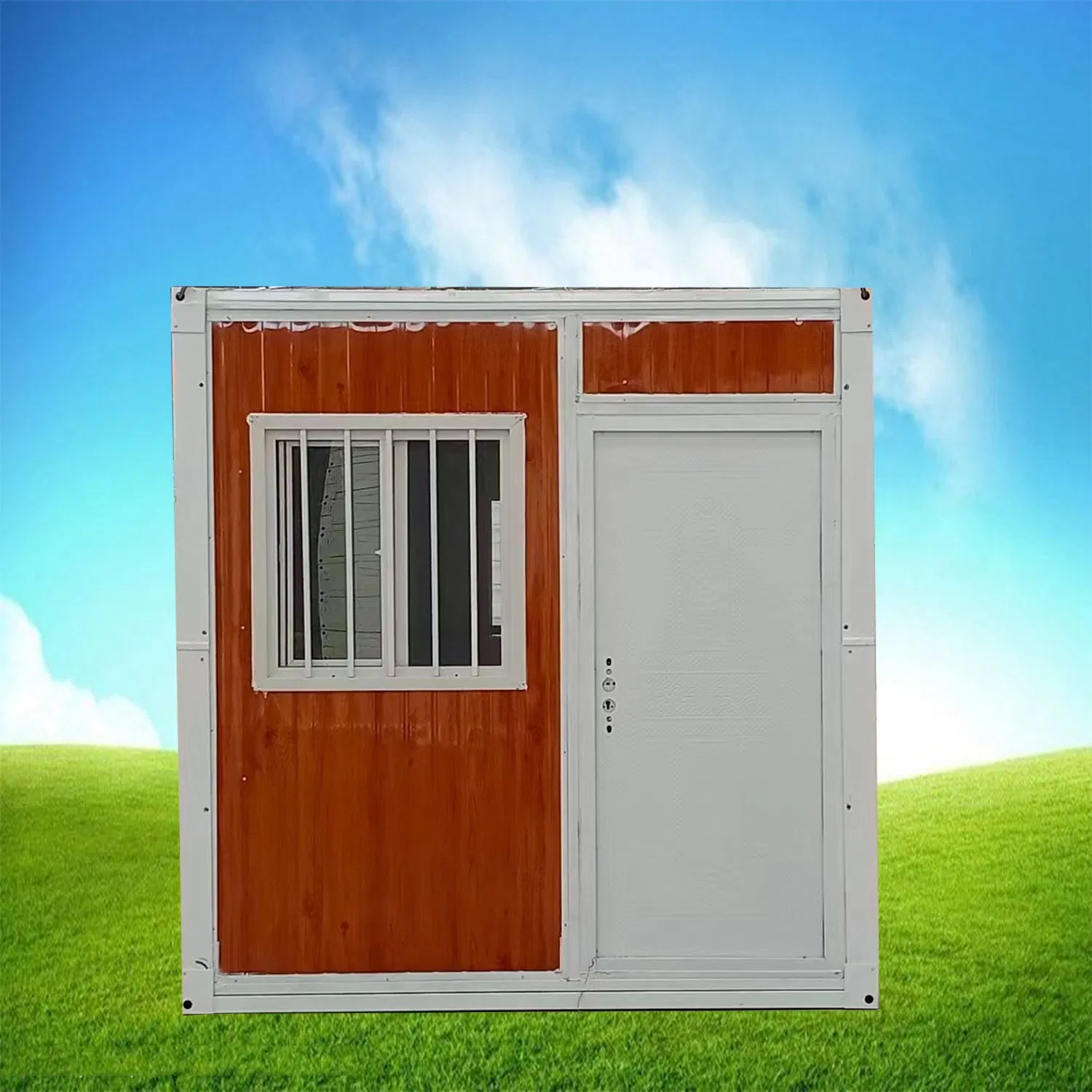

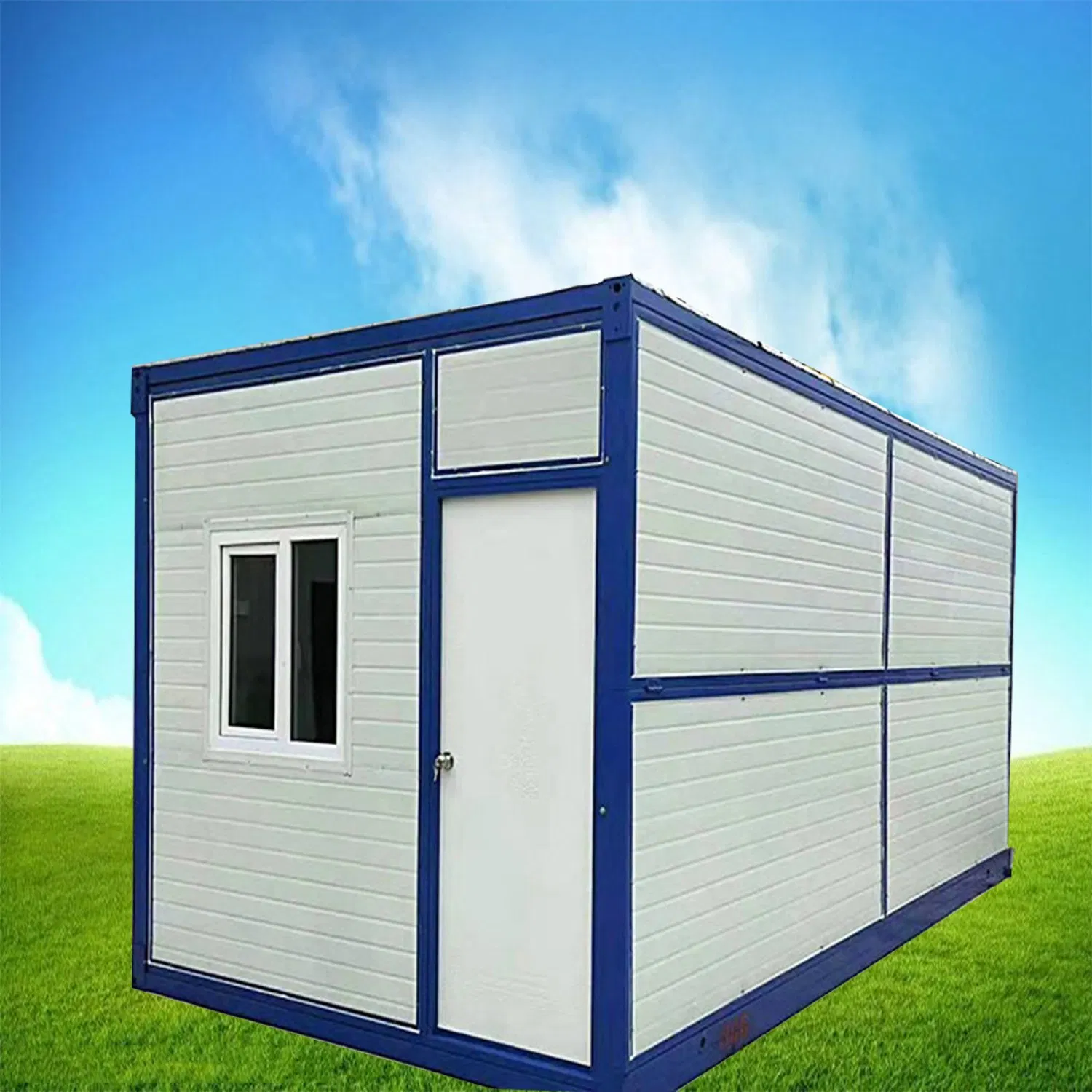

Stayvora House
1 / 5
Main Features: Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance.

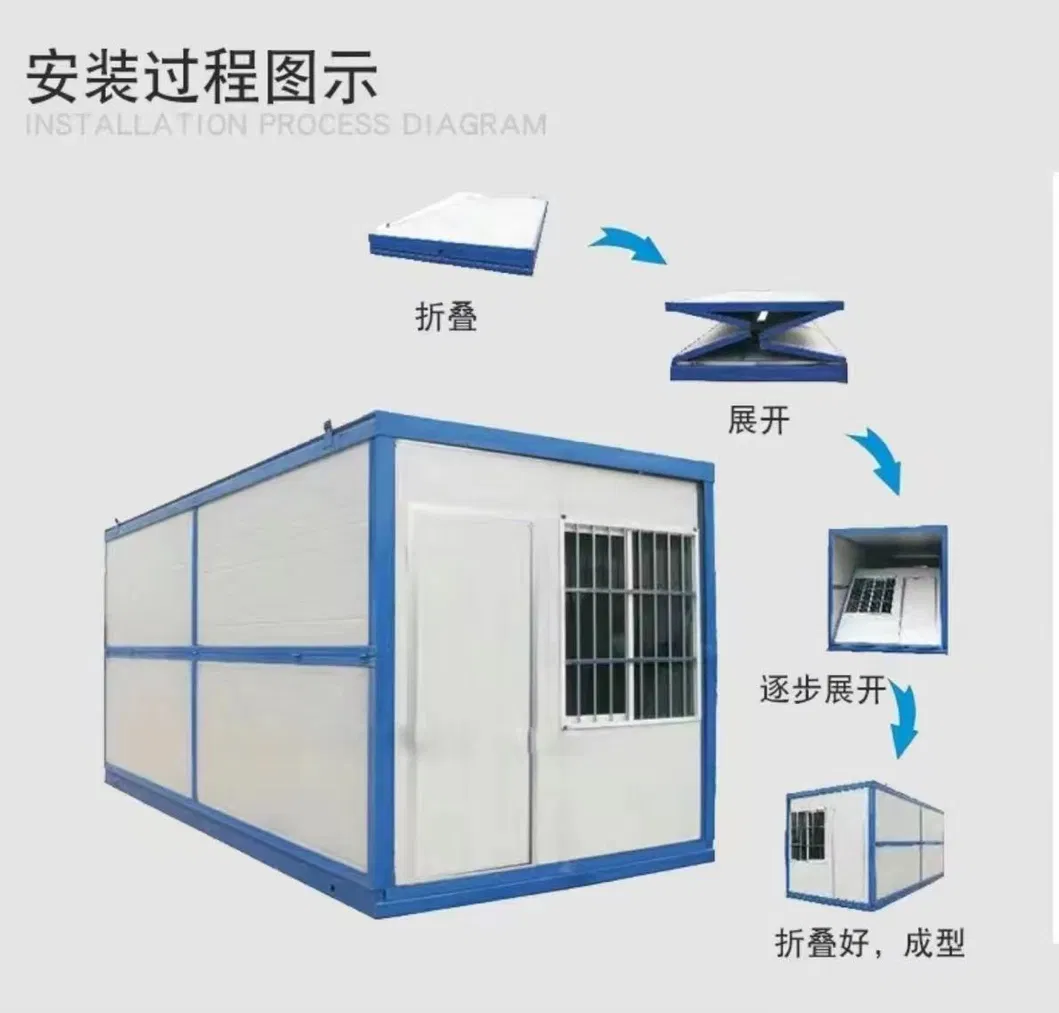

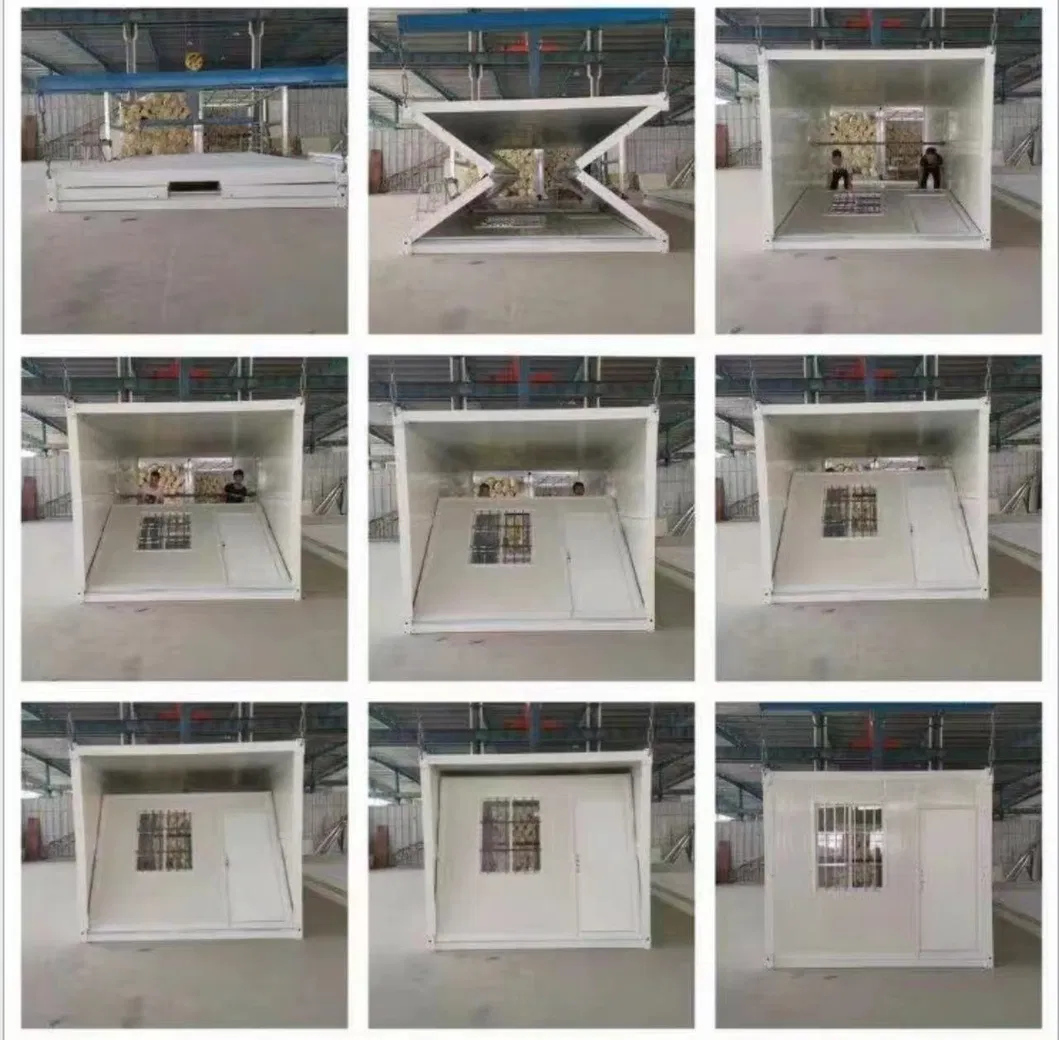

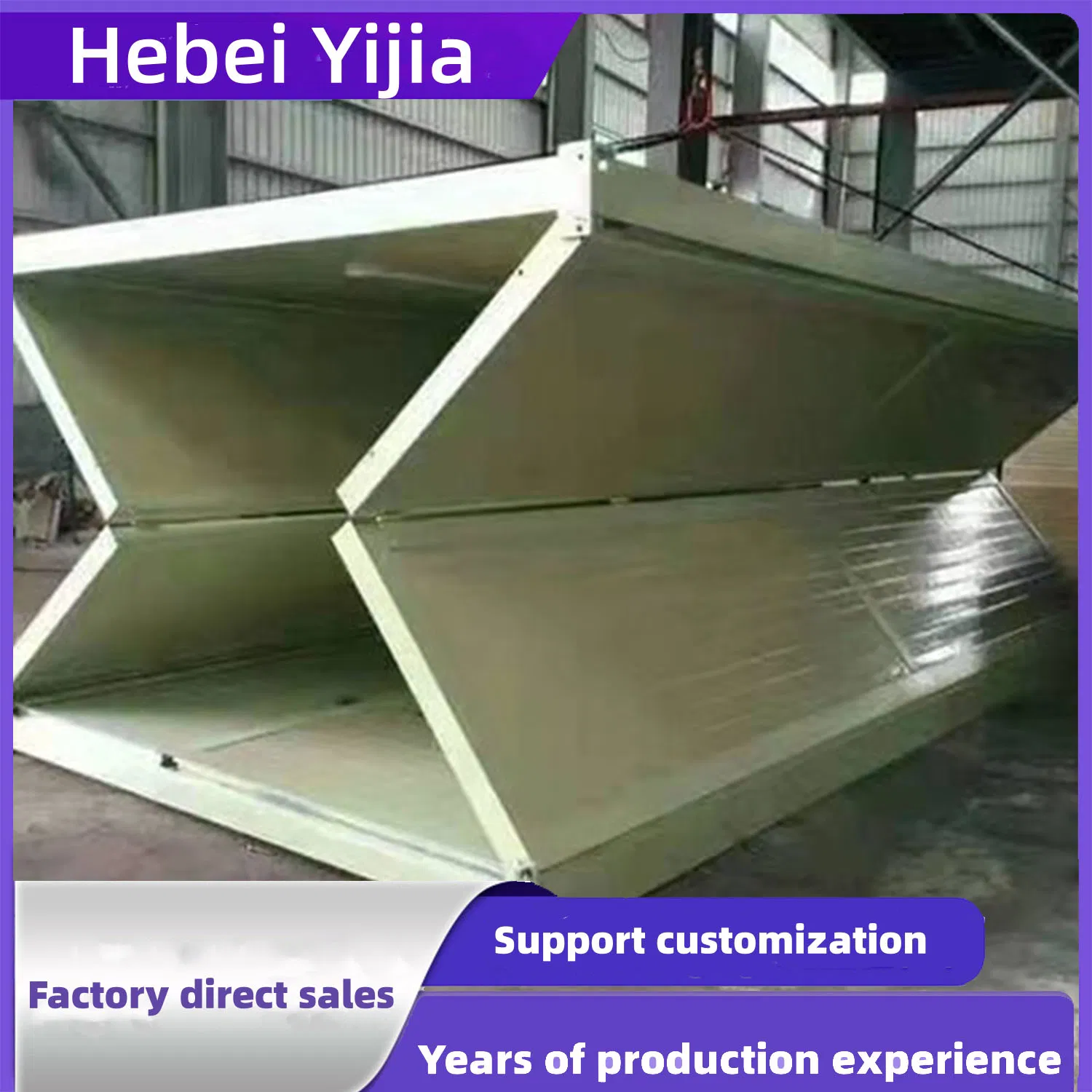

No need for flooring, easy disassembly and assembly. 2-3 people can operate, installation only takes 3-5 minutes, and it opens as a whole.

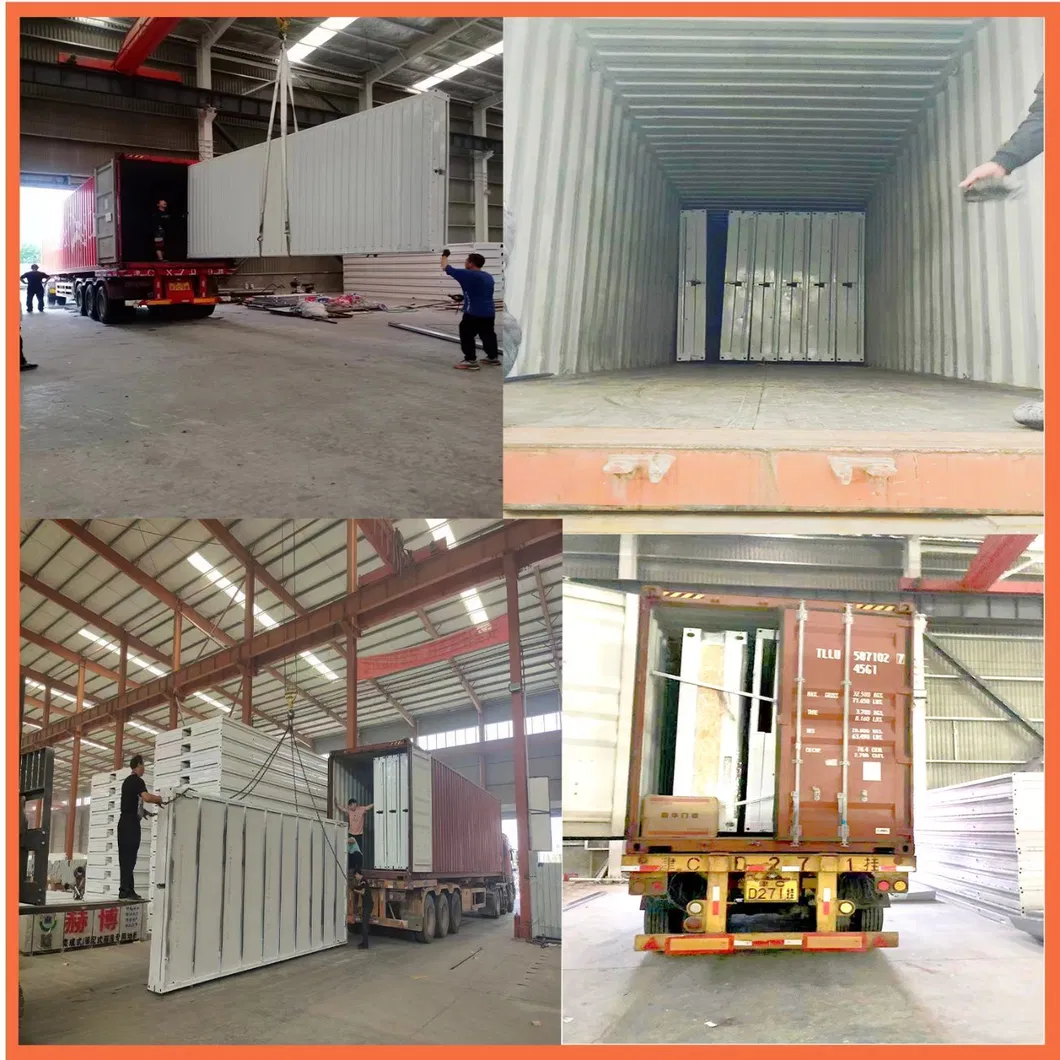

A 6.8m small car can accommodate 5 sets. 17.5m flatbed trucks can accommodate 20-23 sets.
A set of places can be stacked and stored in double layers, significantly reducing storage footprints.
Compared to traditional color board houses, it saves 2/3 of temporary construction costs. The service life can reach over 10 years even with repeated folding hundreds of times.
| Component | Specification Details |
|---|---|
| Steel Structure | 100% steel frame material |
| Wall Panel | 75mm EPS/Rock wool sandwich panel |
| Wall Color | Custom Colors |
| Roof | 50mm EPS/Rock wool sandwich panel |
| Window | Aluminium alloy sliding window (920mm * 920mm) |
| Security Door | High quality anti-theft door (1970mm * 970mm) |
| Floor | Fireproof panel 15mm + PVC grain board |
| Floor Load | 250kg/sqm |
| External Size | 5800*2480*2500mm |
| Folding Size | 5800*2480*330mm |
