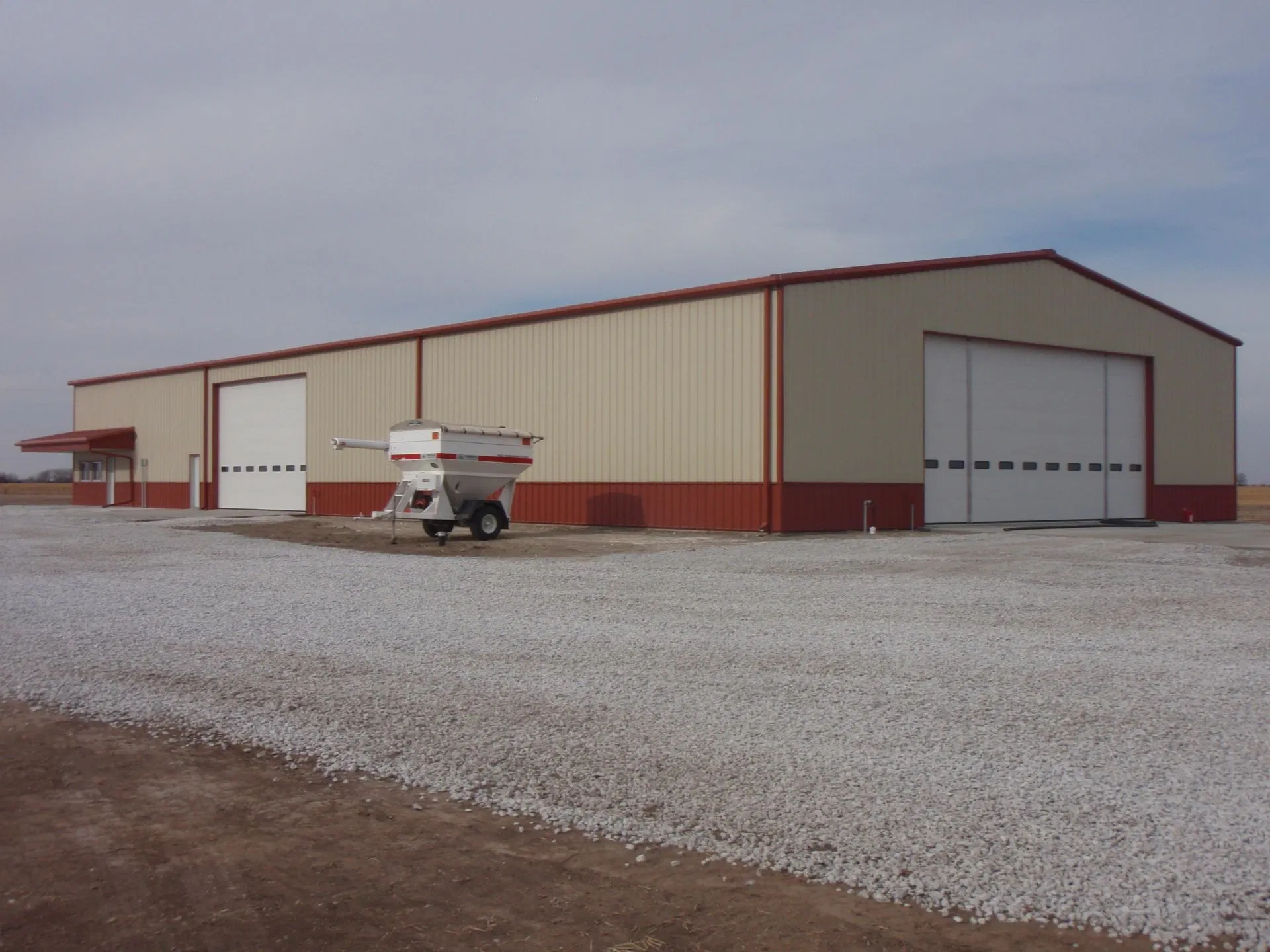

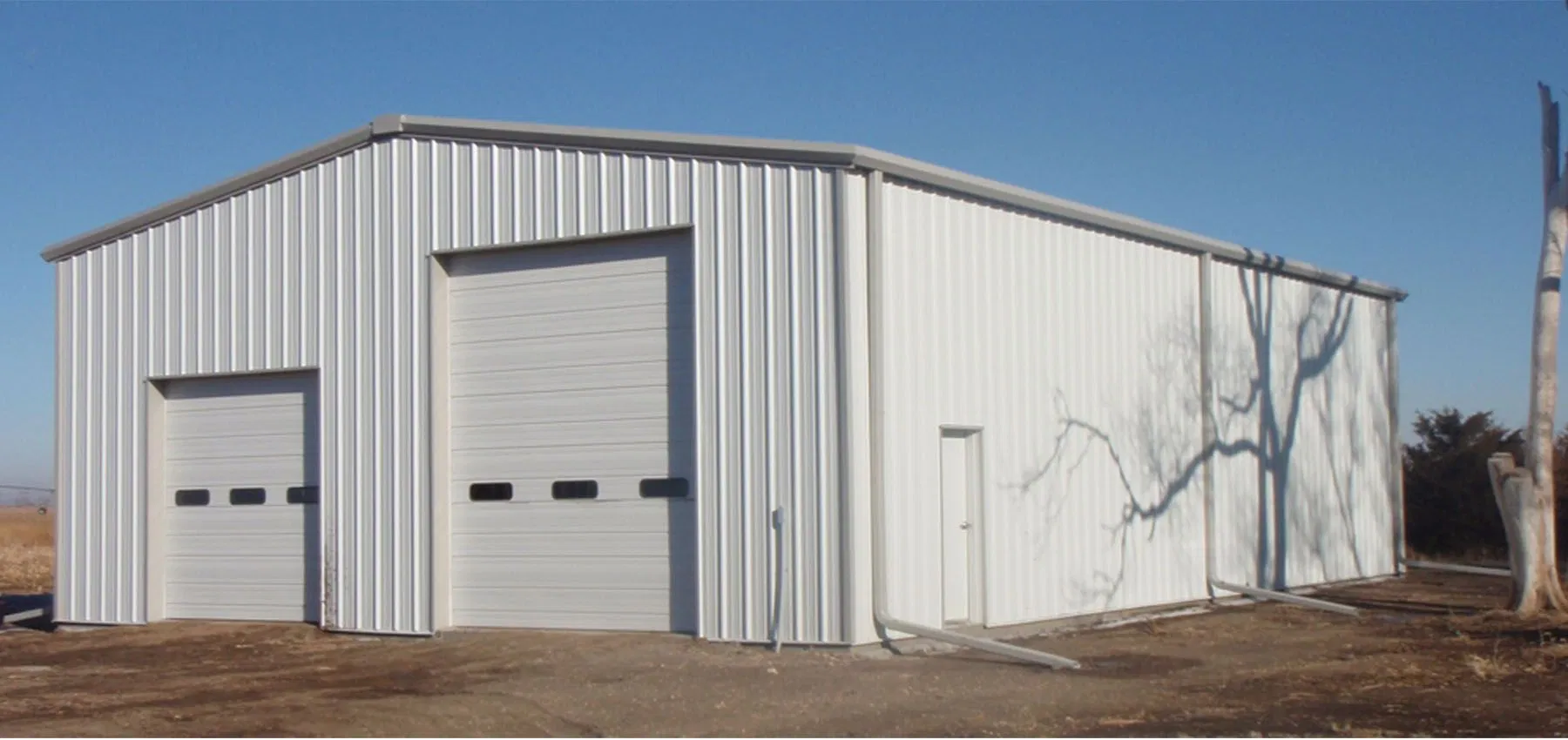

Qingdao Manufacture Cheap Metal Steel Frame Fabricated Ware House Buildings

1 / 5

Qingdao Manufacture Cheap Metal Steel Frame Fabricated Ware House Buildings

Customization:	Available
After-sales Service:	Technical Support
Connection Form:	Bolt Connection

Send Inquiry

Product Description

Basic Specifications

Model NO.

TW7715

Residential Wall Structure

Bottom Wall Beam

Standard

AISI, ASTM, DIN, GB

Steel Type

Low-alloy High-tensile

Main Frame

Welded H Steel

Surface Treatment

Painted or Galvanized

Warranty

50-70 Years

Production Capacity

20000 Ton/ Year

Carbon Steel

Q235

Application

Workshop, Warehouse, Office

✓

Product Overview

Prefabricated steel structure building consists of factory-made components that are assembled on-site to form a complete rigidity system. Due to the high strength grade of steel, these structures are highly reliable and material-efficient compared to concrete or wood.

Key Characteristics

⭐ High Strength & Lightweight: Easier to transport and ideal for large spans or high-rise structures.
⭐ Seismic Performance: Uniform internal structure provides better resistance to impact and dynamic loads.
⭐ Fast Installation: Highly mechanized manufacturing ensures precision and rapid on-site assembly.
⭐ Environmental Friendly: Minimal construction waste; materials are fully recyclable.
⭐ Sealing Performance: Supports excellent air and water tightness for pressure containers or specialized storage.

📋

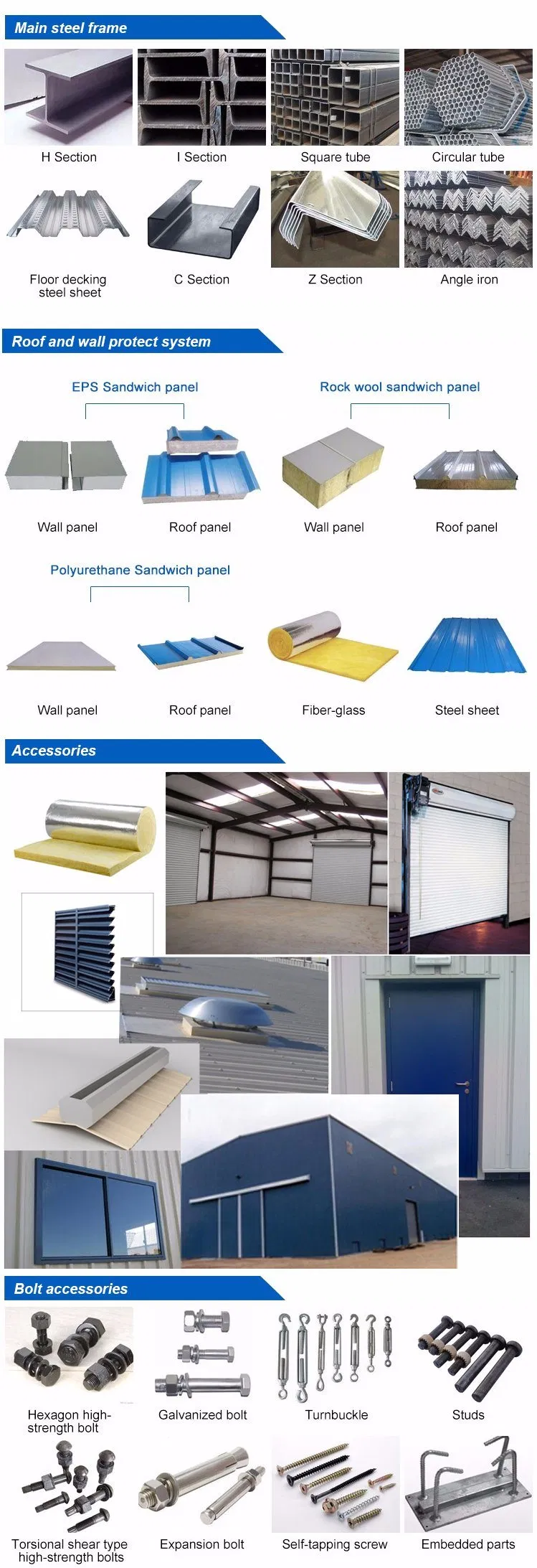

Project Material List

Category	Component	Material Specification
Main Steel Frame	Column & Beam	Q235, Q345 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z Purlin
	Tie Rod	Q235 Circular Steel Pipe
Maintenance	Roof & Wall Panel	Insulated Sandwich Panel (EPS/Rock Wool/PU) or Steel Sheet
Accessories	Window	Aluminium Alloy / PVC Window
	Door	Sliding Sandwich Panel or Rolling Metal Door

⚙

Design Parameters

To provide a tailored solution, the following parameters are required:

Live Load

Roof Load (KN/M2)

Wind Speed

KM/H

Snow Load

KG/M2

Crane

Capacity & Lift Height (If any)

🏭

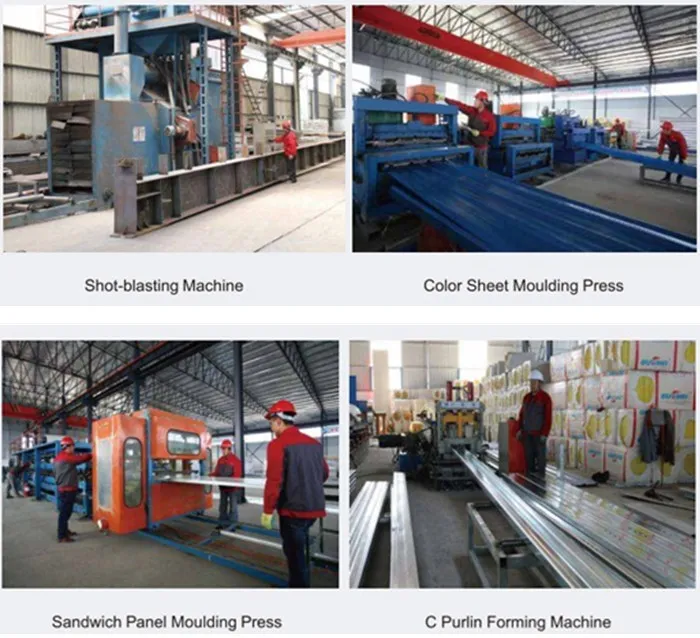

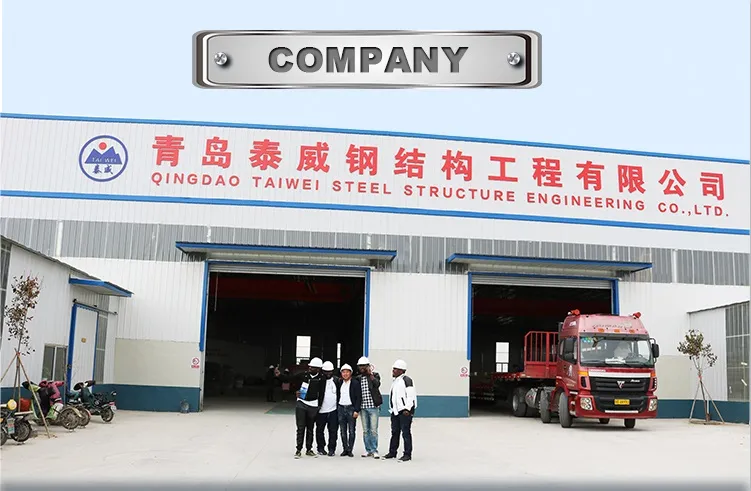

Factory & Processing

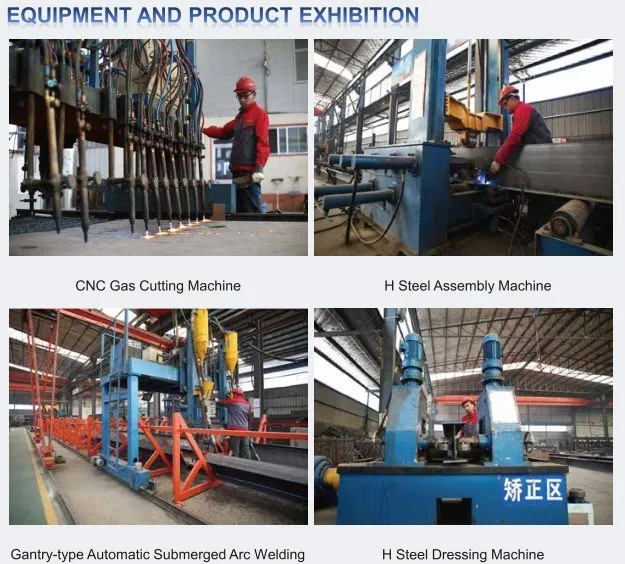

Our comprehensive enterprise integrates design, production, and logistics. With advanced processing facilities, we ensure high-precision fabrication of all structural members.

Quality Control Workflow

1. Raw Materials: Cutting international size H section steel and pipes.
2. Welding: Professional assembly followed by the 1st quality check.
3. Sand Blasting: Reaching Grade 2.5 high-grade rust resistance.
4. Painting: Anti-rust coating applied within 2 hours of blasting.

🏗

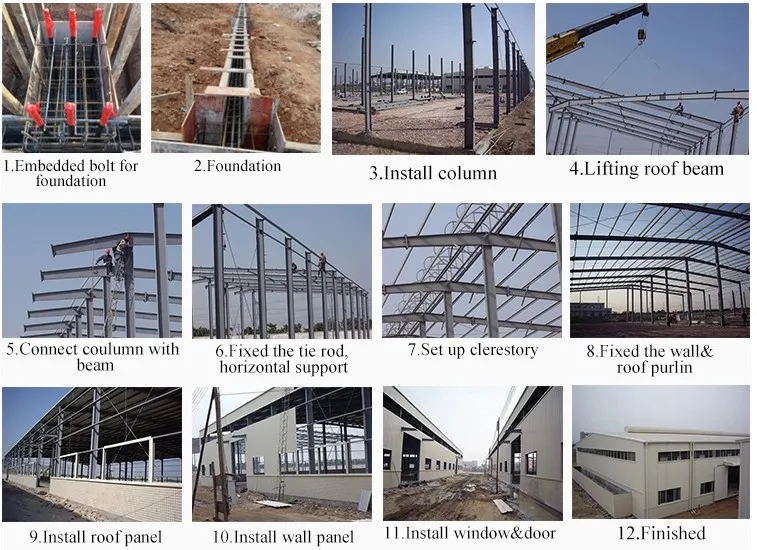

On-site Installation

Frequently Asked Questions

What is the lifespan of a prefabricated steel structure?

Our steel structures are designed for long-term durability, with a typical service life ranging from 50 to 70 years depending on the maintenance and environmental conditions.

How does the structure perform against fire?

While steel loses strength at very high temperatures (around 600ºC), we provide protection using heat insulation boards and refractory materials to meet specific building fire safety levels.

Can I customize the size and design of the building?

Yes, all structures are fully customized. We can develop designs based on your specific drawings, required dimensions, and local weather loads (wind, snow, seismic).

Is the material environmentally friendly?

Absolutely. Steel is a green building material. The demolition of such structures generates almost no construction waste, and the steel components are 100% recyclable.

What surface treatments are available to prevent rust?

We offer high-grade sandblasting (SA 2.5) followed by two layers of anti-rust painting or galvanization, depending on the client's requirements and the building's environment.

Do you provide installation assistance?

We provide professional site management and installation supervision. Engineers can be sent to assist your local construction team to ensure the building is assembled correctly.
