Prefabricated House Worker Camp Housing Construction

Customization:	Available
Usage:	Warehouse, Villa, Dormitories, Temporary Offices, Workshop
Main Steel Frame:	H Beam

Send Inquiry

Product Description

Basic Specifications

Model NO.

SSW1503

Wall & Roof Panel

EPS/Rock Wool/Glass Wool/PU

Main Frame

H Steel, Z or C Purlin

Steel Grade

Q235B & Q345B

Connect Method

Welding or Bolt

Window

Aluminium Alloy or PVC

Door

Sliding or Roll up

Certification

ISO / SGS / CE

Warranty

30 Year Limited Warranty

Capacity

2000ton/Month

Product Description

● Pre-Engineered Steel Buildings (PEB) are structural concepts consisting of primary members, secondary members, and roof/wall sheeting connected together. These systems are custom-designed to be lighter in weight while maintaining high strength.

Versatile Applications

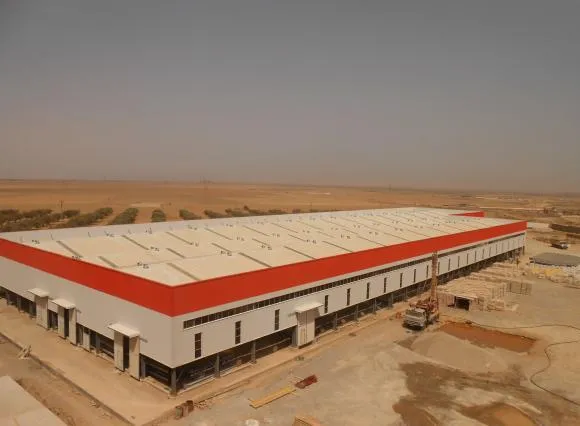

Industrial: Factories, Workshops, Warehouses, Cold Storages, Steel Mills.
Commercial: Showrooms, Supermarkets, Offices, Shopping Centers, Restaurants.
Public: Schools, Hospitals, Conference Halls, Museums, Stadiums.
Others: Aircraft Hangars, Airport Terminals, Pump Stations, Farm Sheds.

Key Advantages

1. Cost Savings

Price per square meter can be 25%-30% lower than conventional buildings.

2. Quick Erection

Requires 60% less construction time compared to traditional concrete structures.

3. Flexibility

Easy to expand in the future with low transportation and design costs.

4. Energy Efficiency

Green solution with high recyclability and CO2 reduction.

Structural Components

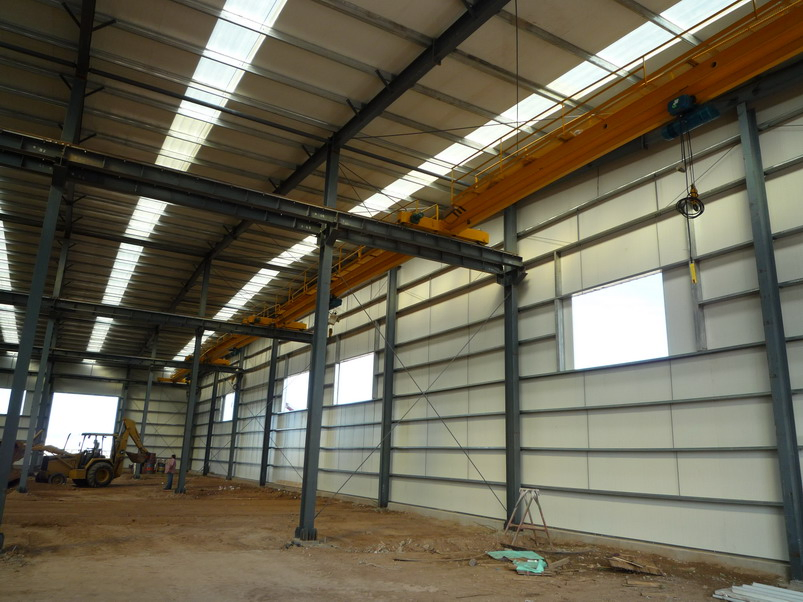

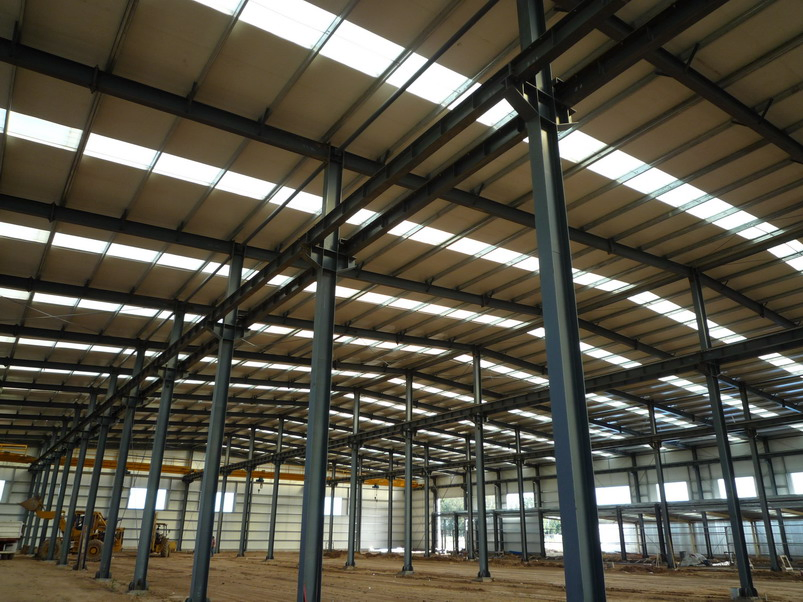

Primary Members

The main load-carrying frames including columns and rafters. Shapes and sizes vary based on specific load requirements.

Secondary Members & Panels

Includes purlins, girts, eave struts, and wind bracing. Roof and wall panels are typically 0.3mm to 0.6mm thick with high-yield strength and corrosion-resistant coatings.

Manufacturing & Quality Control

A. Material Preparation

CNC cutting and plasma processing ensure precise dimensions for all plates and beams.

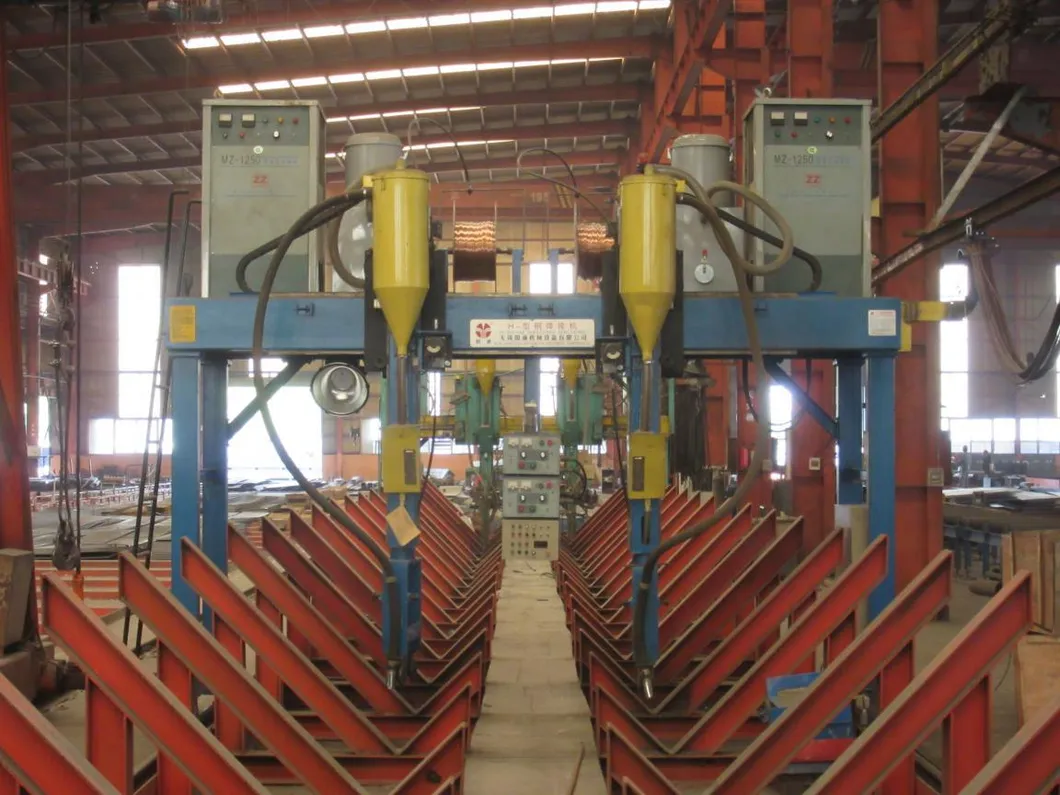

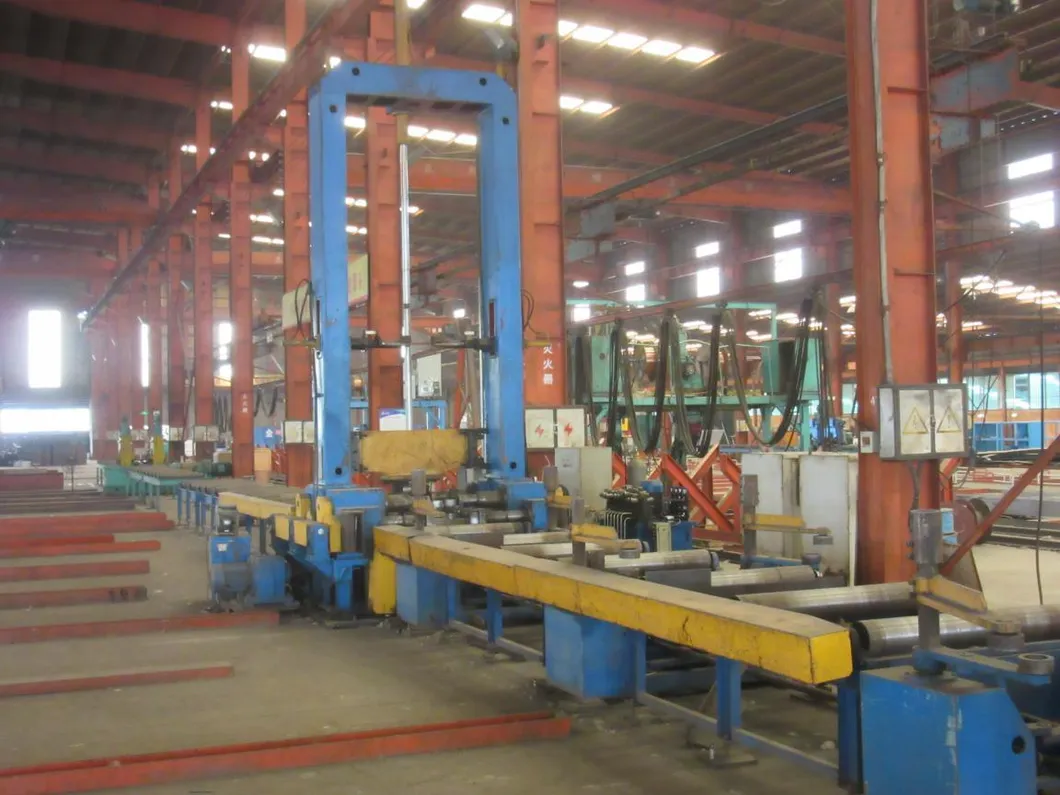

B. Fit-up & Welding

Automatic submerged arc welding and MIG welding are used. Fillet weld sizes are strictly maintained per GB50661-2011 standards.

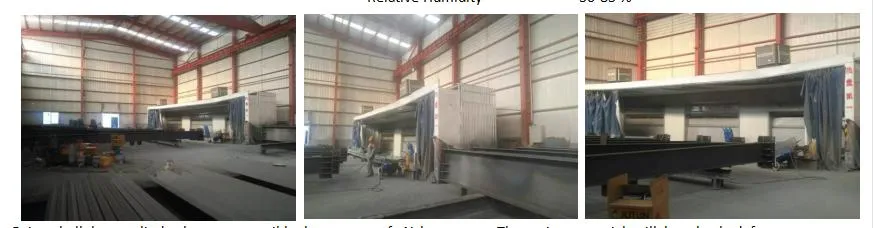

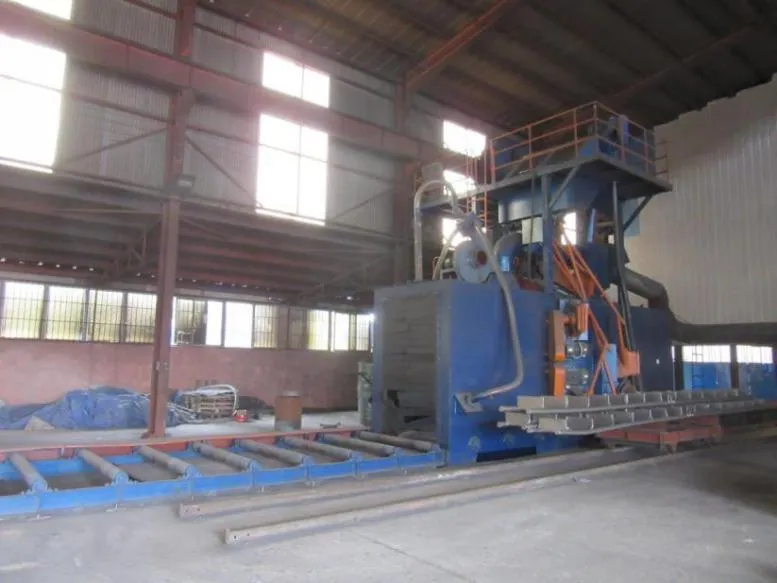

C. Shot Blasting & Painting

Steel surfaces are cleaned to Sa2.5 grade. Paint thickness is monitored with WFT readings to ensure long-term durability (typical thickness 125μm-150μm).

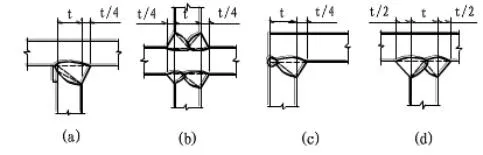

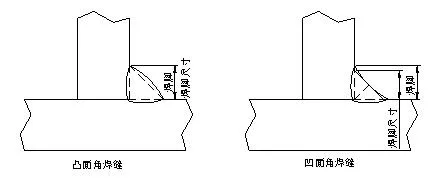

Technical Welding Standards

Form of Fillet Weld	Weld Size (K) Value	Application Note
Without Groove	K=(0.7~1)t and ≤15mm	Standard steel structure buildings
Without Groove	K=(0.5~0.6)t	Secondary members and ribs
With Groove (CJP/PJP)	K=t/4 and ≤10mm	General structural joints
With Groove (CJP/PJP)	K=t/2 and ≤10mm	Important members (crane beams)

Frequently Asked Questions

What is a pre-engineered steel building?

It is a structural system designed at a factory and assembled on-site. It consists of primary frames, secondary members, and cladding, offering a high-strength, lightweight alternative to traditional construction.

What are the cost benefits compared to concrete?

PEB systems can save 25% to 30% in overall costs due to reduced material waste, faster erection times, and lower labor requirements on site.

How long does the erection process take?

Construction time is typically reduced by 60%. Since all components are pre-fabricated and bolted together, the assembly is fast and requires simpler equipment.

Are these buildings resistant to corrosion?

Yes. All steel components undergo shot blasting to Sa2.5 grade followed by high-quality primer and finish coatings. Standard systems include galvanized coatings for maximum durability.

What kind of warranty is provided?

Our steel structures are built to last and typically come with a 30-year limited warranty, ensuring long-term structural integrity and performance.

Can the building be expanded in the future?

Absolutely. One of the main advantages of steel buildings is their flexibility. They can be easily extended by adding additional bays or frames with minimal disruption.
