Product Description

Basic Information

Model NO.

Container

Warranty

3 Years Guarantee

Usage

Dormitories, Temporary Offices, Camp

Certification

CE, ISO

Customized

Non-Customized

Production Capacity

1000 Sets/Month

HS Code

9406000090

Transport Package

Nude Package

General Technical Description

Free Design Fast Install Prefab House Modular Expandable Shipping Container Light Steel Building

🚀 Technical Parameters

Size: GP20, GP40 and HP40 of shipping container
Wind Resistance: Grade 12
Wall permitted loading: 0.6KN/ m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/mk
Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Dimensions and Weight

Inner length /external length: 5.81m/6.06m
Inner width /external width: 2.188m/2.438m
Inner height/external height: 2,410m/2.591m
Weight: 2000kg per unit

Core Specifications

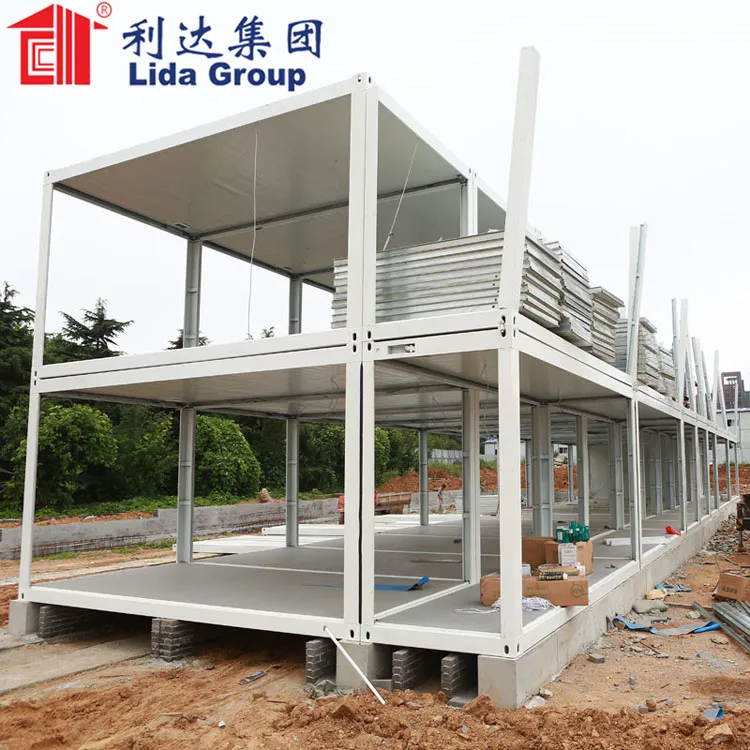

🏠 Steel Framework

Material: Steel Q345, thickness 3.5mm for beams and columns. Surface: Epoxy painting (two bottom, two surface). Fittings: 8 standard corner moulds and PVC rainwater pipes. Forklift openings: 100*250mm.

🪵 Floor & Ceiling

Floor: 0.5mm galvanized steel sheet, 75mm rock wool insulation, 18mm bamboo plywood, and 2.0mm PVC floor leather. Ceiling: 1.2mm steel plate roof, 75mm rockwool insulation, 8mm OSB board with 12mm PVC decoration.

🧱 Walls & Openings

Wall Panels: 75mm thickness rockwool (Density: 120Kg/m3). Doors: Insulated steel doors (950*2100mm). Windows: PVC with fly screen and 4mm double glass.

Electrical Fittings & Services

Electrical System: 2.5mm2 for lighting, 4mm2 for AC. Includes 32A industrial socket, 16A universal sockets, fluorescent lamps (220V), and full distribution box with breakers.

🛠️ Professional Services

Design & Engineering: Full site camp solutions tailored to requirements.

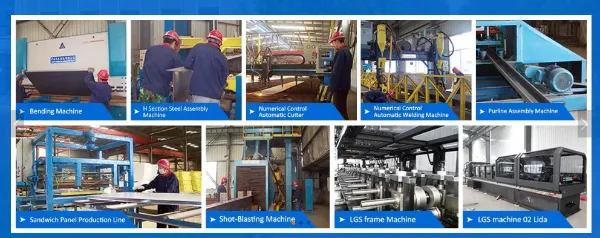

Procurement & Manufacture: ISO standard quality control for all prefab materials.
Site Management: Installation supervision and training provided by expert engineers.

You are warmly welcomed to visit our factory.

Frequently Asked Questions

What is the wind resistance capability of this container house?

The structure is designed with a Grade 12 wind resistance rating, ensuring stability in various weather conditions.

How long is the expected service life?

With high-quality steel framework and proper maintenance, the service life can reach between 15 to 20 years.

Is the container house heatproof and waterproof?

Yes, it features a 75mm rockwool insulation layer in both walls and ceilings, along with a waterproof roof design for maximum protection.

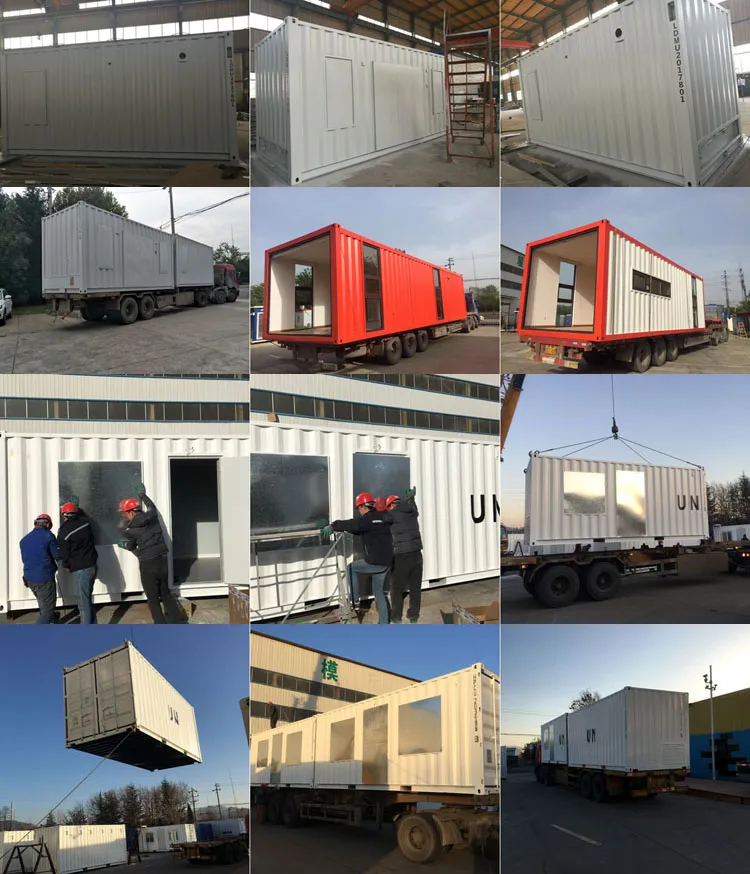

Can these units be easily transported and combined?

Absolutely. Up to 4 container houses can be loaded into one standard container for transport. They are designed to be lifted, fixed, and combined freely.

Do you provide on-site installation support?

Yes, we offer site management and installation supervision services, where engineers can be sent to train and supervise your local construction team.

What are the primary applications for these modular buildings?

They are commonly used for dormitories, temporary offices, site camps, and affordable housing solutions globally.
