Low Cost Fast Assembly Worker Camp Solution Economic Fast Install Containerized Dormitory

Customization:	Available
After-sales Service:	1 Year
Fast Installation:	Fast Installation

1

Basic Information

Material

Steel + Sandwich Panel

Lifespan

20 Years

Door

Glass Window Door

Window

Plastic Steel Window

Advantage

Quick Installation

Color

Customized Color

Keyword

Mobile Living Container House

Roof

Sandwich Panel + Decoration Ceiling

Certification

CE Certification

2

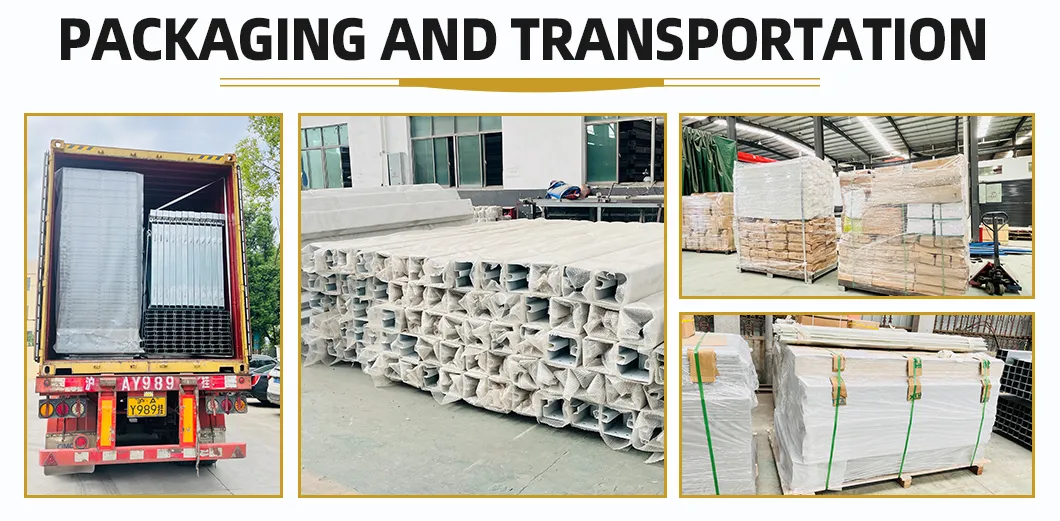

Packaging & Delivery

Package Size

600.00cm * 300.00cm * 290.00cm

Gross Weight

2000.000kg

3

Product Description

I. Core Features

1. Modular and Standardized Design The main structure uses custom modular units. Dimensions are standardized (e.g., 6m long). Units can be used individually or combined freely (horizontal splicing, vertical stacking).

2. Robust and Durable Structure Made of Q235B steel with a fully welded frame. Withstands wind forces levels 10-12 and seismic forces levels 6-8. Service life of 15-20 years.

3. High Mobility Integrated steel unit transportable by forklift or trailer without disassembly. Ideal for relocatable scenarios like construction offices.

4. High Degree of Customization Interior options: partition walls, pre-installed plumbing/electrical, thermal insulation (rock wool/polyurethane), and custom finishes.

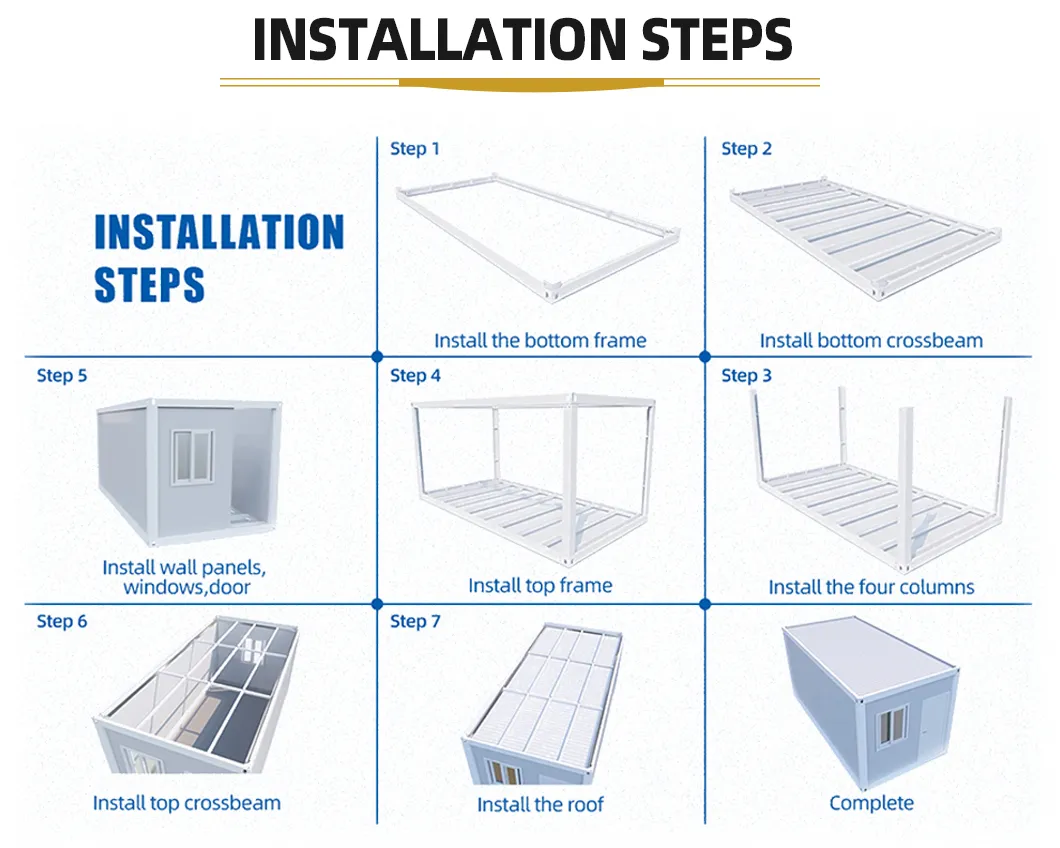

5. Short Construction Period Factory prefabrication ensures quick deployment. Three people can install a unit in 3 hours, saving 70% time compared to traditional methods.

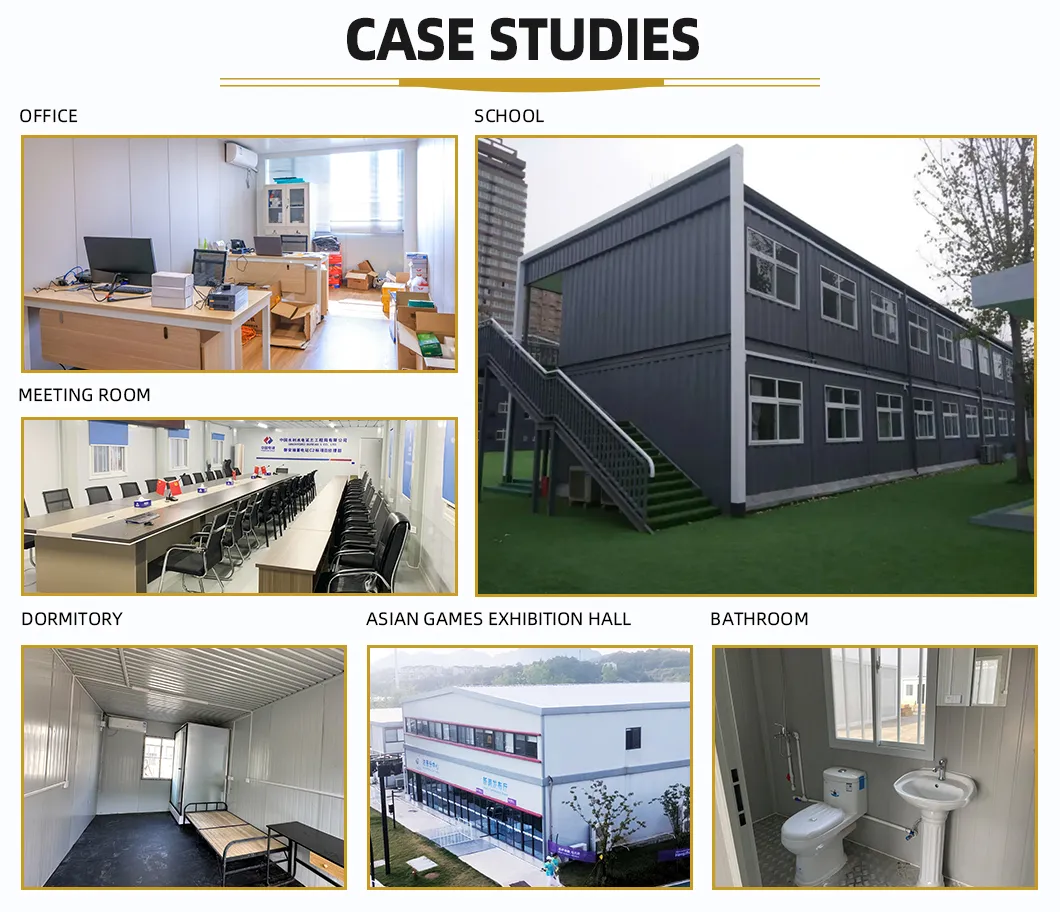

II. Core Functions

1. Residential Function Full living system: bedroom, living room, kitchen, and bathroom. Equivalent to traditional housing functions.

2. Office Function Designed as open-plan or partitioned offices with manager rooms and meeting areas, equipped with all necessary utilities.

3. Commercial Service Function Transformable into convenience stores, coffee shops, or ticket booths with display windows and openable panels.

4. Public Supporting Functions Suitable for guard booths, rest rooms, express delivery stations, and charging stations.

5. Emergency Response Function Quickly deployable for disaster relief housing, isolation points, or temporary medical stations.

4

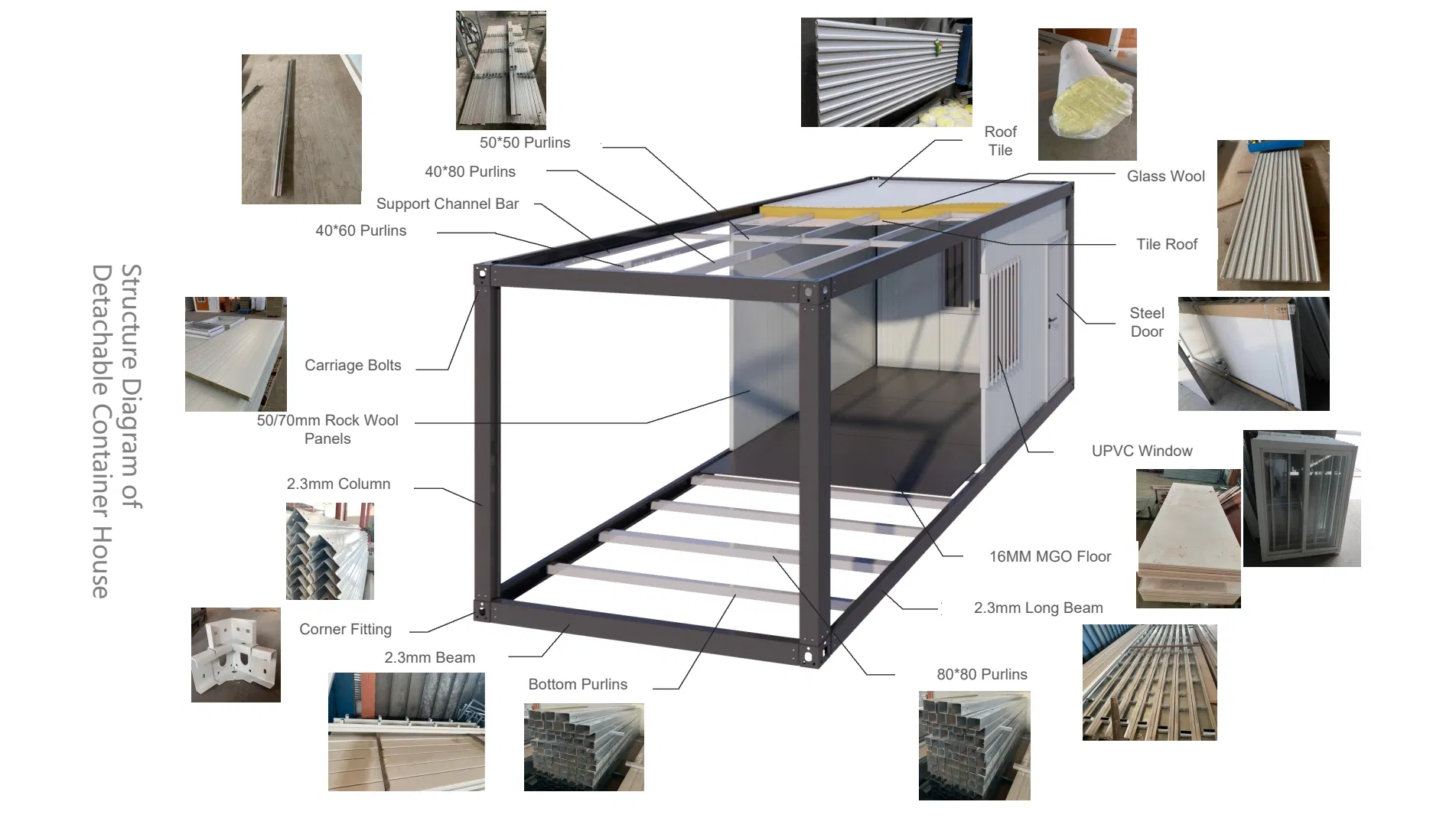

Technical Specifications

Size	595030002800mm (LWH)
Wall Panel	0.3mm color steel 50mm rock wool sandwich panel
Door	Steel fireproof door, W840mm x H2035mm, 0.5mm panel
Window	UPVC sliding windows (2pcs), 5+9+5 hollow double glass with screen and anti-theft rod
Roof	0.4mm Thickness, 980 Type Color Steel pressure type tile
Floor	18mm Grade cement fiberboard + 1.6mm PVC floor leather
Frame	Galvanized roller beams (2.5mm) and columns (2.5mm); Galvanized C-type secondary beams
Temperature Resistance	-20°C to 50°C
Wind Load	Grade 11
Earthquake Resistance	Grade 7

5

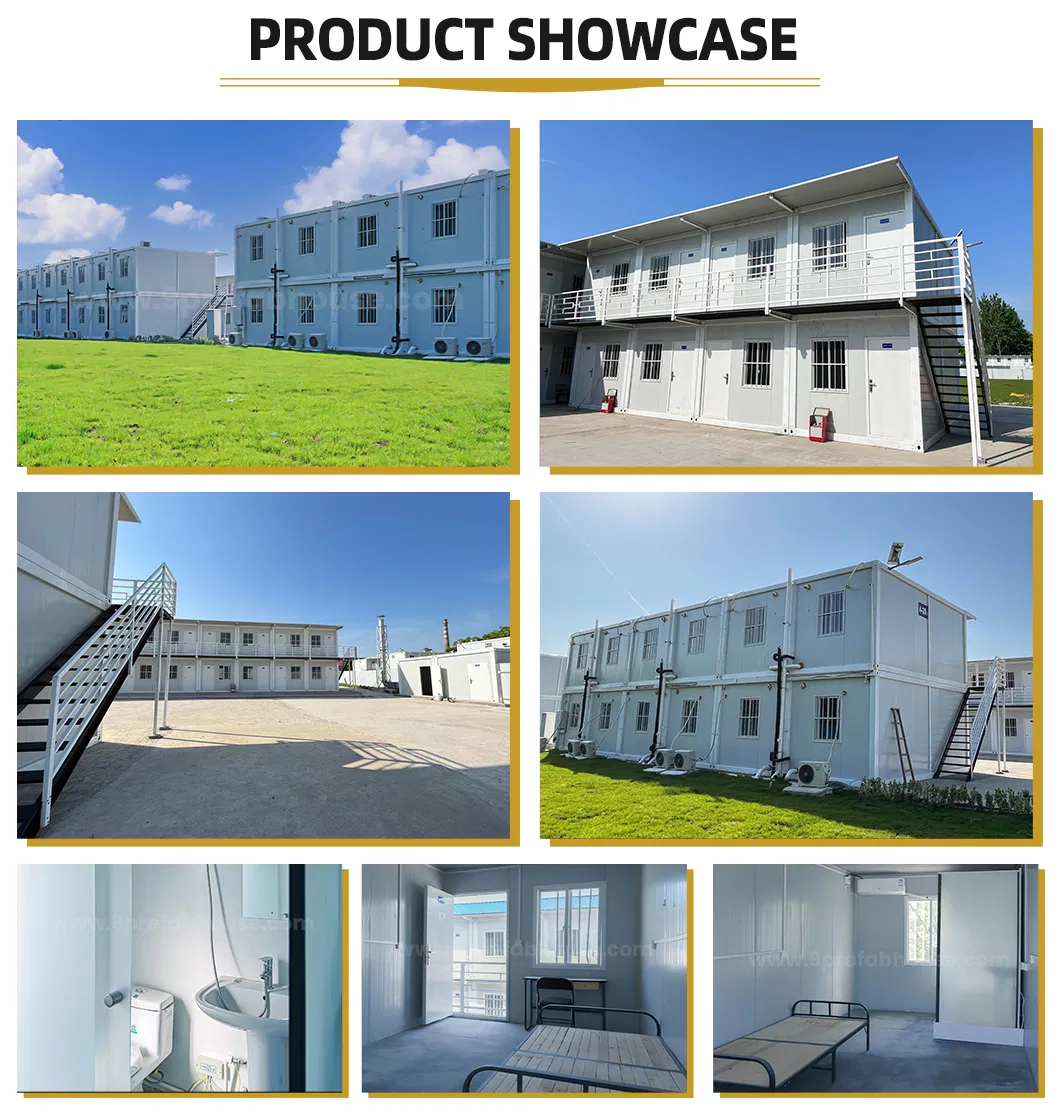

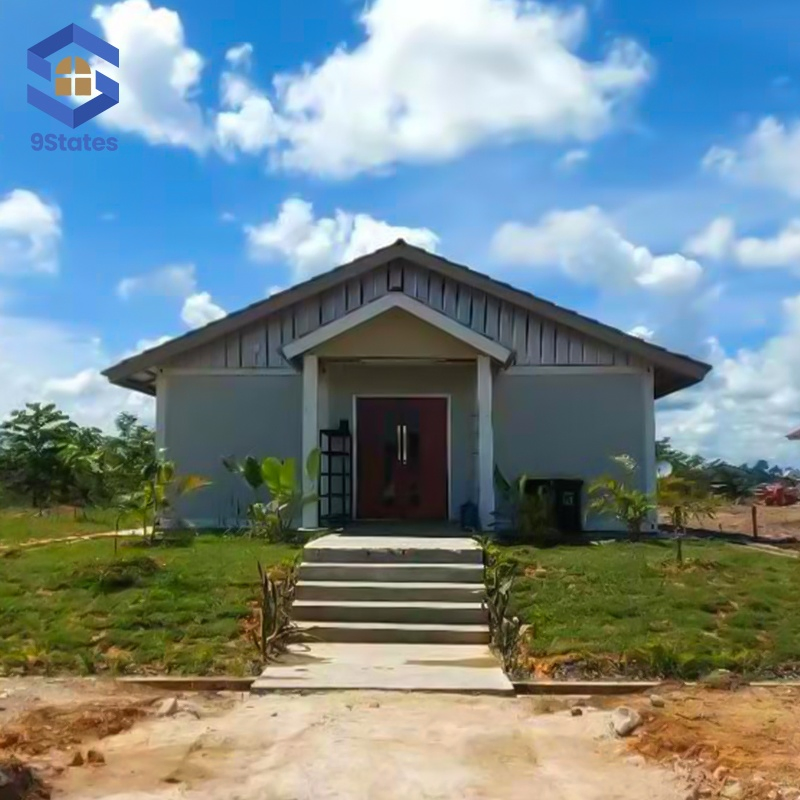

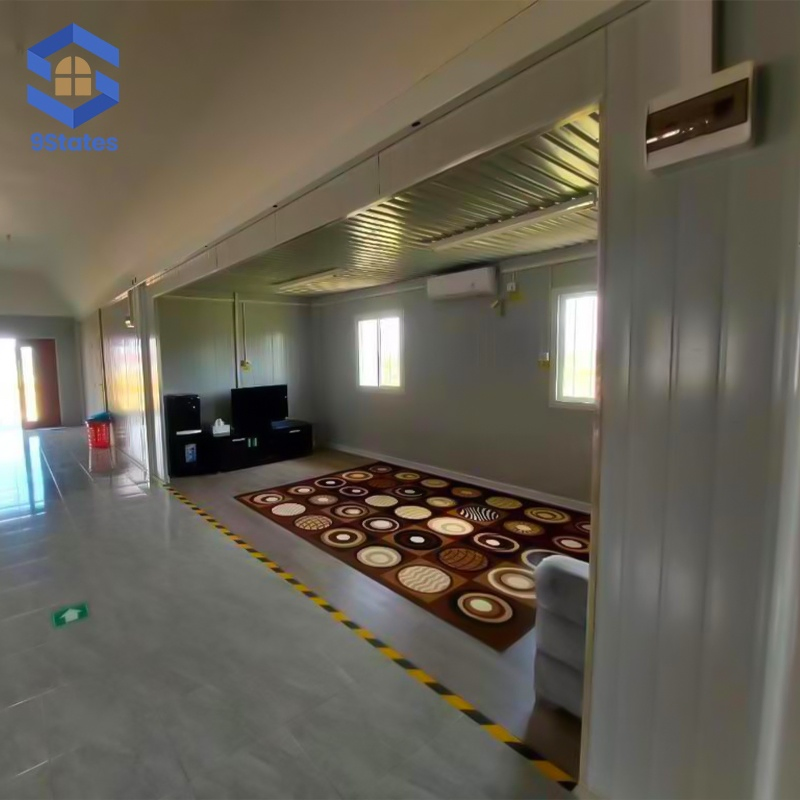

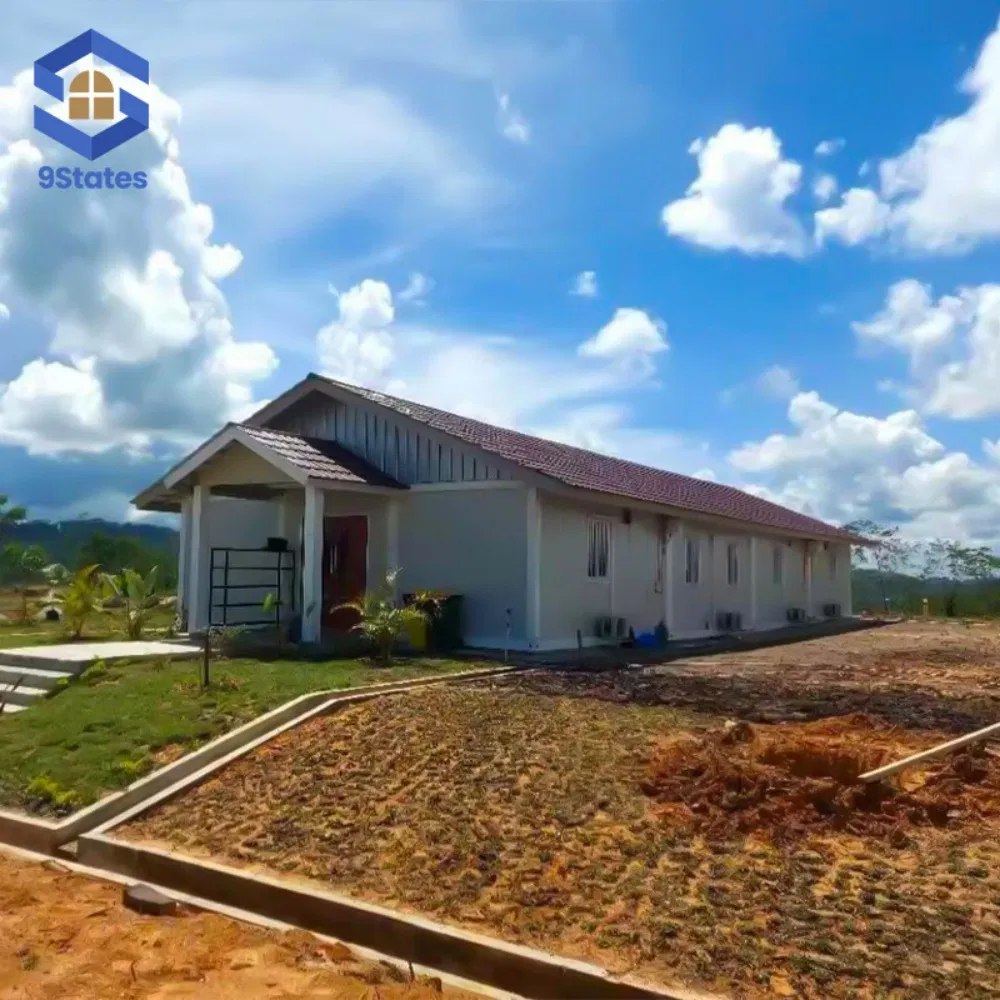

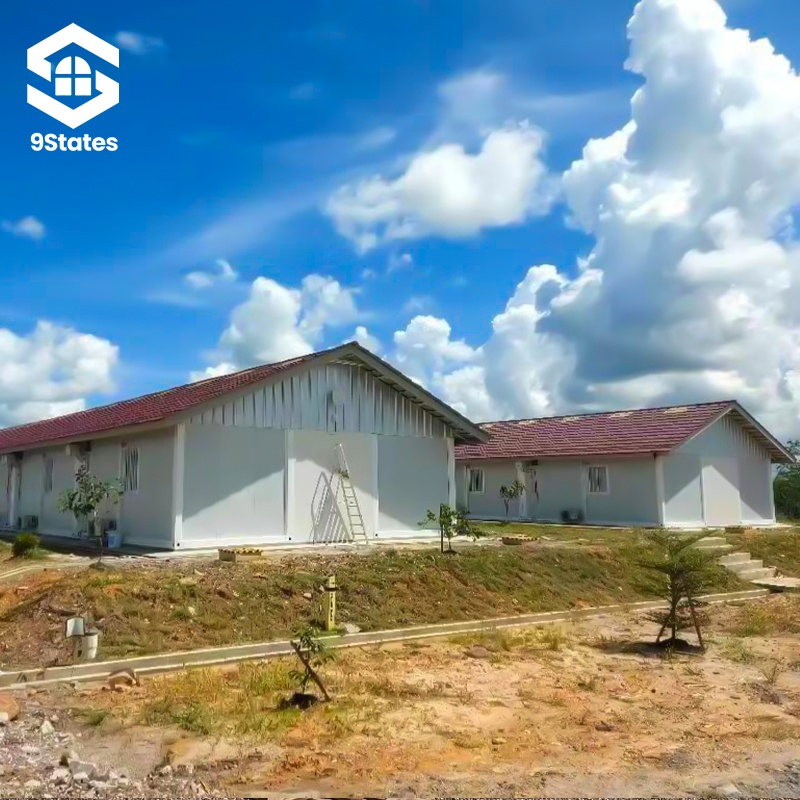

Visual Display

6

Frequently Asked Questions

Do you provide on-site installation service?

We provide detailed installation instruction drawings and videos for every project. For large projects, installation workers and supervisors can be available on site upon negotiation.

What's your delivery time?

Normally, delivery time is 15 days after deposit is received. For large orders, the delivery schedule is negotiable.

How do you control product quality?

Quality is controlled via optimized design solutions, selection of qualified raw materials, and precise manufacturing techniques by experienced workers with strict inspections.

What is the warranty and how are quality problems handled?

The warranty period is 2 years. We are responsible for all quality problems caused by production within this timeframe.

What is the expected service life of the product?

Under conventional climate and environmental conditions, the service life of the container house steel frame is 20 years.

How do the products adapt to different climates?

For strong wind regions, we reinforce the internal structure. In cold regions, we increase insulation thickness. In high-corrosion areas, we use specialized resistant materials or anti-corrosive coatings.
