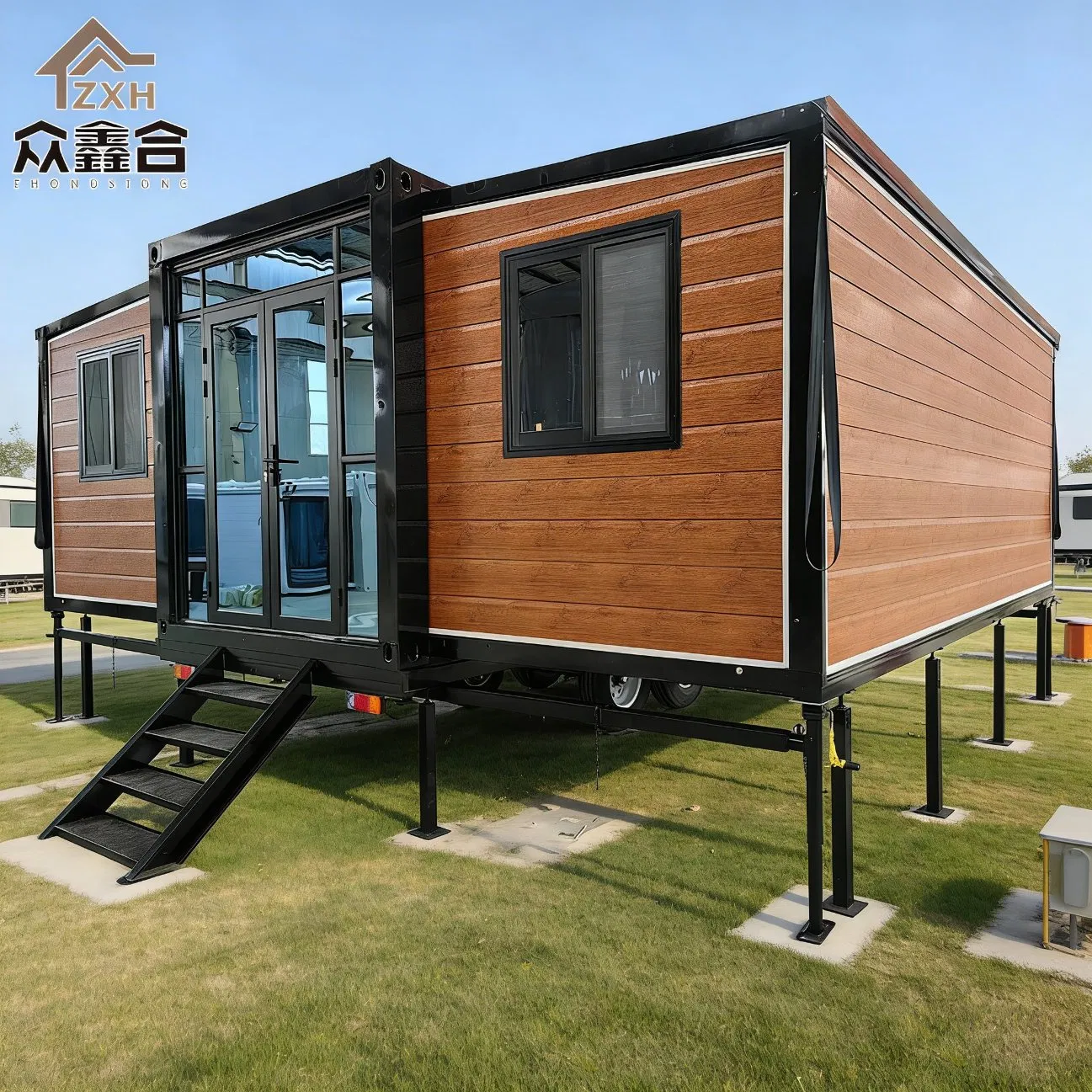

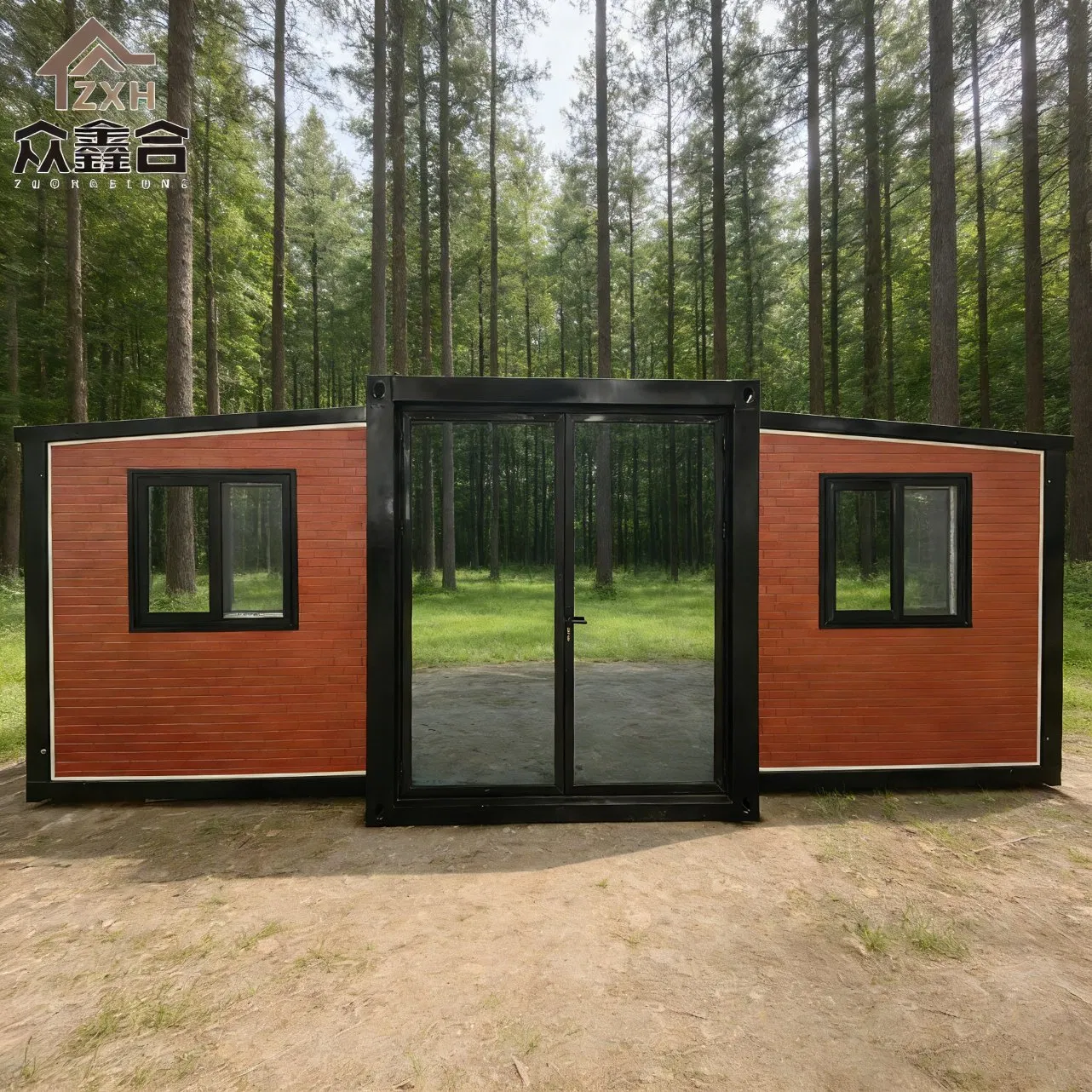

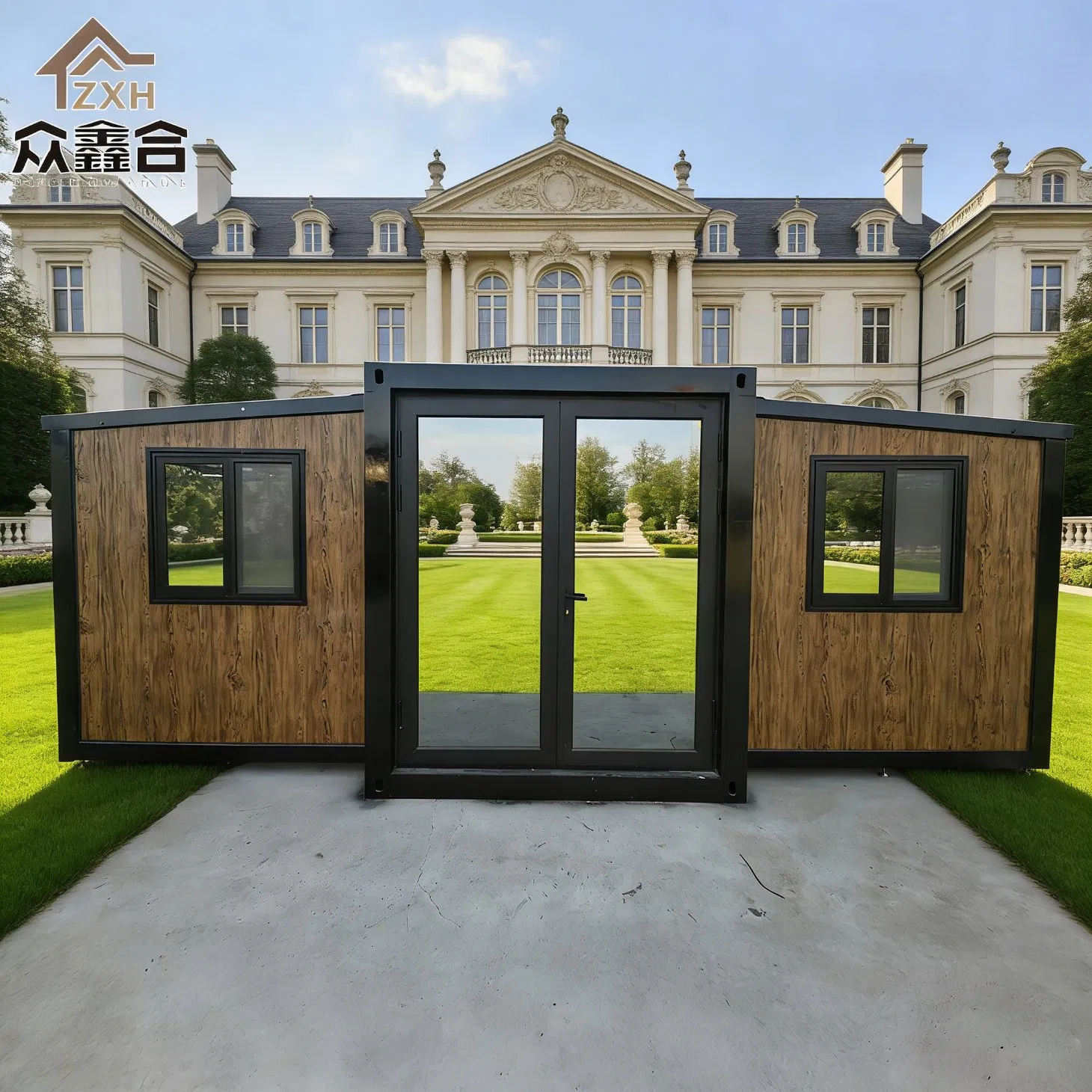

Factory Outlet Australian-Standard 20/40 FT Foldable Expandable Fully-Equipped Containerized House

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
ZXH
Fast Installation
Fast Installation
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof
Material
Sandwich Panel
Wall Thickness
50#/65
Warranty
1 Year
Certification
ISO, CE
Specification
5900*6200*2480mm
Production Capacity
500000PCS/Month
HS Code
9406000090
Packaging & Delivery
Package Size
590.00cm * 220.00cm * 248.00cm
Gross Weight
3120.000kg
Transport
40hq Hold 2 Units

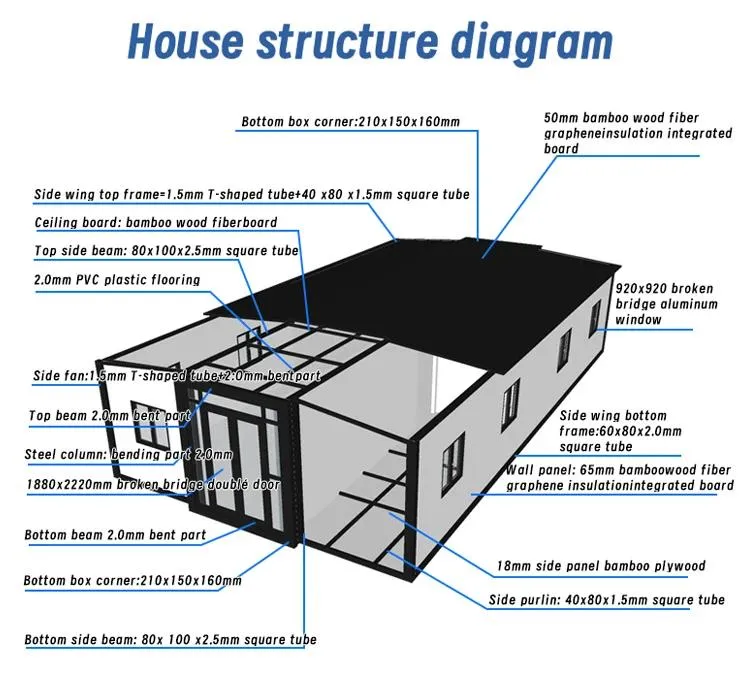

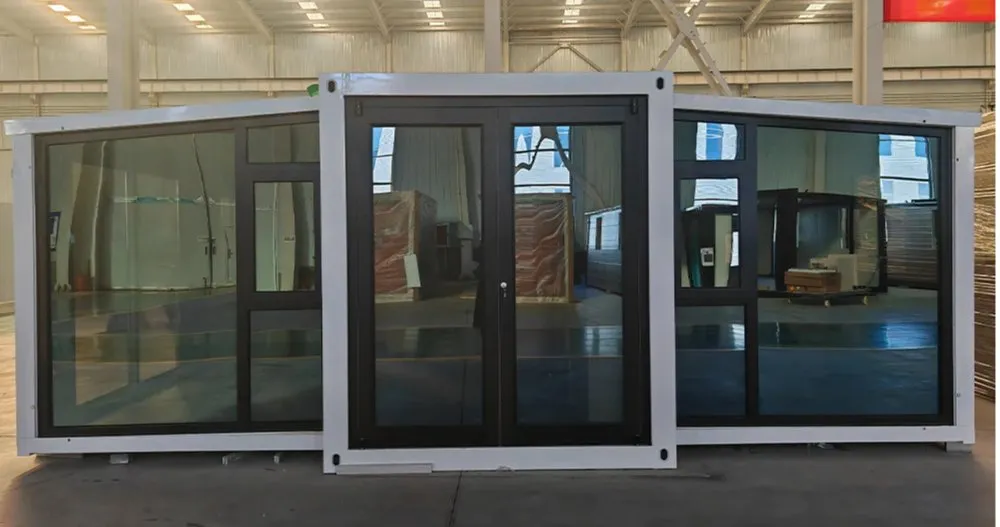

Expandable Container House Container House View

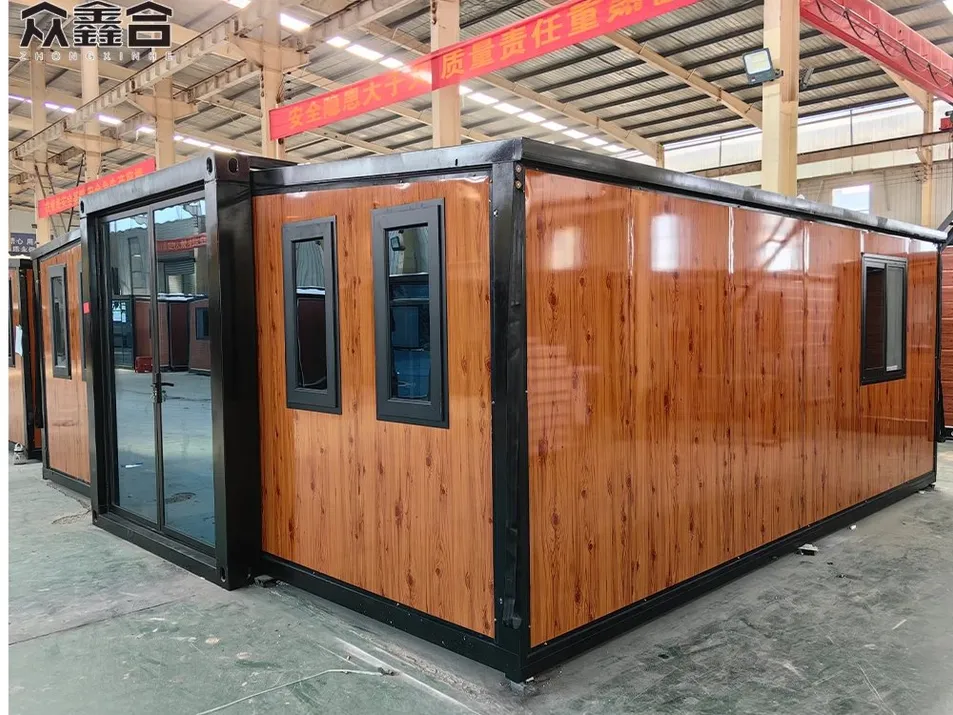

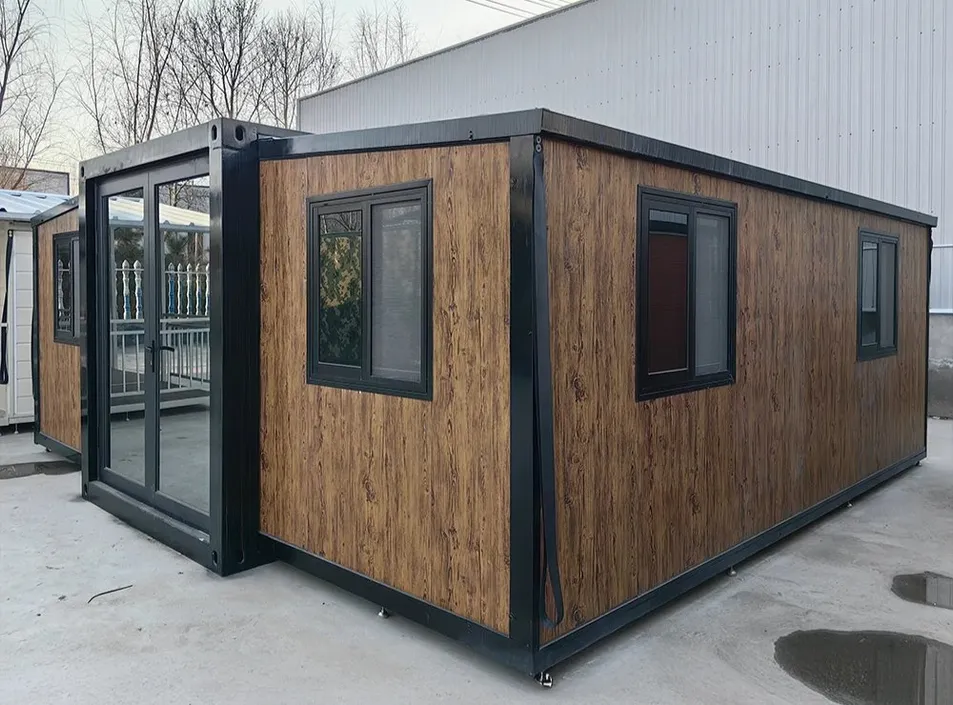

House Detail 1 House Detail 2
Technical Parameters
Category Component Specification Details
Framework Main beam Galvanized square tube 80*100*2.5MM Q235
Integrated column head Galvanized folding piece 150*210*2.0MM Q235
Sub-frame Galvanized square tube 40*60*1.0MM Q235
Hinges Galvanized thickened hinge Q235
Frame color Painting process White frame
Floor Middle floor 18mm glass magnesium board (asbestos-free)
Both sides floor 18mm glass magnesium board (asbestos-free)
Floor leather Floor leather Palm wood
Insulated wall Wall panel 70mm sandwich board, color roll double-sided 0.25 (EPS)
Partition 50mm sandwich panel, color steel plate base plate
Main & Side top 50mm sandwich panel, color steel plate base plate
Electrical System Parameters Australian standard wires; 6² incoming, 4² AC sockets, 2.5² ordinary, 1.5² lighting; 6 LED ceiling lights.
Door & Window Entrance door Thermal-insulated aluminum (double-glazed tempered glass) W1890*H2230
Window Aluminum alloy sliding window with diamond mesh 920*920*6 pieces
Key Design Philosophy

"Flat-base + flat-top" combines practicality with innovation, offering a balance of stability, functionality, and sustainability for modern modular architecture.

🏢

1. Commercial Exhibition

The double-wing expandable house serves as a novel exhibition space for product launches and events, attracting attention with its mobile and unique structure.

💰

2. Cost & Efficiency Advantages

Standardized structure fits container transport, reducing logistics costs. Factory prefabrication allows quick on-site assembly, minimizing labor and time.

🌿

3. Eco-friendly Materials

Crafted from recyclable steel and environmentally sustainable panels, aligning with the pursuit of green living and durability.

🔄

4. Flexible Expansion

Modular assembly allows for horizontal/vertical expansion, enabling rapid creation of multi-story or large-area spaces for residences or stores.

🏕️

5. Application Areas

Ideal for Tourism & Vacation. Quickly deployed in picturesque locations into cozy residences for a distinctive accommodation experience.

Floor Plan

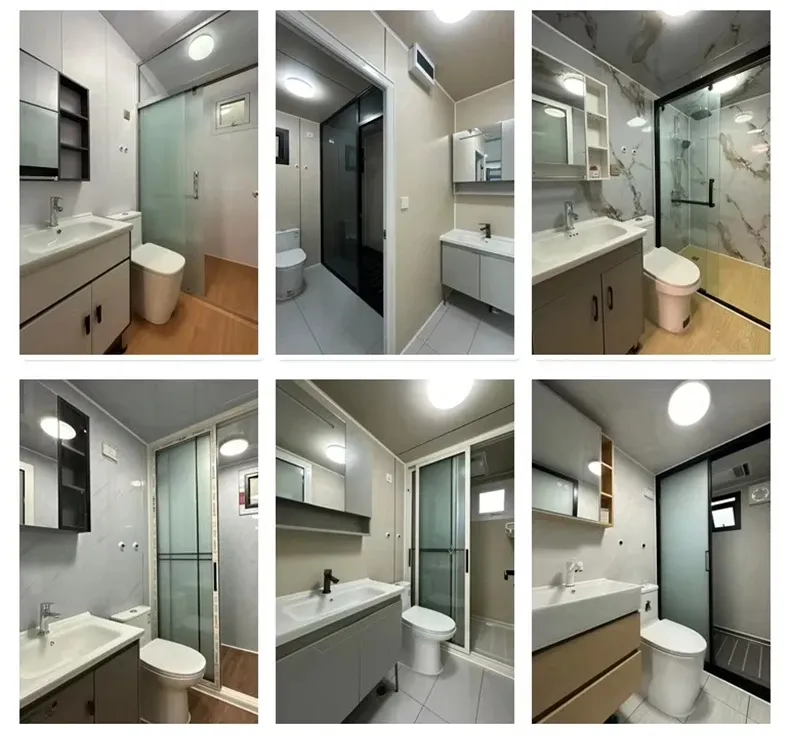

Interior View 1 Interior View 2 Interior View 3

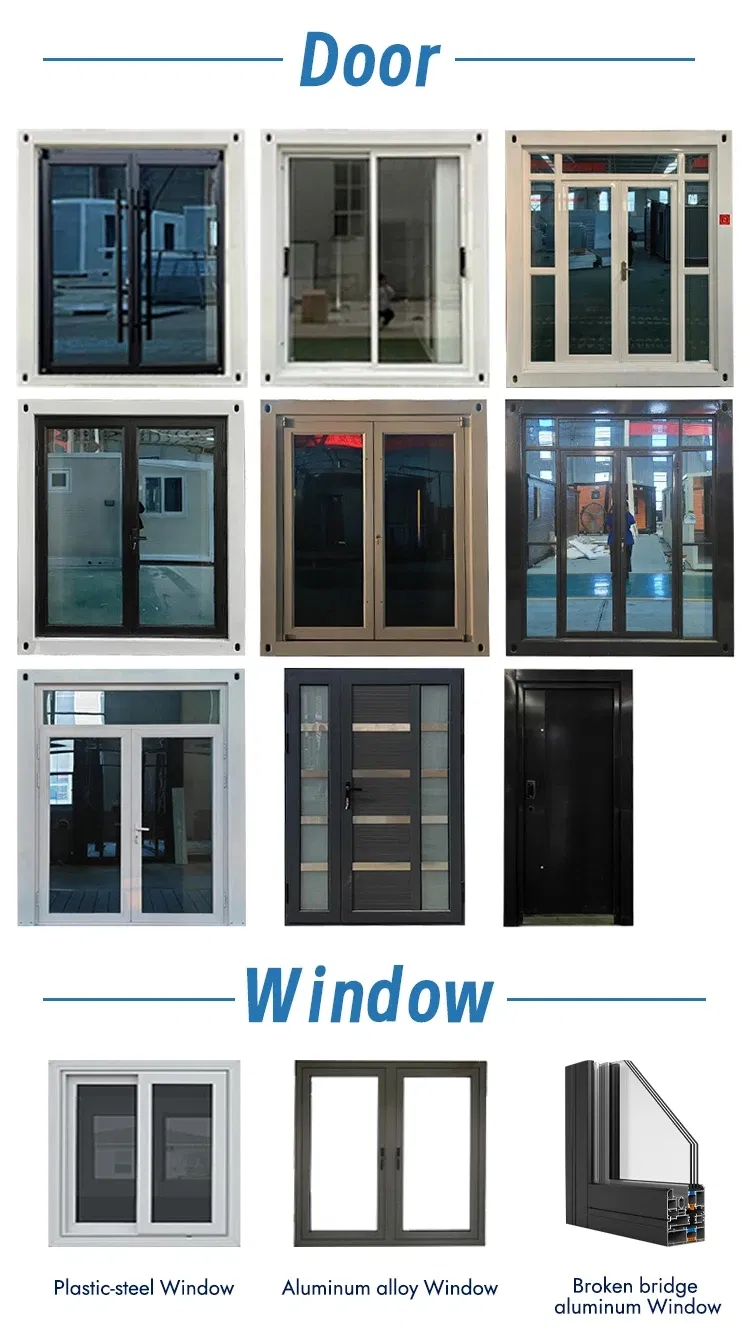

Structure Vertical Full Specification Chart
Frequently Asked Questions
What are the primary features of this container house?
The house is earthquake resistant, easily movable, eco-friendly, and features thermal insulation, waterproofing, and moisture-proof materials.
How fast can the house be installed?
It is designed for fast installation. Since it is factory prefabricated, it allows for rapid on-site assembly with minimal labor.
What materials are used for the walls and insulation?
The house uses 50mm to 70mm sandwich panels with EPS insulation and color steel plates for durability and thermal efficiency.
Is the electrical system pre-installed?
Yes, it comes with a standard system including LED ceiling lights, circuit breakers, and standard sockets (Australian standards or customized).
How is the expandable container house transported?
A standard 40HQ shipping container can hold 2 units of the expandable house, significantly reducing logistics costs.
Can these units be used for commercial purposes?
Absolutely. They are ideal for commercial exhibitions, pop-up stores, tourism vacation rentals, and emergency housing facilities.
