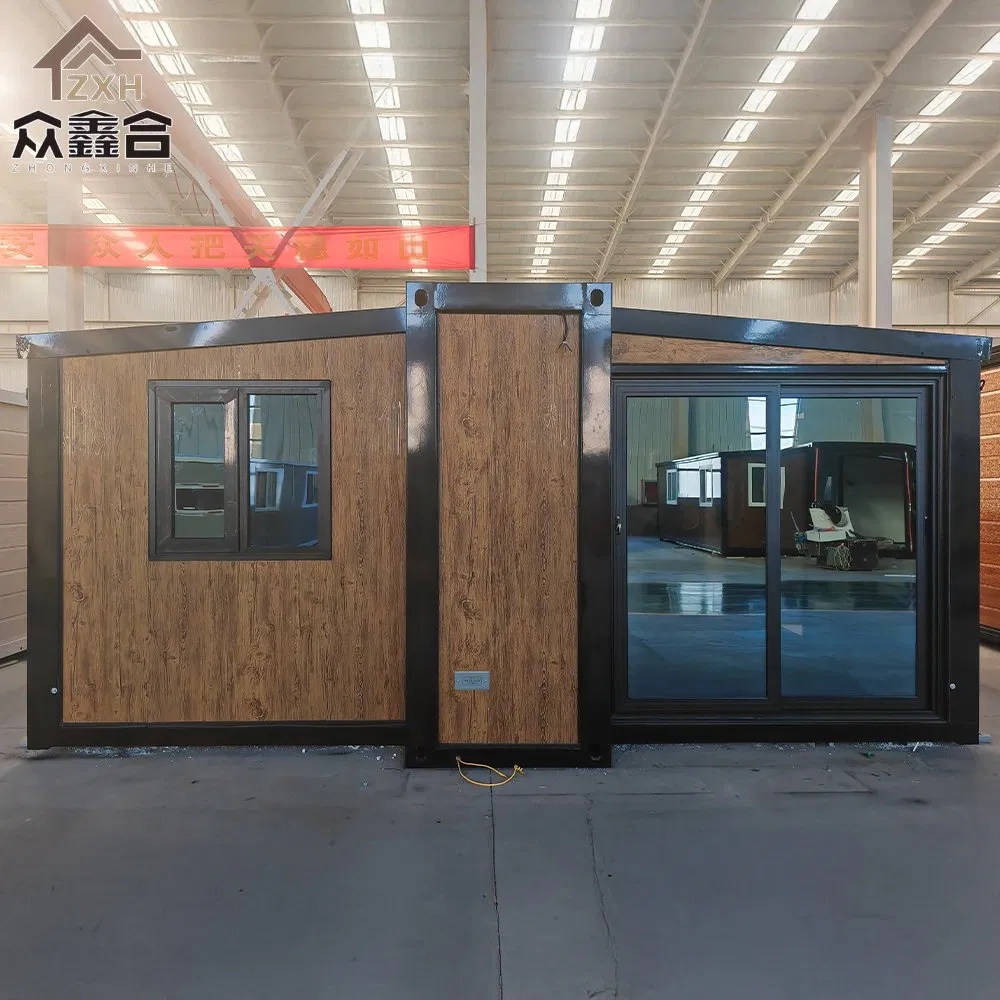

Australian-Standard 20/40 FT Foldable Expandable Fully-Equipped Containerized House

Basic Specifications

🆔Model: ZXH

⚡Installation: Fast Installation

🏗️Material: Sandwich Panel

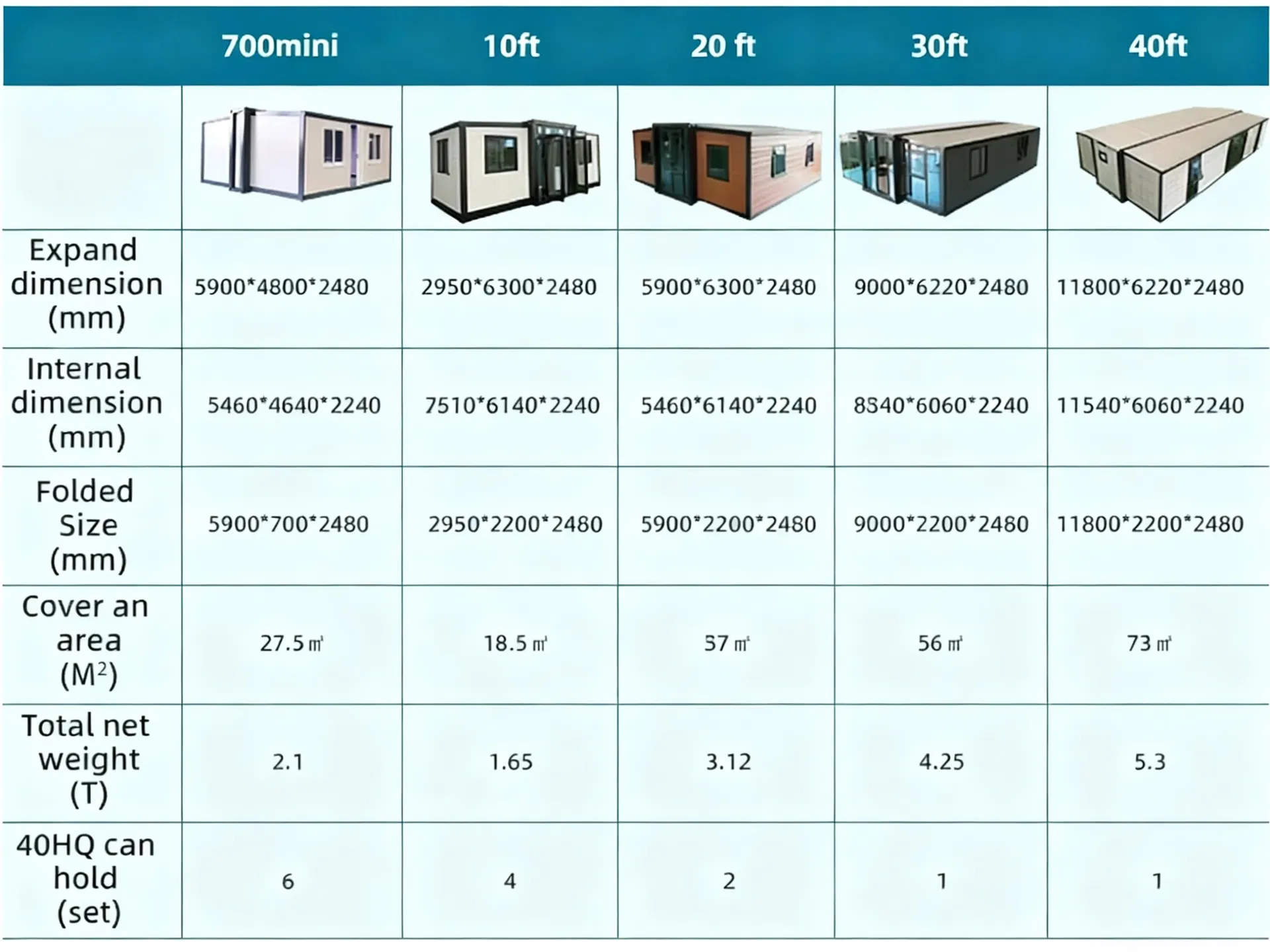

📏Dimensions: 5900*6200*2480mm

🧱Wall Thickness: 50#/65

🛡️Warranty: 1 Year

📜Certification: ISO, CE

📦Transport: 40HQ holds 2 Units

⚙️HS Code: 9406000090

🏭Capacity: 500,000 PCS/Month

📦Package Size: 590.00cm * 220.00cm * 248.00cm

⚖️Gross Weight: 3120.00kg

Product Features

Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof.

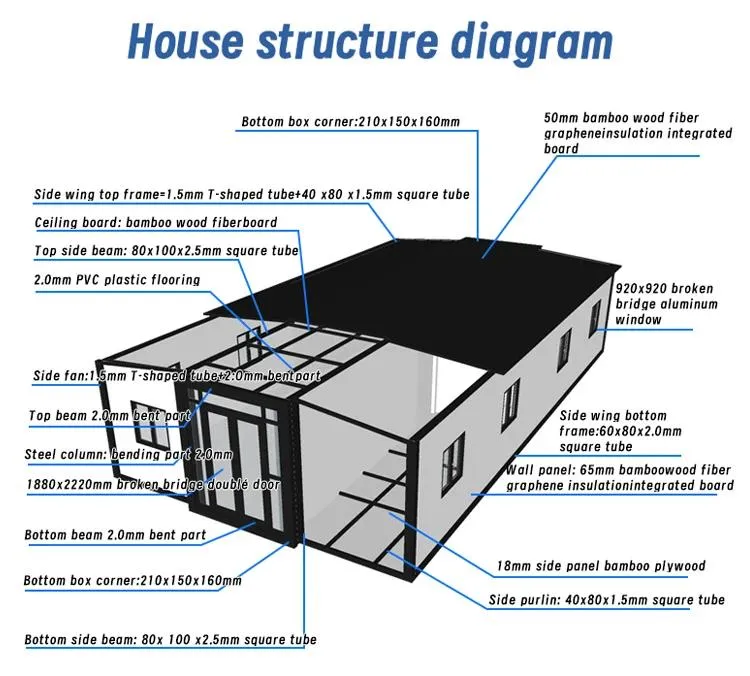

Technical Parameters

Category	Component	Specifications
Framework	Main Beam	Galvanized square tube 801002.5MM Q235
	Sub-frame	Galvanized square tube 40601.0MM Q235
	Hinges	Galvanized thickened hinge Q235
	Color	Painting process White frame
Floor	Board	18mm glass magnesium board (asbestos-free)
Floor	Surface	Floor leather Palm wood
Insulation	Wall Panel	70mm sandwich board (Wood grain color, EPS material)
Insulation	Partition	50mm sandwich panel
Electrical	System	Australian standard wires; 6² incoming, 4² AC sockets, 2.5² ordinary, 1.5² lighting. 6 LED ceiling lights.

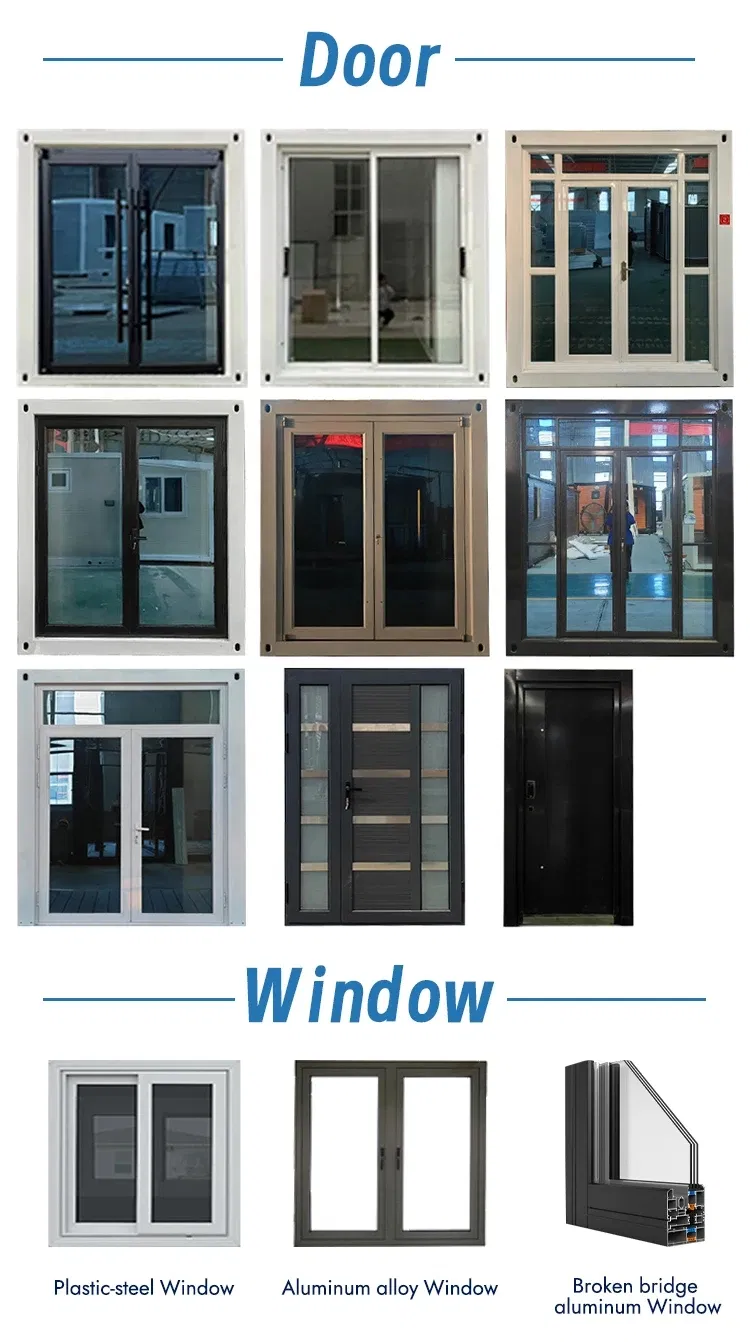

Doors & Windows	Entrance	Thermally-insulated aluminum (double-glazed tempered glass) W1890*H2230
Doors & Windows	Window	Aluminum alloy sliding window with diamond mesh 920*920 (6 pieces)

Key Design Philosophy

"Flat-base + flat-top" combines practicality with innovation, offering a balance of stability, functionality, and sustainability.

1. Commercial Exhibition

Perfect for product launches and exhibitions. The double-wing folding house serves as a novel exhibition space that attracts attention.

2. Cost & Efficiency

Easy transportation fitting standard container tools reduces logistics costs. Factory prefabrication allows quick on-site assembly.

3. Eco-friendly Materials

Crafted from recyclable steel and sustainable panels, aligning with green living pursuits and environmental durability.

4. Flexible Expansion

Modular assembly for rapid creation of multi-story or large-area spaces. Ideal for residences, stores, and emergency facilities.

5. Tourism & Vacation

Unique appearance and flexible design make it an ideal choice for cozy residences in picturesque locations.

Frequently Asked Questions

How fast is the installation of the expandable container house?

The house is designed for fast installation. Due to its factory-prefabricated modular structure, it can be deployed and assembled on-site with minimal labor and time.

Is the house resistant to natural disasters?

Yes, the structure is earthquake-resistant and moisture-proof. It is built with a galvanized square tube framework (Q235) providing excellent stability and safety.

What materials are used for insulation?

We use high-quality 70mm and 50mm sandwich panels (EPS material) for the walls and roof to ensure thermal insulation and waterproof performance.

Can the electrical system be customized for my country?

Absolutely. While standard configurations follow Australian standards, circuits and sockets can be customized to meet the certification requirements of any specific country.

How is the container house transported?

The units are designed for efficient logistics. A single 40HQ shipping container can hold 2 complete units, significantly reducing transportation costs.

What applications are suitable for this expandable house?

It is highly versatile and ideal for commercial exhibitions, tourism/vacation homes, modular residences, pop-up stores, and emergency relief facilities.
