Prefabricated Modular Steel 20FT Tiny Extendable Smart Container House

Customization:	Available
After-sales Service:	1 Year Repair
Application:	Apartment

Send Inquiry

Product Description

Basic Specifications

Model NO.: LJ-004

Installation: Fast Installation

Material: Container Structure

Customized: Yes, Available

Specification: L5900 * W4800 * H2480 mm

Weight: 1950kg

Key Features

Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance

Prefabricated Modular Steel 20ft Tiny Extendable Smart Container House

Little 20ft Expandable Folding Container House Parameters
Feature	Details	Feature	Details
Expanded Size	L5900W4800H2480	House Type	One Hall
Internal Dimensions	L5460W4640H2240	Capacity	2-4 people
Folded Size	L5900W700H2480	Floor Area	27.5m²
Total Net Weight	1.95 tons	Power	12KW

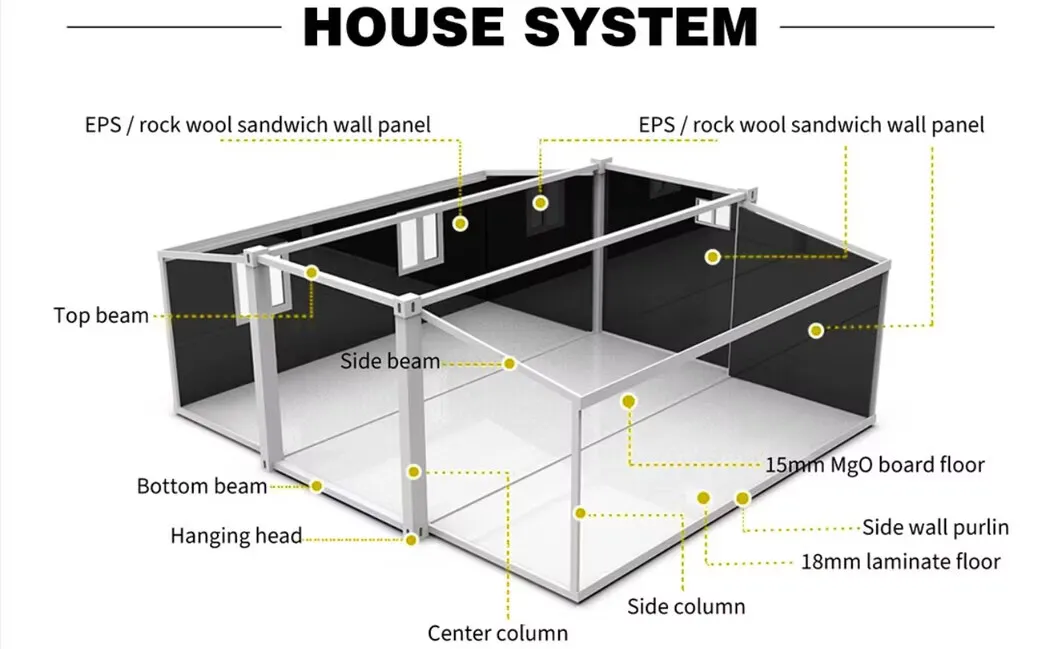

Frame & Structure
Component	Specifications
Main Frame	801002.5mm square tube (Fully galvanized)
Roof	T50mm EPS color steel plate + corrugated veneer t0.4mm
Wallboard	T65mm EPS color steel plate (Side/Front/Rear)
Ground	18mm fireproof cement fiber floor (Center) / Bamboo plywood (Sides)
Electrical	32A leakage protector, 220V, 50HZ, Standard sockets
Loading	One 40HQ container can hold 6 sets

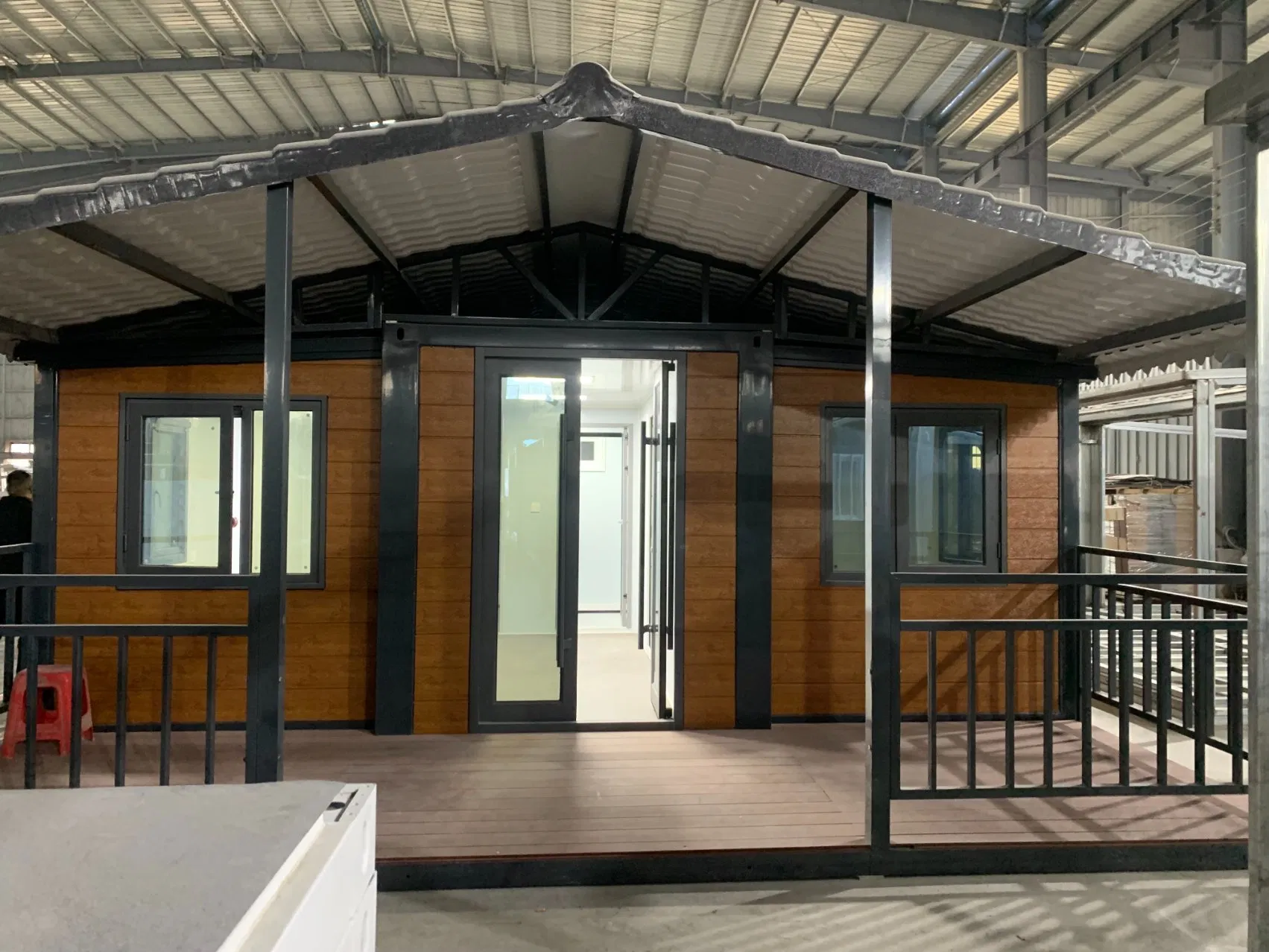

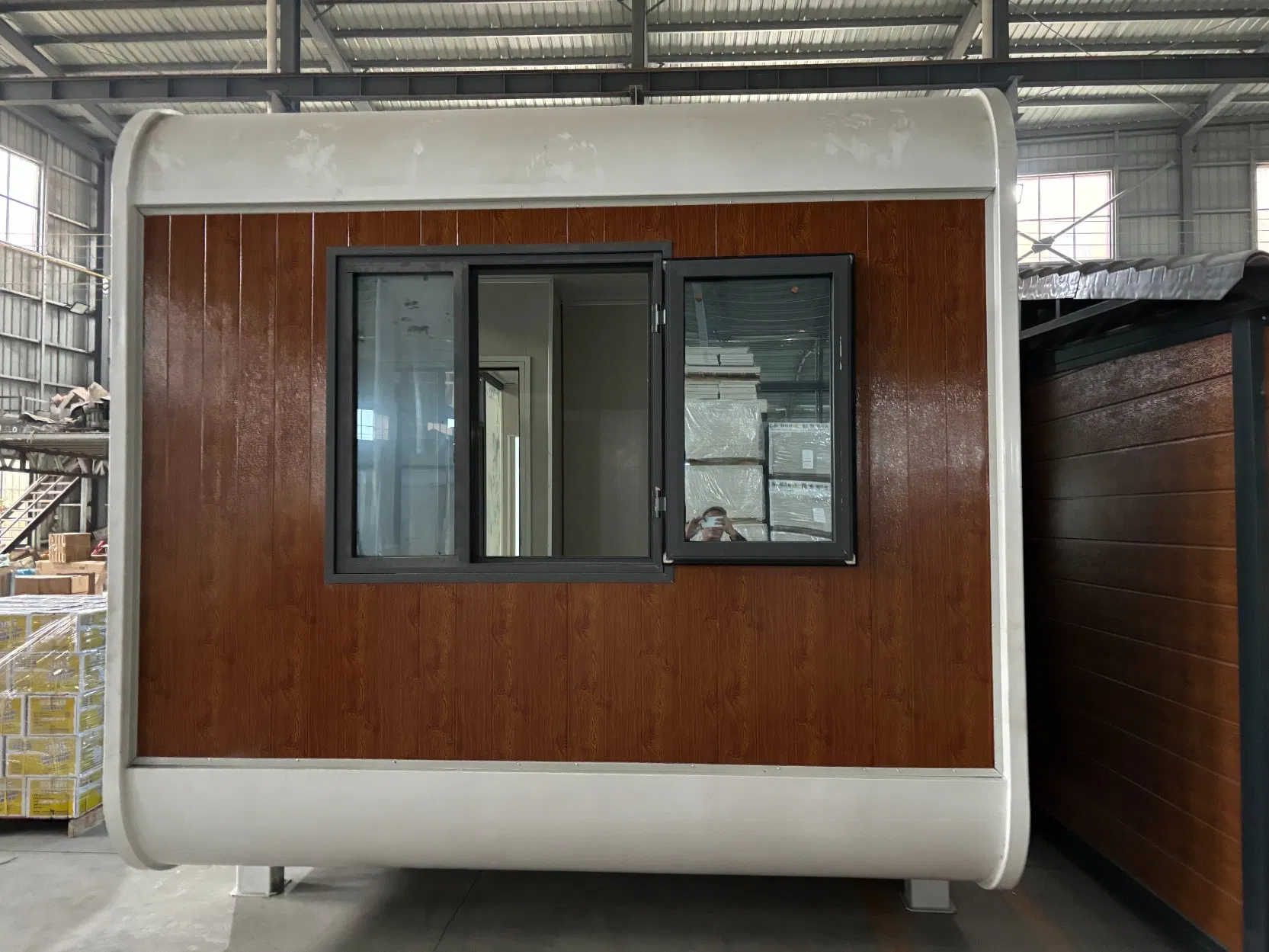

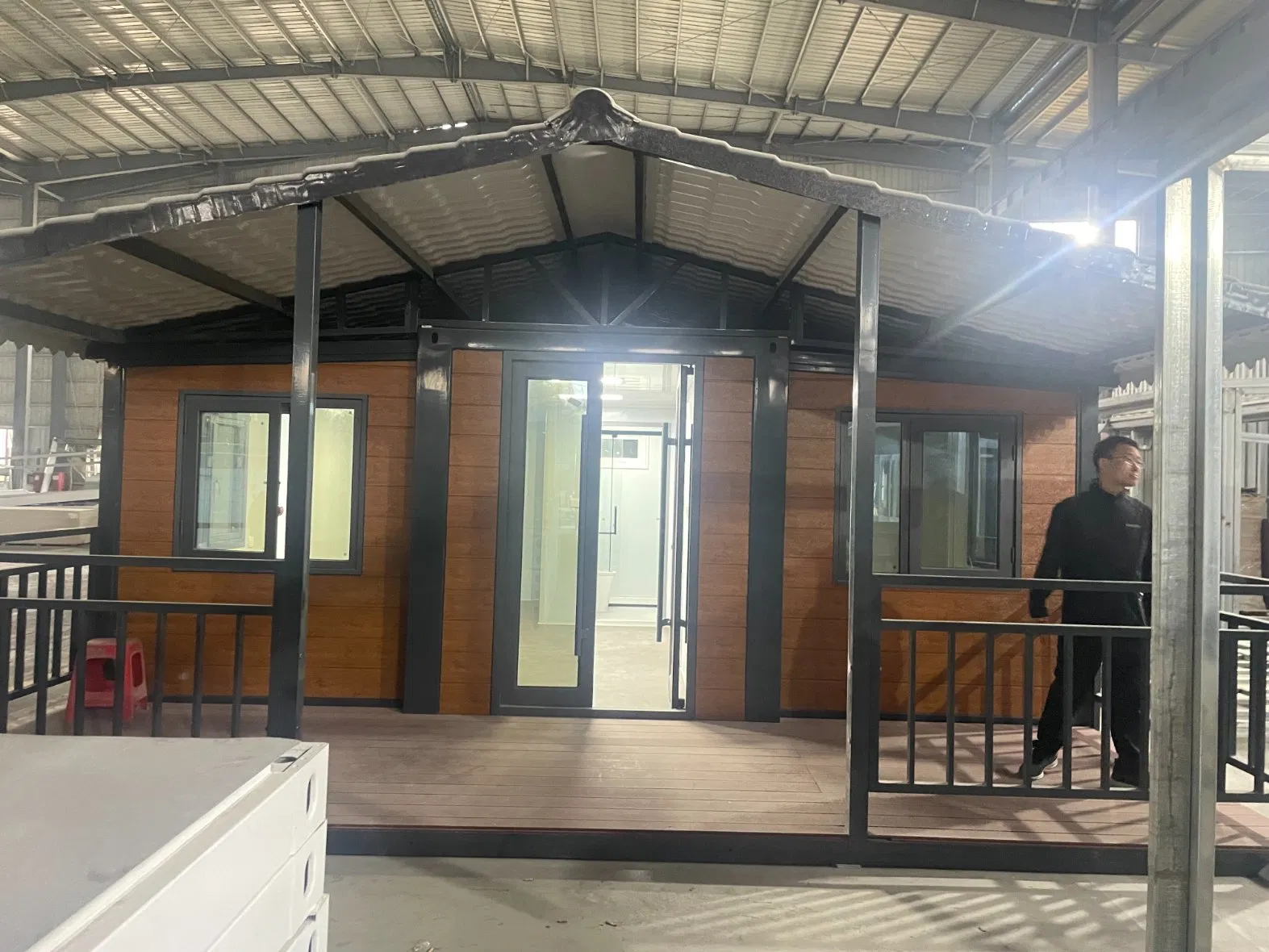

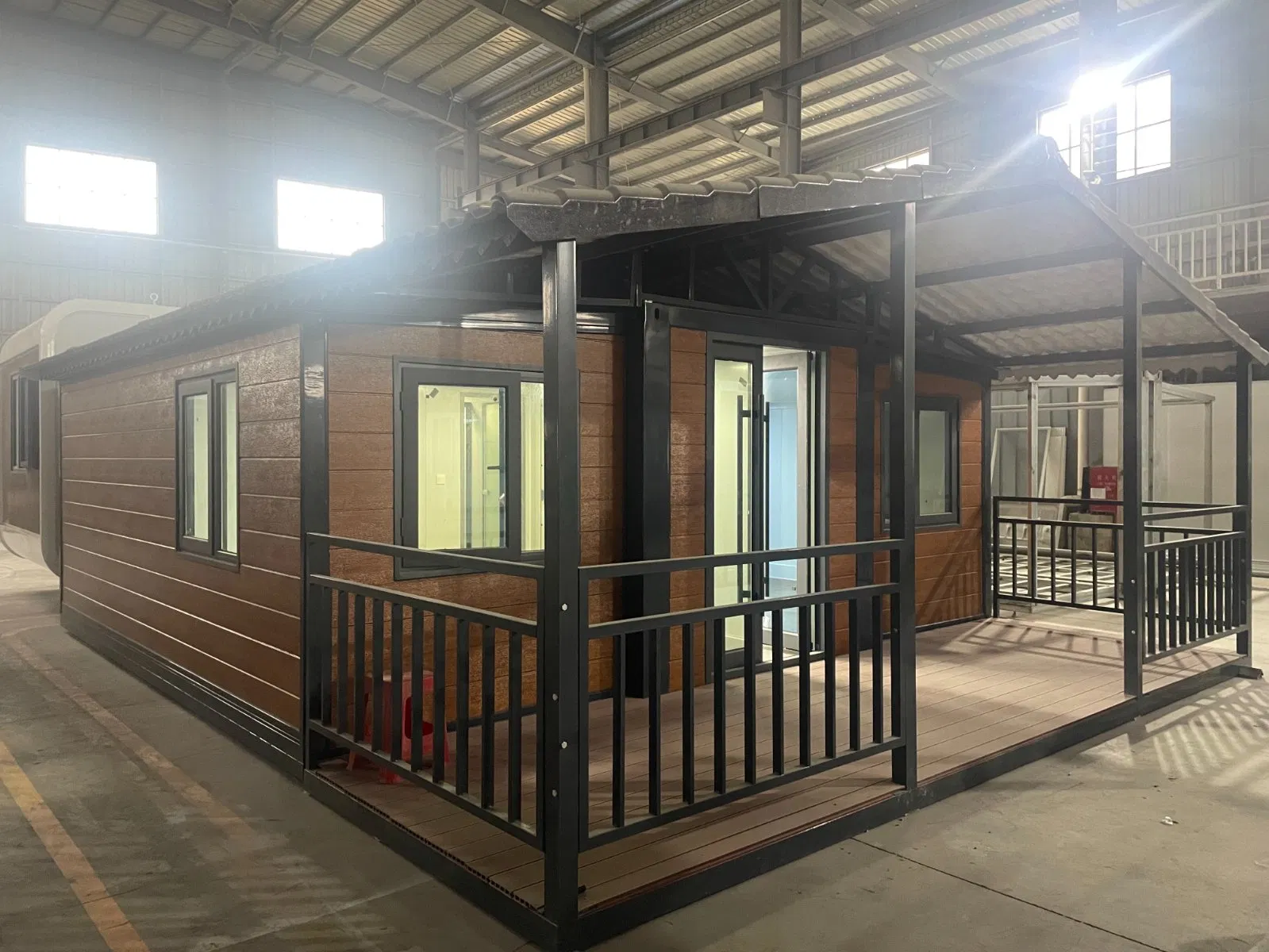

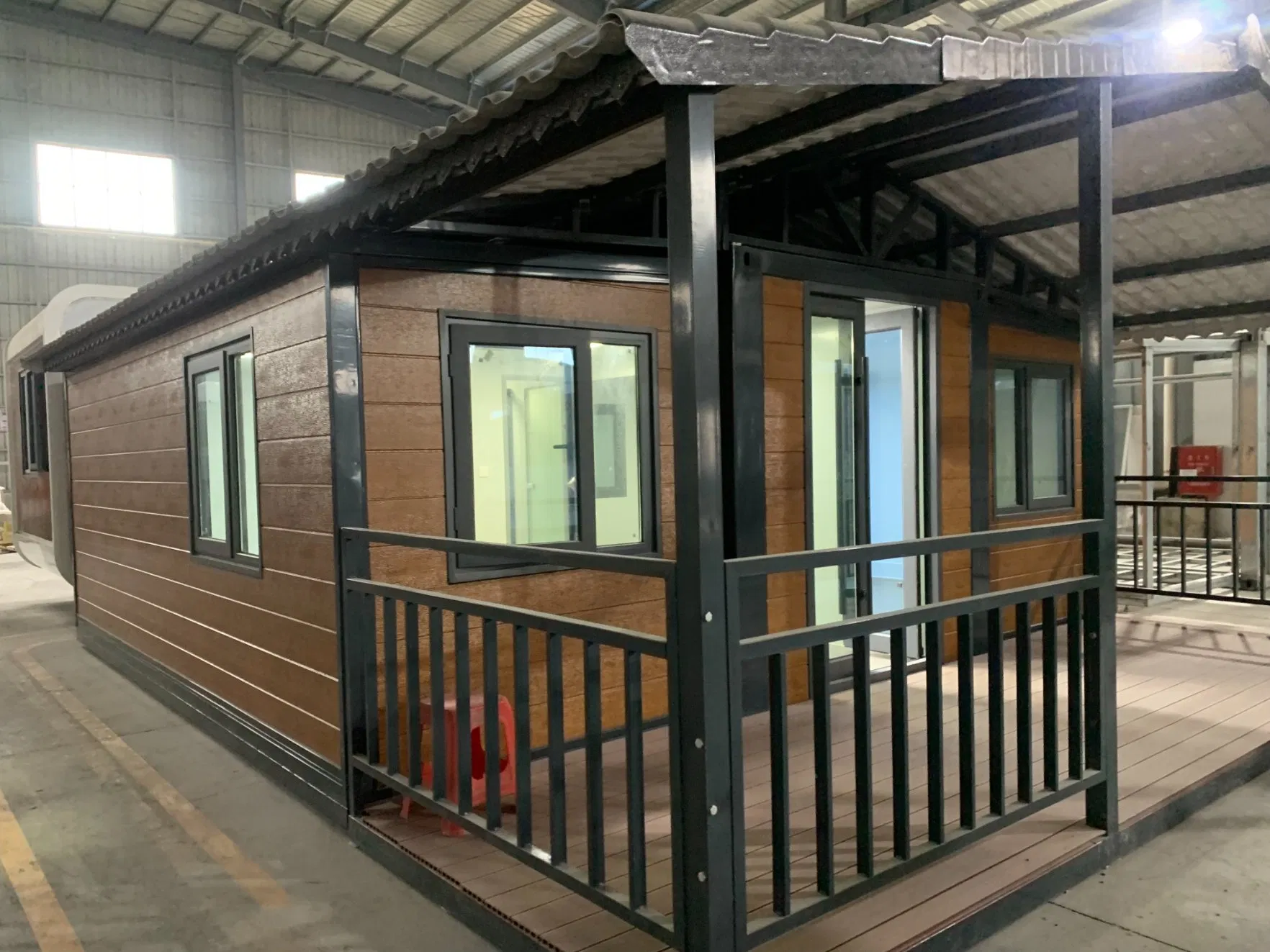

Product Gallery

Frequently Asked Questions

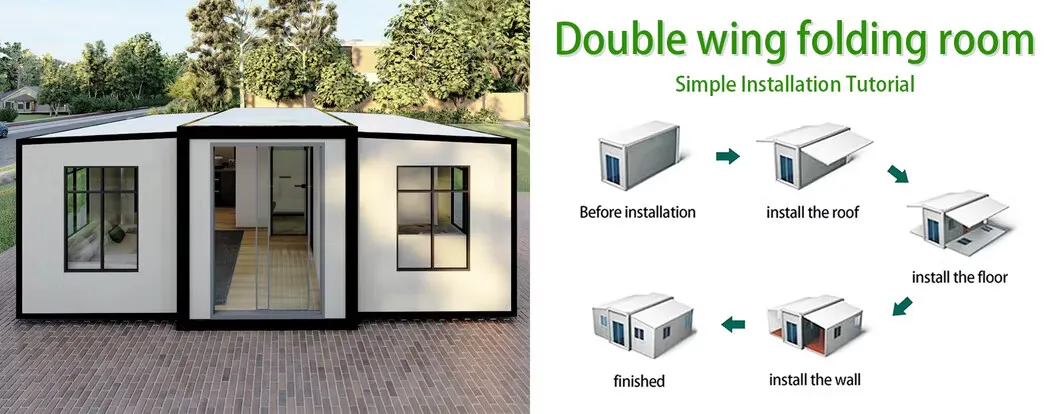

How fast can this container house be installed?

The LJ-004 model is designed for fast installation. Due to its folding and expandable modular design, it can be set up in a very short time with basic tools and minimal labor.

Is the house resistant to natural disasters?

Yes, the house is specifically engineered to be earthquake resistant and has high wind resistance, making it a safe choice for various environmental conditions.

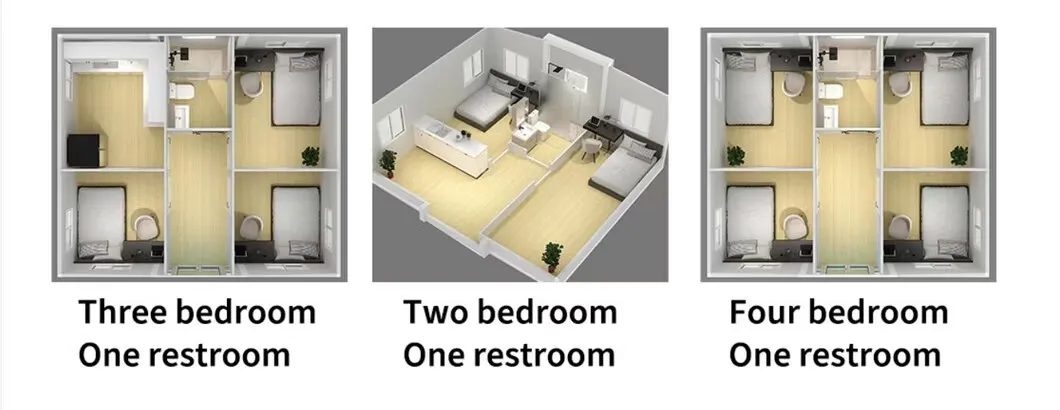

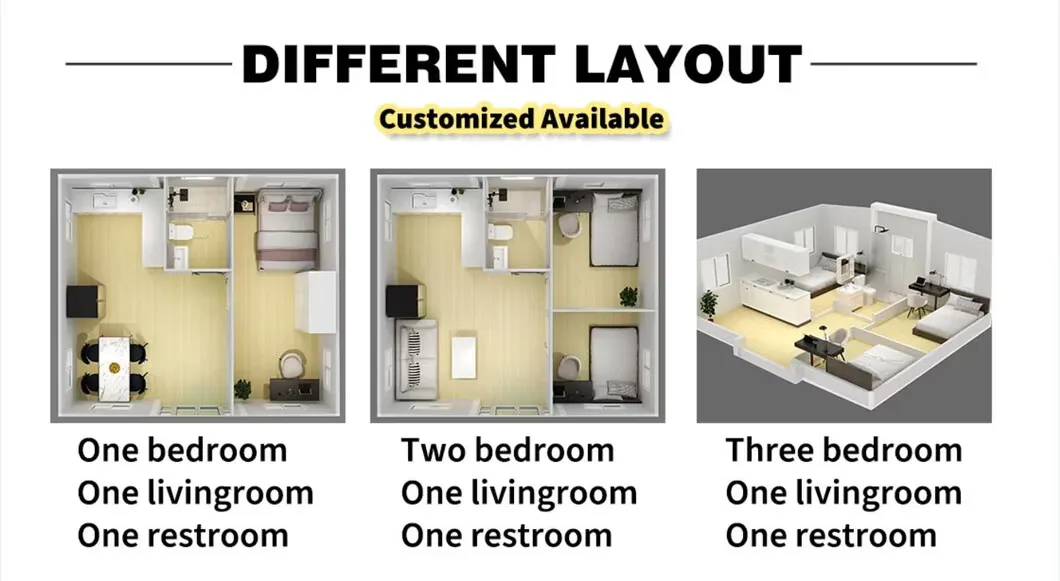

Can the interior layout be customized?

Absolutely. We offer customization for interior decoration, furniture, and color. The internal partition boards can also be configured according to your needs.

What is the insulation performance of the walls?

The house uses T65mm EPS color steel plates for walls and T50mm for the roof, providing excellent thermal insulation, moisture proofing, and waterproofing.

How many units can be shipped at once?

Thanks to its efficient folded size (L5900*W700*H2480 mm), one 40HQ shipping container can accommodate up to 6 sets, significantly reducing transport costs.

Does it come with an electrical system?

Yes, it includes a complete electrical system with a 32A leakage protector, LED lighting, and standard international sockets that can be customized to meet your local certification requirements.
